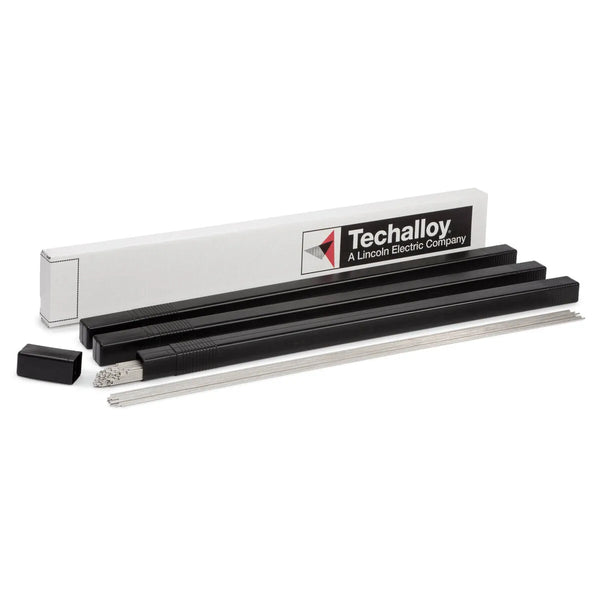

Lincoln Electric TIG Rod 5/32" – 10 lb

SKU: TG625156638
$366.84 $406.20
Lincoln Elite Dealer
Free Shipping
Lowest Price
TECHALLOY® 625 Tungsten Inert Gas Rod designed for MIG, TIG and SAW welding of nickel-chromium-molybdenum cladding alloys. This filler metal may be used for cladding and welding dissimilar base metals such as Ni-Cr-Mo alloys to stainless and carbon steels.
AWS / Classification: AWS ERNiCrMo-3
Overview
Lincoln TG625156638 Techalloy 625 TIG GTAW Welding Rod, 5/32 in,  10 lb Tube

TECHALLOY® 625 is designed to match the composition and properties of alloy 625. The Ni-Cr-Mo alloy system provides excellent resistance to oxidizing and reducing environments, with the high molybdenum content providing good stress, pitting and crevice corrosion resistance.

Features
  • Designed to match the composition and properties of Alloy 636
  • The Ni-Cr-Mo alloy system provides excellent resistance to oxidizing and reducing environments
  • The high molybdenum content provides good stress, pitting and crevice corrosion resistance
  • Most popular nickel alloy for cladding
  • Provides high temperature strength and structural stability
  • Q2 Lot® - Certificate showing actual wire composition available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.14ERNiCrMo-3
ABS AWS A5.14ERNiCrMo-3
CWB AWS A5.14ERNiCrMo-3
MIL MIL-E-21562ERN625
Classification %Al%C%Cr%Cu%Fe%Mn%Mo%P%S%Si%Ti%Nb+Ta%Ni+Co
ERNiCrMo-3 Requirement 0.40 max.0.10 max.20.0 - 23.00.50 max.5.0 max.0.50 max.8.0 - 10.00.02 max.0.015 max.0.50 max.0.40 max.3.15 - 4.1558.0 min.
Typical Result 0.08-0.10.02 max.21.7-22.40.01 max.0.3-0.40.04 max.8.6-8.80.003 max.0.001-0.0030.14 max.0.17-0.223.46-3.8664.8
LECO Diameter 5/32 in (4.0 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 5/32
Length (in) 36
