Lincoln Electric TIG Rod 1/8" – 10 lb

SKU: TG825125638
$268.32 $297.50
Lincoln Elite Dealer
Free Shipping
Lowest Price
TECHALLOY® 825 Tungsten Inert Gas Rod designed for MIG and TIG welding of nickel-chromium-molybdenum-copper alloy (ASTM B 423 having UNS number N08825) to itself.
AWS / Classification: AWS ERNiFeCr-1
Overview

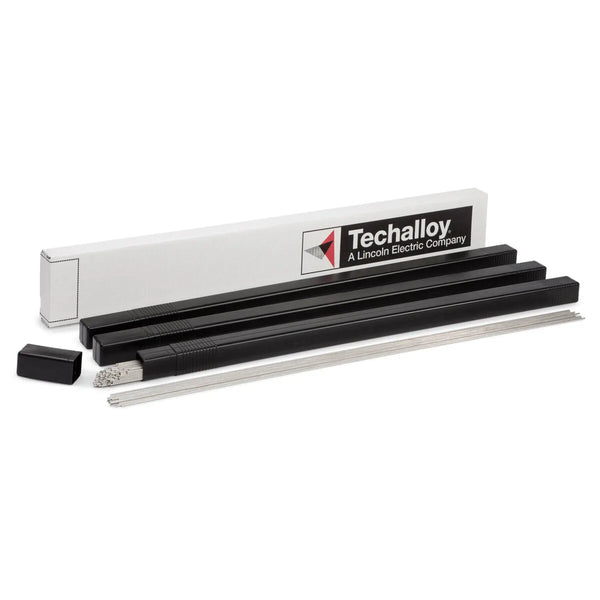

Lincoln TG825125638 Techalloy 825 TIG GTAW Welding Rod, 1/8 in,  10 lb Tube

TECHALLOY® 825 is ideal for welding the nickel-chromium-molybdenum-copper alloys. This alloy can be used for overlay cladding where similar chemical composition is required.

Features
  • Used for MIG and TIG welding of nickel-chromium-molybdenum-copper alloys
  • Can be used to overlay cladding where similar chemical composition is required
  • Q2 Lot® - Certificate showing actual wire composition available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.14ERNiFeCr-1
ABS AWS A5.14ERNiFeCr-1
CWB AWS A5.14ERNiFeCr-1
Classification %Al%C%Cr%Cu%Fe%Mn%Mo%P%S%Si%Ti%Ni+Co
ERNiFeCr-1 Requirement 0.20 max.0.05 max.19.5 - 23.51.5 - 3.022.0 min.1.0 max.2.5 - 3.50.03 max.0.03 max.0.50 max.0.6 - 1.238.0 - 46.0
Typical Result 0.05-0.080.0122.9-23.01.5-2.525.2-26.40.4-0.63.0-3.10.01-0.020.003 max.0.15-0.170.8-1.144.3
LECO Diameter 1/8 in (3.2 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 1/8
Length (in) 36
