What diameter is the Lincoln TGX062638 Techalloy X TIG GTAW Welding Rod, 1/16 in, 10 lb Tube available in, and how do I choose the right size?

TIG filler rod diameter selection: match the rod diameter approximately to the base metal thickness. 1/16 in (1.6 mm) for thin sheet, 3/32 in (2.4 mm) for medium gauge, 1/8 in (3.2 mm) for heavy plate. Using a rod that is too large requires excessive heat to melt the rod and can cause overheating of thin base metal.

What shielding gas should I use with the Lincoln TGX062638 Techalloy X TIG GTAW Welding Rod, 1/16 in, 10 lb Tube?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the Lincoln TGX062638 Techalloy X TIG GTAW Welding Rod, 1/16 in, 10 lb Tube?

The Lincoln TGX062638 Techalloy X TIG GTAW Welding Rod, 1/16 in, 10 lb Tube carries AWS ERNiCrMo-2 classification, confirming it meets the American Welding Society's chemical composition and mechanical property requirements for that filler metal category. The AWS classification appears on the rod tube label and verifies the rod's chemistry for code-compliance welding procedures (WPS/PQR).

Lincoln TGX062638 Techalloy X TIG GTAW Welding Rod, 1/16 in, 10 lb Tube

Q: What is the Lincoln TGX062638 Techalloy X TIG GTAW Welding Rod, 1/16 in, 10 lb Tube used for?

TIG (GTAW) filler rods are used in the gas tungsten arc welding process, where the welder manually feeds the rod into the weld pool while maintaining the arc with the torch. TIG welding produces the highest quality, lowest spatter welds and is the process of choice for precision work on stainless, aluminum, titanium, and exotic alloys.

SKU: TGX062638

$370.08 ~~$603.60~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

TECHALLOY® X Tungsten Inert Gas Rod designed for MIG and TIG welding of nickel-chromium-molybdenum alloys.

AWS / Classification: AWS ERNiCrMo-2

Overview

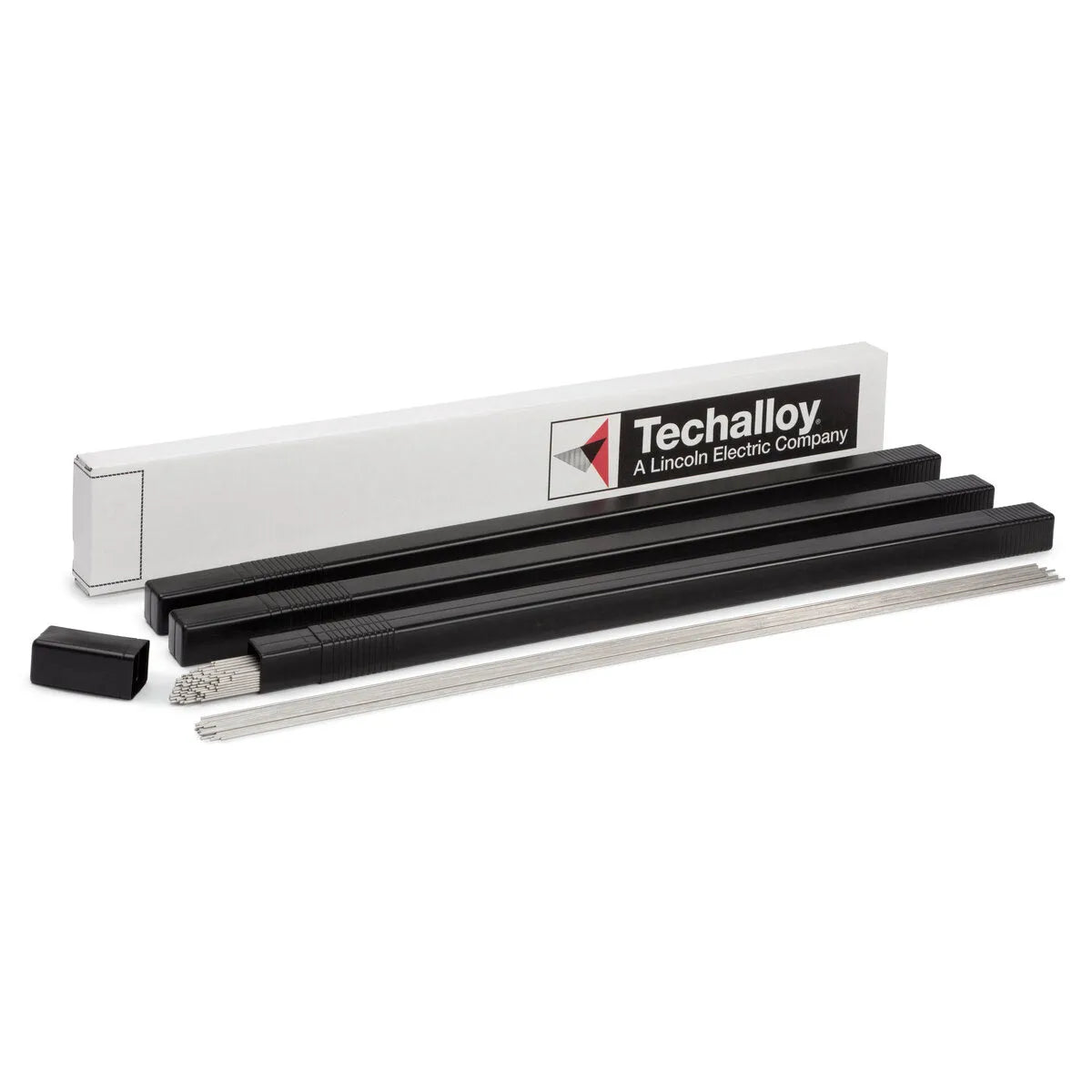

Lincoln TGX062638 Techalloy X TIG GTAW Welding Rod, 1/16 in, 10 lb Tube

TECHALLOY® X is ideal for Ni-Cr-Mo alloy system, provides excellent resistance to oxidizing and reducing environments. This alloy meets AMS 5798G chemical and tolerance requirements.

Features

The Ni-Cr-Mo alloy system provides excellent resistance to oxidizing and reducing environments
Meets AMS 5798G chemical and tolerance requirements
Q2 Lot® - Certificate showing actual wire composition available online

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.14ERNiCrMo-2
Classification	%C%Co%Cr%Cu%Fe%Mn%Mo%Ni%P%S%Si%W
ERNiCrMo-2 Requirement	0.05 - 0.150.5 - 2.520.5 - 23.00.50 max.17.0 - 20.01.0 max.8.0 - 10.0Remainder0.04 max.0.03 max.1.0 max.0.2 - 1.0
Typical Result	0.111.621.70.01 max.18.40.0 max.9.1480.010.003 max.0.10.6
LECO Diameter	1/16 in (1.6 mm)
LECO Package	(3) 10 lb Tube
Diameter (in)	1/16
Length (in)	36

Includes

(3) 10 lb Tube
