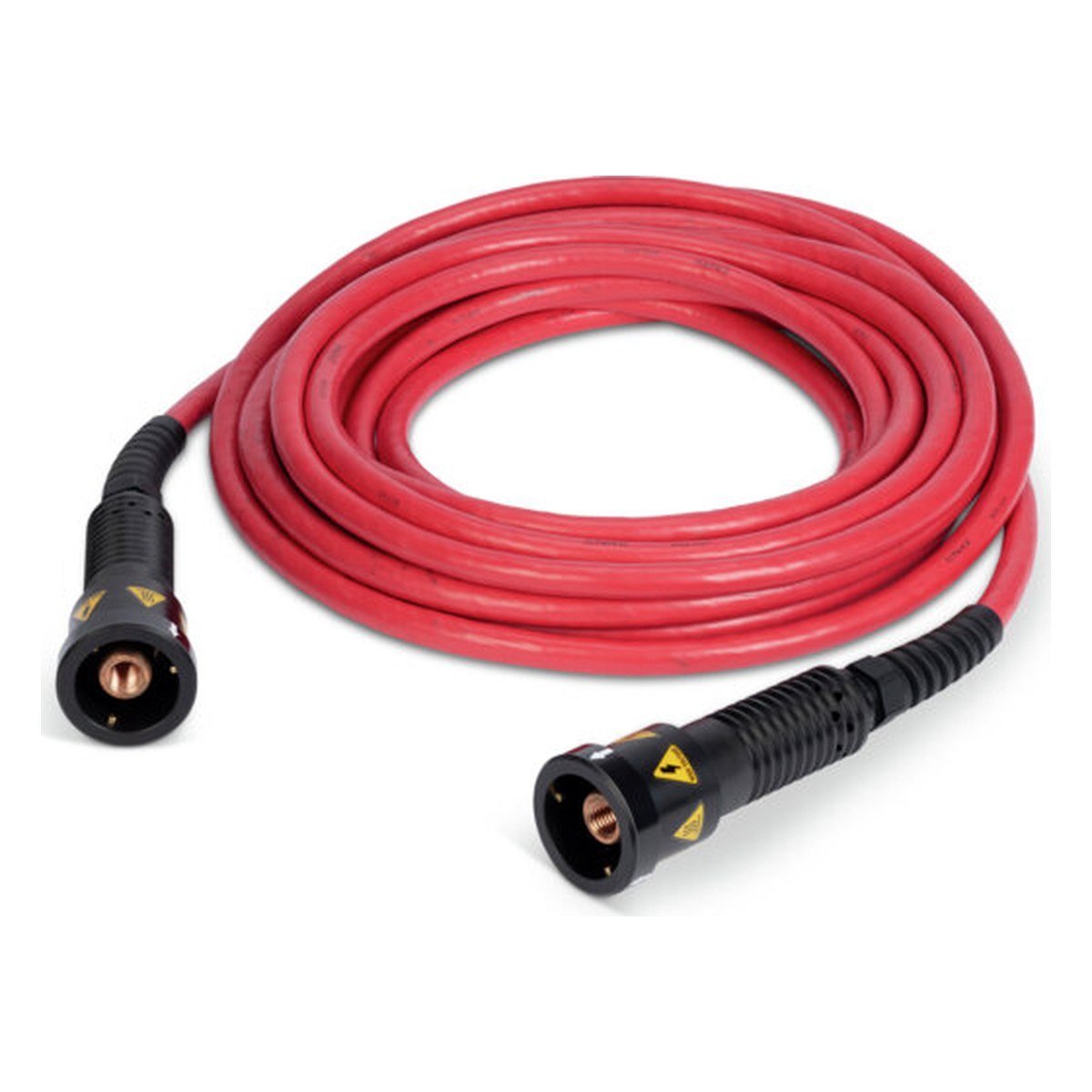

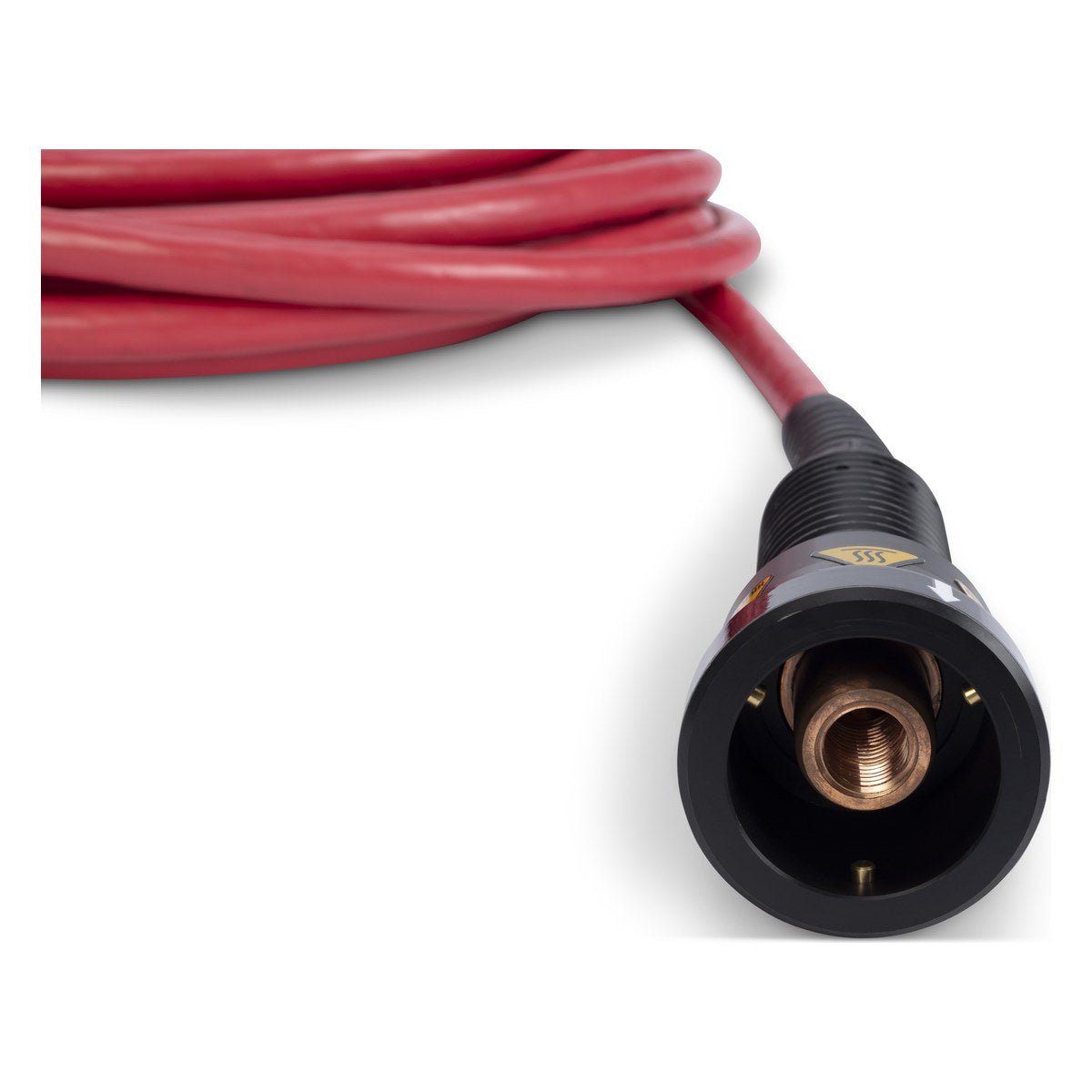

Flexible Heat Placement. The Lincoln Electric® Thermal Wave™ Preheat Heating Cable K5672-5M is a flexible 16.4 ft (5 m) induction heating cable designed for use with the Thermal Wave Induction Heating System, which delivers 50 kW of continuous output with a 100% duty cycle. Preheat Heating Cables provide flexible heat placement for weld preheat and interpass temperature control on pipe, vessel and structural fabrication applications, with a maximum temperature of 572°F (300°C) when used with appropriate insulation.
Availability: Pre-orders open October 29, 2026. Target ship date is within 60 days, with the official launch in late December 2026.
Features
- Preheat and Interpass Control - Designed for weld preheat and interpass temperature control.
- Flexible Construction - Flexible copper cable construction adapts to a wide range of part geometries.
- System Compatibility - Compatible with the Thermal Wave™ 50 kW induction heating system.
- Temperature Rating - Supports heating up to 572°F (300°C) when used with appropriate insulation.
- Tight Bend Radius - 1 in (25 mm) minimum bend radius.
- Multiple Lengths - Available in 16.4 ft (5 m), 49.2 ft (15 m) and 82.0 ft (25 m) lengths to match application requirements.
