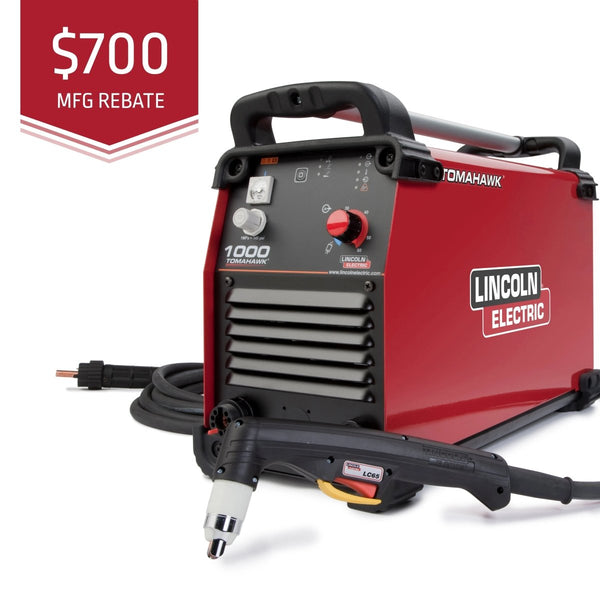

$700 End User Rebate (US Only) - See DetailsLincoln Tomahawk 1000 Plasma Cutter with 25 ft Hand Torch - K2808-1
The Lincoln Tomahawk 1000 - K2808-1 is a powerful, portable plasma cutting solution built for jobsite mobility and production-grade performance. With a 25 ft hand torch and a cutting capacity of up to 1 inch on mild steel, it’s ideal for heavy fabrication, construction, shipbuilding, and field erection applications. Designed for ease of use, the Tomahawk 1000 starts with a simple connection to compressed air—making setup fast and hassle-free. It delivers dependable arc performance with features that enhance control, reduce wear, and maximize safety in high-demand environments.
Featuring PowerConnect Technology, the unit automatically adjusts to a wide range of input voltages from 200 to 600 volts, single or three-phase. Continuous output control ensures precision cutting across varying material thicknesses. With its Touch Start system, advanced consumable design, front panel air purge control, and engine drive compatibility, the Tomahawk 1000 delivers consistent, clean cuts whether you're in the shop or out in the field. An optional machine torch is also available for CNC plasma table integration.
Key Features
- PowerConnect Technology adapts automatically to input voltages from 200–600V, single or three phase.
- Cut up to 1 inch mild steel with stable, high-performance arc control.
- Continuous output control allows precise arc focus for various material thicknesses.
- Touch Start system ensures reliable arc initiation without high frequency.
- Front panel purge control allows air pressure adjustments without striking an arc.
- Long-lasting consumables designed for cooler operation and reduced wear.
- Parts-in-Place system verifies torch and consumable installation for operator safety.
- Engine drive compatible—perfect for use with Lincoln Ranger or Vantage models in remote areas.
- Optional machine torch available for CNC plasma cutting applications.
Specifications
| Dimensions (H x W x D) | 15.2 in x 8.5 in x 22.1 in (385 mm x 215 mm x 561 mm) |
| Net Weight | 45 lbs (20.4 kg) |
| Machines Processes | Plasma Gouging Plasma Cutting |
| Output Range | 20-60A |
| Torch Included | Yes |
| Gas Supply | Air or Nitrogen |
| Gas Pressure Required | 87 - 109 psi (6.0 - 7.5 Bar) |
| Recommended Cutting Capacity (Mild Steel) (in/ft) | 3/4 in @19 ipm |
| Recommended Cutting Capacity (Mild Steel) (mm/M) | 19.01 mm @ 0.51 m/min |
| Maximum Cutting Thickness (Mild Steel) (in/ft) | 1 in @10 ipm |
| Maximum Cutting Thickness (Mild Steel) (mm/M) | 25.4 mm @ 0.30 m/min |
| Maximum Severance (Mild Steel) (in/ft) | 1 1/4 in @ 5 ipm |
| Maximum Severance (Mild Steel) (mm/M) | 31.75 mm @ 0.13 m/min |
| Typical Application | Construction Automotive Construction & Field Erection General Fabrication Heavy Fabrication Marine Fabrication & Repair Oil & Gas Shipbuilding Structural Fabrication |
| Warranty | 3 Year on Machine, 1 Year on Torch |
