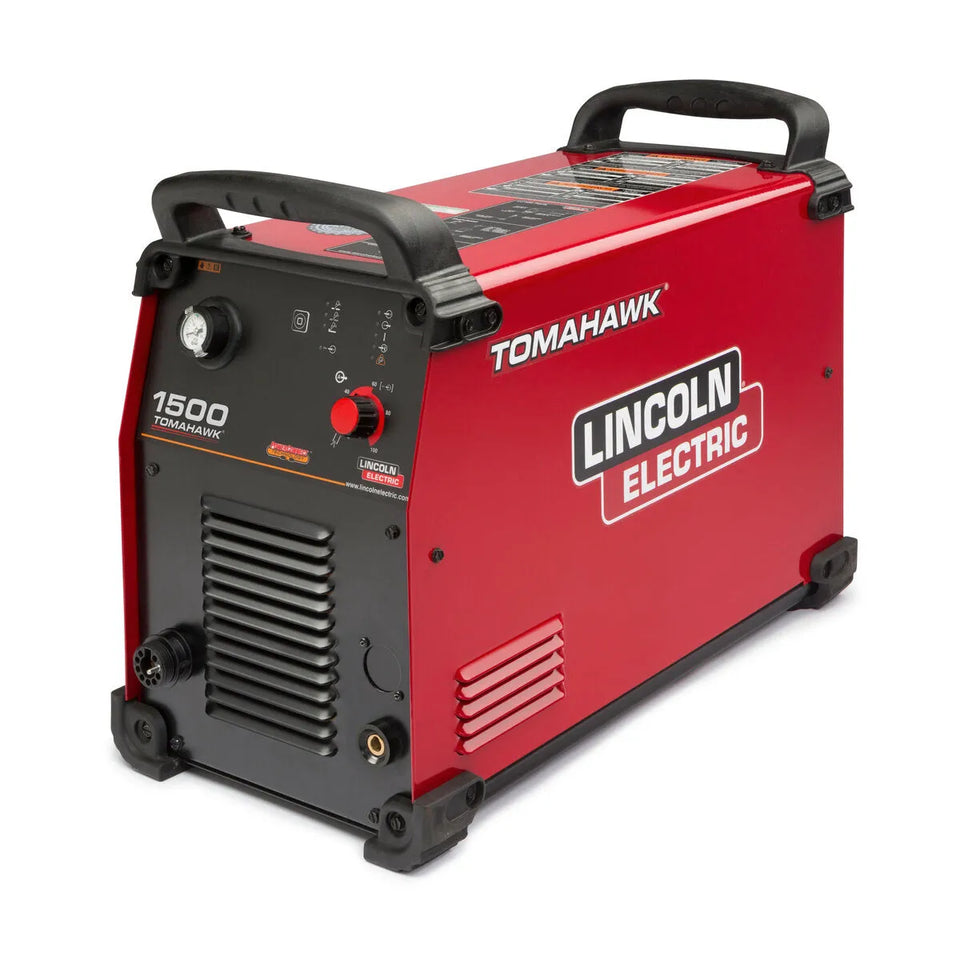

The Lincoln Tomahawk 1500 plasma cutting power source represents the pinnacle of industrial plasma cutting technology, delivering exceptional performance for demanding production environments and precision fabrication applications. This heavy-duty system provides a substantial 100-amp output at 60% duty cycle, enabling faster cutting speeds and superior cut quality compared to conventional oxy-fuel methods. Built on Lincoln's proven inverter platform, the Tomahawk 1500 delivers consistent, reliable performance for cutting materials up to 1-1/4 inches thick, making it the ideal solution for heavy fabrication, production cutting operations, and applications requiring clean, precise cuts in various metals.
At the core of the Tomahawk 1500 is Lincoln's advanced constant current technology that delivers precise cutting power with continuous output control from 20-100 amps, enabling operators to optimize performance for materials of varying thickness. The innovative Touch Start system ensures reliable plasma arc initiation without high-frequency interference that could affect nearby electronic equipment, while eliminating many of the failure problems associated with traditional high-frequency start systems. The sophisticated Parts-in-Place safety feature automatically detects proper installation of consumables, preventing operation with worn or improperly installed parts to protect both the operator and the equipment.
Designed for versatility and reliability in demanding industrial environments, the Tomahawk 1500 includes an integrated air regulator and pressure gauge for precise control of cutting parameters. The system's IP23 rating ensures reliable operation in both indoor and outdoor environments, providing the flexibility needed for diverse applications. With multi-voltage input capability supporting single and three-phase power across various voltage ranges, the Tomahawk 1500 adapts to different power infrastructures while maintaining consistent performance. This power source (torch sold separately) delivers exceptional value for professional fabricators, production facilities, and industrial operations requiring optimal cut quality, faster cutting speeds, and reliable performance for precision cutting and gouging applications in materials ranging from thin sheet metal to heavy plate.
Key Features
- Powerful 100-amp output at 60% duty cycle enabling faster cutting speeds and superior cut quality.
- Advanced inverter-based constant current technology delivering optimal performance for precision cutting applications.
- Reliable Touch Start system eliminating high-frequency interference and associated failure problems.
- Parts-in-Place safety feature ensuring proper installation of consumables before operation.
- Integrated air regulator and pressure gauge for precise control of cutting parameters.
- Multi-voltage input capability supporting single and three-phase power across various voltage ranges.
- Continuous output control from 20-100 amps for optimized cutting across various material thicknesses.
- IP23 rating ensuring reliable operation in both indoor and outdoor environments.
- Cutting capacity up to 1-1/4 inches thick for demanding industrial applications.
Specifications
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) |
200-208V/1/50/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) |
60A/140V/100% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) |
80A/140V/60% |
| Phase 1: Input Current at Max Rated Ouput #1 (Current) |
71A |
| Phase 3: Rated Output #1C (Current/Voltage/Duty Cycle) |
100A/140V/60% |
| Dimensions (H x W x D) |
17.9 in x 301 in x 25.4 in (455 mm x 645 mm) |
| Net Weight |
47.628 lbs (47.628 kg) |
| Machines Processes |
Plasma Gouging
Plasma Cutting |
| Number of Operators per Machine |
1 |
| Input Phase |
50/60 |
| Output Range |
20-100A |
| Polarity |
DC |
| Output Range by Mode |
20A-100A |
| Work Lead Connector Type |
Dinse |
| Work Cable Length |
15 FT |
| Plasma Machines Process |
Cutting
Gouging |
| Torch Included |
No |
| Gas Supply |
Air or Nitrogen |
| Gas Pressure Required |
87-109 PSI (6.0 - 7.5 Bar) |
| Recommended Cutting Capacity (Mild Steel) (in/ft) |
3/4 in. |
| Maximum Severance (Mild Steel) (in/Ft) |
1 1/2 in. |
| Typical Application |
Construction |
| Warranty |
3 Year on Machine, 1 Year on Torch |
