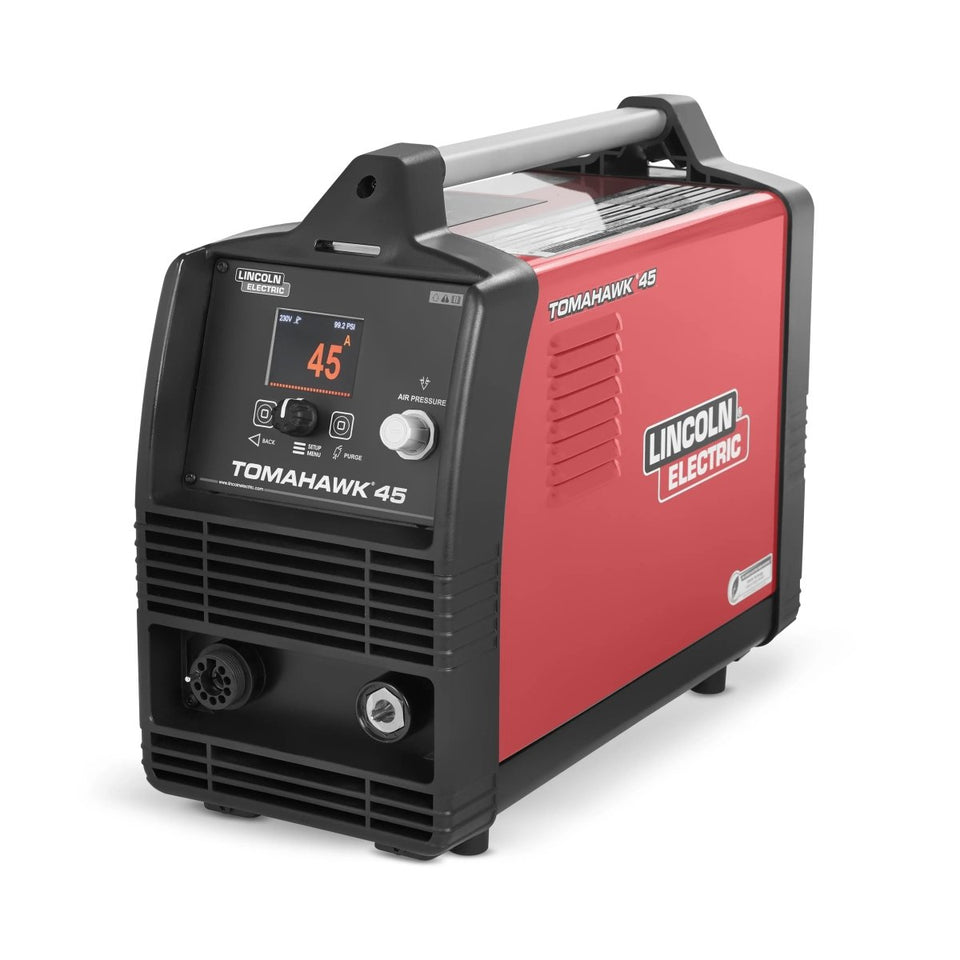

The Tomahawk 45 plasma cutting system is versatile and portable, weighing only 28 lbs. You can easily carry it to any job site and start cutting projects. This system can handle everything, whether cutting through thick metal or working with expanded metal. With its 45A capability, you can tackle even the most challenging cutting tasks. Tomahawk initiates the plasma arc with a simple yet reliable touch-start mechanism that eliminates many failure problems associated with high-frequency start systems. The control system includes a Parts-in-Place™ feature to ensure consumables are in place before initiating the cutting or gouging process. Hook up the compressed air, grab the torch, and you're all set.
The Lincoln Tomahawk 45 plasma cutter delivers professional-grade performance in a lightweight, highly portable package that's perfect for contractors, fabricators, and maintenance professionals. This versatile cutting system features advanced plasma technology that provides clean, precise cuts on various metals including mild steel, stainless steel, and aluminum. The intuitive 2.8-inch LCD screen provides a user-friendly interface with clear parameter displays, allowing operators to quickly adjust settings for optimal cutting performance across different materials and thicknesses. With continuous output control, users can fine-tune the arc characteristics to achieve the best cutting quality for specific applications.
Engineered for maximum durability and efficiency, the Tomahawk 45 incorporates Lincoln Electric's proven Touch Start technology that ensures reliable arc initiation without high-frequency interference that can damage sensitive electronics nearby. The Rapid Arc Restrike feature enables seamless cutting through expanded metal and grated surfaces without interruption, significantly improving productivity on complex projects. Designed with operator safety in mind, the integrated Parts-in-Place system prevents operation when consumables aren't properly installed, protecting both the equipment and the user. The Tomahawk 45 is fully compatible with Lincoln Electric recommended engine-driven welder/generators, making it the ideal solution for remote job sites without access to conventional power sources. The system includes numerous torch consumables for various hand-held applications, ensuring versatility across different cutting requirements while extending operational life and reducing long-term ownership costs.
- 2.8 in. LCD Screen – For an easier and user friendly user interface.
- Lightweight and Portable – Easily carried by one person.
- Continuous Output Control – Focus the arc for different material thickness.
- Touch Start System – Reliable plasma arc initiation without high frequency.
- Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
- Cool Operation, Long Consumable Life - Numerous torch consumables for a wide range of hand-held applications.
- Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
- Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations.
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 30A/92V/100% |
| Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) | 40A/96V/60% |
| Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) | 45A/98V/45% |
| Phase 1: Input Current at Max Rated Output #1 (Current) | 23A |
| Dimensions (H x W x D) | 15.2 in x 8.5 in x 18.9 in (385 mm x 215 mm x 480 mm) |
| Net Weight | 34 lbs (15.42 kg) |
| Machines Processes | Plasma Gouging Plasma Cutting |
| Output Range | 10-40A |
| Plasma Machines Process | Cutting Gouging |
| Torch Included | Yes |
| Gas Supply | Air or Nitrogen |
| Gas Pressure Required | 80 - 110 psi (6 -7.5 Bar) |
| Recommended Cutting Capacity (Mild Steel) (in/ft) | 1/2 in @ 20 ipm |
| Recommended Cutting Capacity (Mild Steel) (mm/M) | 12.7 mm. @ .51 m/min |
| Maximum Cutting Thickness (Mild Steel) (in/Ft) | 5/8 in @ 12 ipm |
| Maximum Cutting Thickness (Mild Steel) (mm/M) | 15.9 mm. @ .30 m/min |
| Maximum Severance (Mild Steel) (in/Ft) | 3/4 in @ 8 ipm |
| Maximum Severance (Mild Steel) (mm/M) | 19.1 mm. @ .20 m/min |
| Typical Application | Construction Automotive General Fabrication Marine Fabrication & Repair Structural Fabrication |
| Warranty | 3 Year on Machine, 1 Year on Torch |
