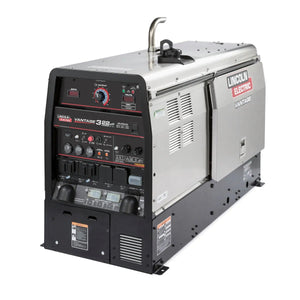

Lincoln Vantage 322 Engine-Driven Welder/Generator Kubota

Product Overview

The Lincoln Electric Vantage® 322 is a compact, multi-process diesel engine-driven welder/generator designed for construction, pipeline work, and rental fleet applications. Built for reliability and ease of use, this machine delivers excellent arc performance, versatile welding capabilities, and dependable generator power in a smaller, more portable package. :contentReference[oaicite:0]{index=0}

Powered by a Tier 4 Final Kubota® diesel engine, the Vantage® 322 provides up to 300 amps of continuous welding output along with integrated AC generator power, making it an ideal solution for contractors and field welders who need performance and mobility. :contentReference[oaicite:1]{index=1}

Key Features

Compact and Portable Design

• Compact size fits easily on most service trucks
• Lightweight design for improved mobility
• Stainless steel enclosure for durability and corrosion resistance

Reliable Diesel Engine Performance

• Kubota® Tier 4 Final diesel engine for fuel efficiency and long life
• 22 HP, 4-cylinder engine with smooth operation
• Large 20-gallon fuel tank for extended run time

Multi-Process Welding Capability

• Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), TIG (GTAW)
• Dedicated arc gouging mode for heavy material removal
• Touch Start TIG® for easy arc starts without high-frequency equipment

Strong Welding Output

• 300A at 100% duty cycle (IEC rated)
• Up to 400 amps maximum output
• Optimized downhill pipe mode for fast, efficient pipe welding

Integrated Generator Power

• Up to 12.5 kW peak (11 kW continuous) 3-phase power
• Up to 11.5 kW peak (10 kW continuous) single-phase power
• Power tools, plasma cutters, and jobsite equipment while welding

Advanced Arc Performance

• Lincoln Electric Chopper Technology® for smooth, stable arc control
• Low spatter and excellent bead appearance
• Hot start feature for improved arc starts and restrikes

Jobsite Durability and Serviceability

• Stainless steel panels and rugged enclosure
• Easy-access service door and maintenance points
• Engine protection system with automatic shutdown

Enhanced Safety Features

• VRD™ (Voltage Reduction Device) for safer operation in wet conditions
• Sealed GFCI receptacles for improved electrical safety
• Circuit breaker protection for all outputs

Processes

• Stick (SMAW)
• MIG (GMAW)
• Flux-Cored (FCAW)
• TIG (GTAW)
• Arc Gouging

Applications

• Construction and field fabrication
• Pipeline welding and repair
• Maintenance and service work
• Rental fleet equipment
• General industrial welding

Available Packages

The Vantage® 322 is available in multiple Ready-Pak® configurations that include trailers, cables, electrode holders, and work clamps, allowing you to choose a complete, job-ready setup based on your application needs. :contentReference[oaicite:2]{index=2}

Why Choose the Vantage® 322?

The Vantage® 322 delivers the perfect balance of power, portability, and value. With multi-process welding capability, reliable diesel performance, and built-in generator power, it’s an ideal choice for professionals who need a dependable machine for everyday field work without stepping up to a larger, higher-output unit.
