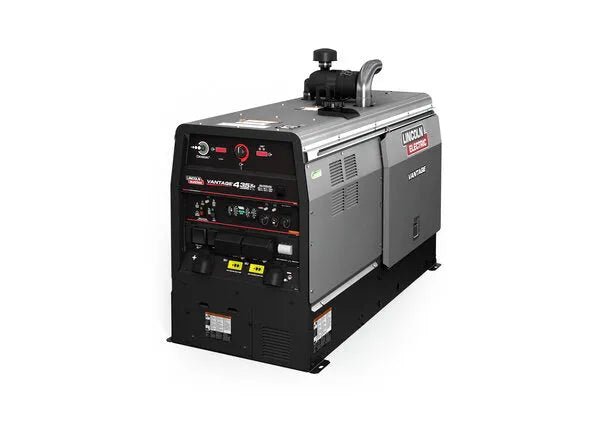

The Lincoln Vantage 435X Ready-Pak 1 - K4107-3-RP1 is a field-proven engine-driven welder and power generator built for professionals tackling demanding industrial projects. Delivering up to 520 amps of welding output and 17 kW of continuous auxiliary power, it is ideal for carbon arc gouging, advanced pulse welding, and multi-process work across a variety of jobsite conditions. Powered by a naturally aspirated Deutz diesel engine and enhanced by Lincoln’s Chopper Technology, this machine ensures smooth starts, clean welds, and reliable operation in rugged environments.
Equipped with CrossLinc and ArcLink communication technology, the Vantage 435X allows welders to adjust voltage and current remotely at the arc—boosting safety and productivity by reducing trips back to the machine. The unit includes pulse welding for better control in out-of-position applications and supports Stick, MIG, TIG, and Flux-Cored processes with excellent arc stability. The Ready-Pak 1 configuration arrives preassembled with a trailer, light and fender kit, cable rack, and essential welding accessories—making it truly job-ready out of the box.
- Vantage 435X (Deutz) Ready-Pak 1
- Medium Two-Wheel Welder Trailer | K2636-1
- Weld Cable - Tweco Male & Female (3/0, 600A, 60%) - 50 ft (15.3 m) | K2485-3
- Weld Cable - Tweco Male & Open End (3/0, 600A, 60%) - 10 ft (3 m) | K2483-3
- Weld Cable - Tweco Male & 0.53 Lug (3/0, 600A, 60%) - 50 ft (15.3 m) | K2484-3
- Fender and Light Kit for Welder Trailers | K2639-1
- Insulated CT40FS Female Connector | K2487-1
- Cable Rack for Welder Trailers | K2640-1
- GC-500 Work Clamp - 500A, 60% Duty Cycle | K910-2
- EH-405HD Electrode Holder - 400A, 60% Duty Cycle | K909-8
- Delivers up to 520 amps of welding current with 17 kW of continuous generator power.
- Supports Stick, TIG, MIG, Pulsed MIG, Flux-Cored, and Arc Gouging processes.
- CrossLinc and ArcLink allow full parameter control at the arc via standard weld cables.
- Chopper Technology provides smoother arc starts and reduced spatter.
- Pulse welding modes optimize control in out-of-position or low heat input jobs.
- Deutz 4-cylinder diesel engine delivers 34.8 hp with EPA Tier 4 Final compliance.
- Preassembled Ready-Pak 1 includes trailer, cable rack, light kit, and fenders.
- Handles heavy-duty gouging with up to 3/8 in. carbon rods.
- Built tough for jobsite durability in harsh conditions.
| Dimensions (H x W x D) | 39.1 in x 28.4 in x 65.1 in (994 mm x 721 mm x 1654 mm) |
| Net Weight | 1998 lbs (906 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 70 Peak OCV @ 1800 RPM |
| IEC Rating | 400A / 36V / 100% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 30 – 525 A Downhill Pipe (CC): 40 – 350 A Touch Start TIG: 20 – 350 A CV-Wire: 10 – 45 V Arc Gouging: 60 – 525 A |
| Rated Gouging Carbon Diameter | 3/8" (9.5 mm) |
| Machines Communication Technology | CrossLinc ArcLink |
| Single Phase Auxiliary Output | 11,000 Watts Continuous, 120/240V |
| Three Phase Auxiliary Output | 17,000 Watts Continuous, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Deutz D2.9L4 |
| Engine Description | 4 Cylinder Naturally Aspirated Water Cooled Diesel Engine |
| Engine Horsepower | 34.8 hp (25.9 kW) |
| Engine Block Size & Displacement | 178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1500 |
| Fuel Tank Size (US gal.) | 20 US gal. |
| Fuel Tank Size (L) | 75.7 L |
| Oil Capacity (qts.) | 9.0 qts. |
| Oil Capacity (L) | 8.5 L |
| Coolant Capacity (US gal.) | 2.0 US gal. |
| Coolant Capacity (L) | 7.6 L |
| Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
