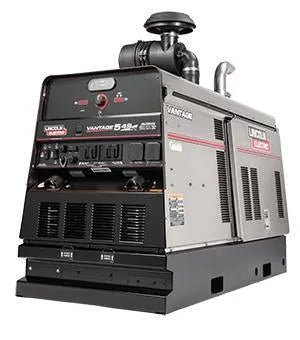

Lincoln Vantage 549 Engine Driven Welder Deutz - K3534-1
The Lincoln Vantage 549 (K3534-1) delivers exceptional power and performance in a rugged, industrial-grade engine-driven welder/generator designed for the most demanding applications in heavy equipment repair, railroad maintenance, energy utility service, and construction environments. This professional-grade system provides true 500-amp multi-process welding capability, delivering an impressive 525 amps at 41VDC with 100% duty cycle for continuous operation in extreme conditions. Powered by a robust 49.4 HP Deutz TD2.9L4 turbocharged diesel engine that meets all EPA Tier 4 Final emissions regulations, this powerful unit offers unmatched reliability with superior cold-weather starting characteristics and compliance with all state and federal non-road diesel engine emissions standards, eliminating concerns about cross-state transportation restrictions or additional compliance fees.
Engineered for exceptional versatility, the Vantage 549 supports a comprehensive range of welding processes including GMAW (MIG), GMAW-P (Pulsed MIG), FCAW (Flux-Cored), CAG (Carbon Arc Gouging), SAW (Submerged Arc), GTAW (TIG), and SMAW (Stick) welding. The system's advanced communications protocol facilitates seamless integration with sophisticated wire feeders and enables specialized welding processes for optimal results across diverse applications. With the capacity to handle aggressive carbon arc gouging using electrodes up to 3/8 inch (9.5mm) in diameter, this powerful machine excels in heavy-duty repair and fabrication operations where material removal and weld preparation are critical requirements. Beyond its impressive welding capabilities, the Vantage 549 functions as a robust power generation solution with 19,000 watts of three-phase auxiliary power for operating pumps, plasma cutters, or additional inverter welders in multi-operator scenarios, plus 11,000 watts of single-phase power for tools, lights, and other jobsite equipment.
The Vantage 549 incorporates numerous design elements that enhance reliability and durability in challenging field conditions. All-copper windings in both the rotor and stator with high-quality insulation ensure extended operational life, while the durable all-aluminum radiator provides efficient cooling even in extreme temperatures. Critical electronic components receive additional protection through potting of PC boards, effectively sealing them against moisture, dust, and vibration, while corrosion-resistant stainless steel paneling protects the exterior against harsh environmental conditions. The dependable Deutz diesel engine features a 25-gallon (94.6L) fuel tank for extended runtime between refueling, complemented by a 2.25-gallon (8.5L) oil capacity that supports extended service intervals. With its comprehensive feature set, exceptional power output, advanced multi-process capabilities, and industry-leading durability, the Lincoln Vantage 549 represents the ultimate solution for professionals requiring maximum performance, reliability, and versatility in demanding industrial applications.
Key Features
- Powerful Performance - 500A machine capable of 525 amps at 41VDC with a 100% duty cycle, with 19,000 watts of 3-phase auxiliary power and 11,000 watts of single-phase power
- Versatile Multi-Process Capability - True 500A multi-process machine supporting GMAW, GMAW-P, FCAW, CAG, SAW, GTAW, and SMAW welding processes
- Aggressive Gouging Capacity - Capable of carbon arc gouging with electrodes up to 3/8 in. (9.5mm) for heavy material removal and weld preparation
- Advanced Communications - Sophisticated protocol facilitates specialized welding processes and seamless integration with wire feeders
- Enhanced Reliability - All-copper windings, durable aluminum radiator, potted PC boards, and corrosion-resistant stainless steel paneling for maximum durability
- Emissions Compliant - 49.4 HP Deutz TD2.9L4 engine meets all EPA Tier 4 Final standards, eliminating cross-state transportation restrictions
- Cold Weather Performance - Engine specifically designed for reliable starting in challenging cold-weather conditions
Specifications
| Engine Model | Deutz TD2.9L4 Diesel Engine EPA Tier 4 Final Compliant |
| Description | 4 cyl. 49.4 HP (37 kW) Turbocharged Liquid-Cooled Diesel Engine |
| Speed (RPM) | High Idle: 1800 Low Idle: 1525 Full Load: 1800 |
| Displacement | 178 cu in (2.9L) Bore x Stroke 3.62 x 4.33 in (92 x 110 mm) |
| Starting System | 12VDC Battery and Starter w/ Automatic Glow Plugs |
| Capacities | Fuel: 25 U.S. gal (94.6L) Oil: 2.25 U.S. gal (8.5L) |
| Typical Application | Heavy Equipment Repair Railroad Repair Energy Utility Repair Construction General Fabrication |
| Welding Processes | True 500A multi-process machine capable of GMAW, GMAW-P, FCAW, CAG, SAW, GTAW, and SMAW |
| Communication | Advanced communications protocol facilitates welding processes and wire feeders |
| Compatible Equipment | Wire Feeder Ironworker Wire Feeder Remote Output Control 125ft. Remote Output Control 125ft. w/115VAC Receptacle Large Welder Trailer |
