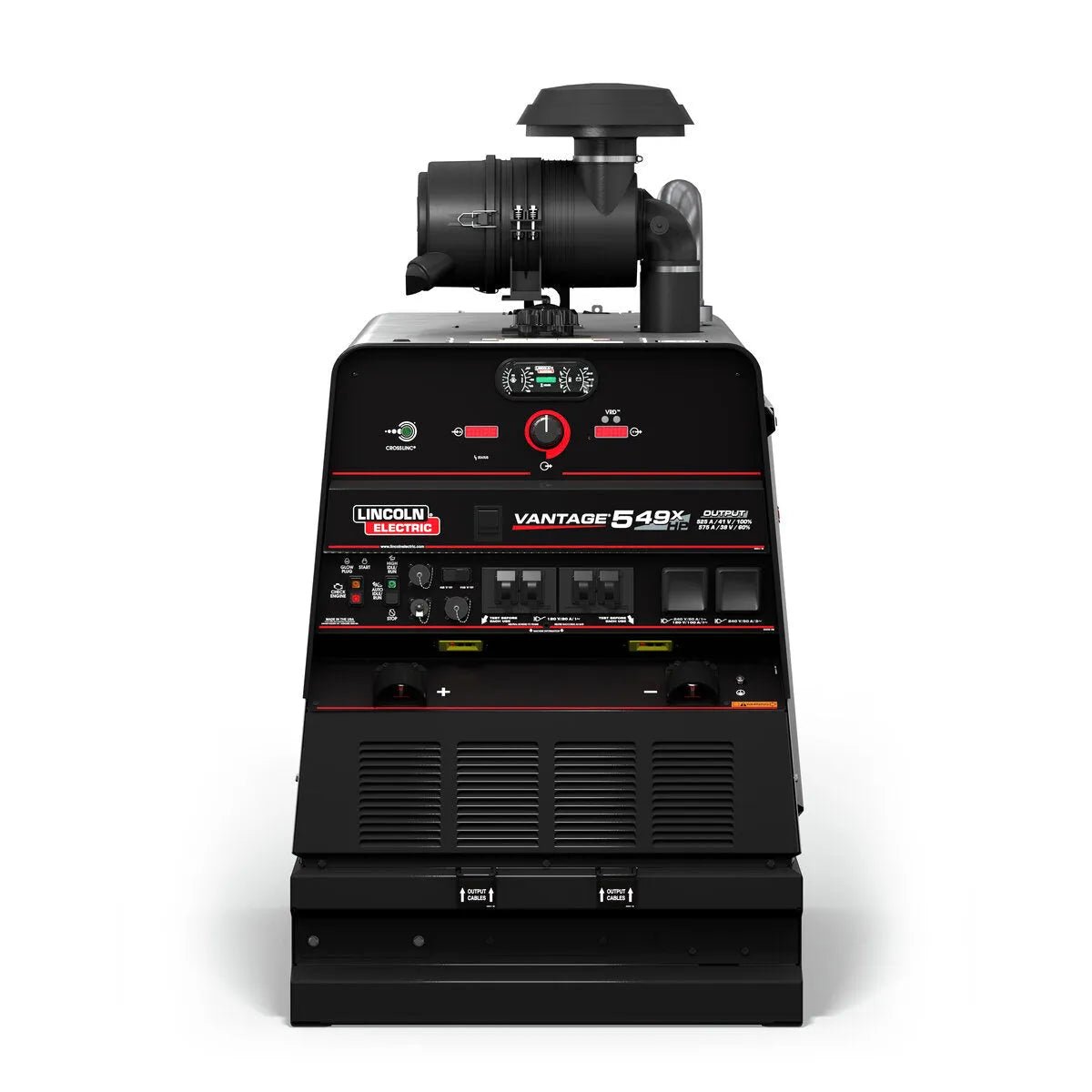

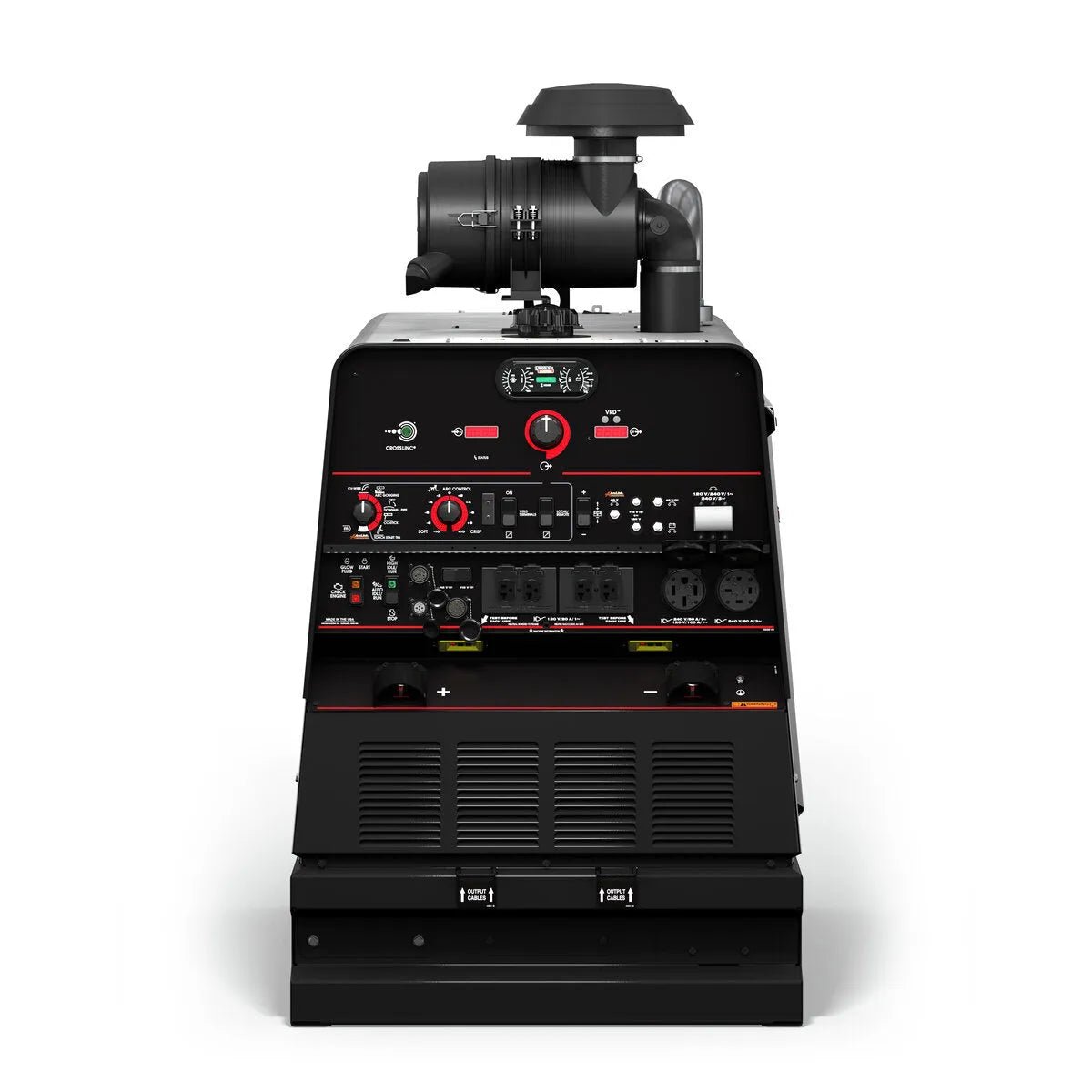

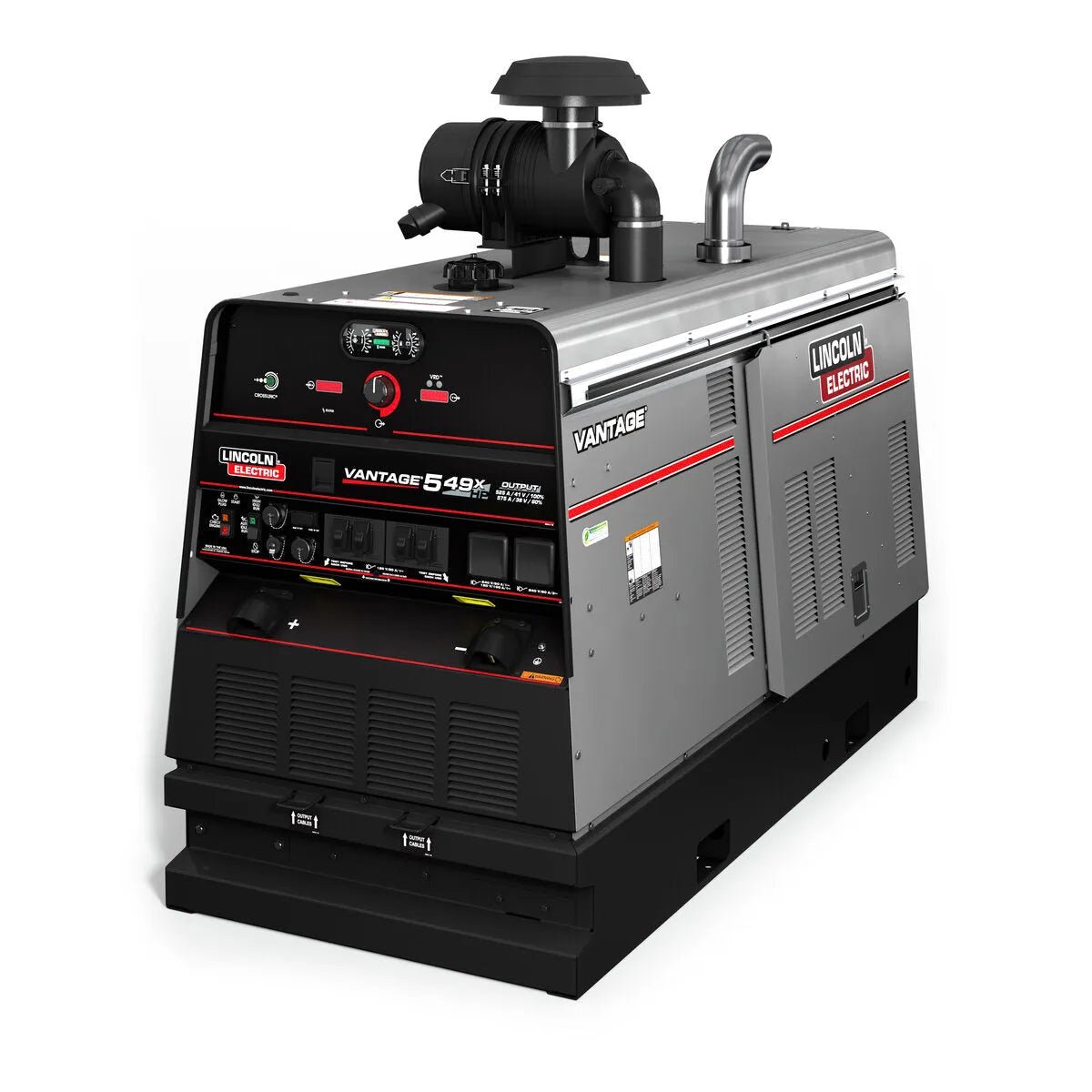

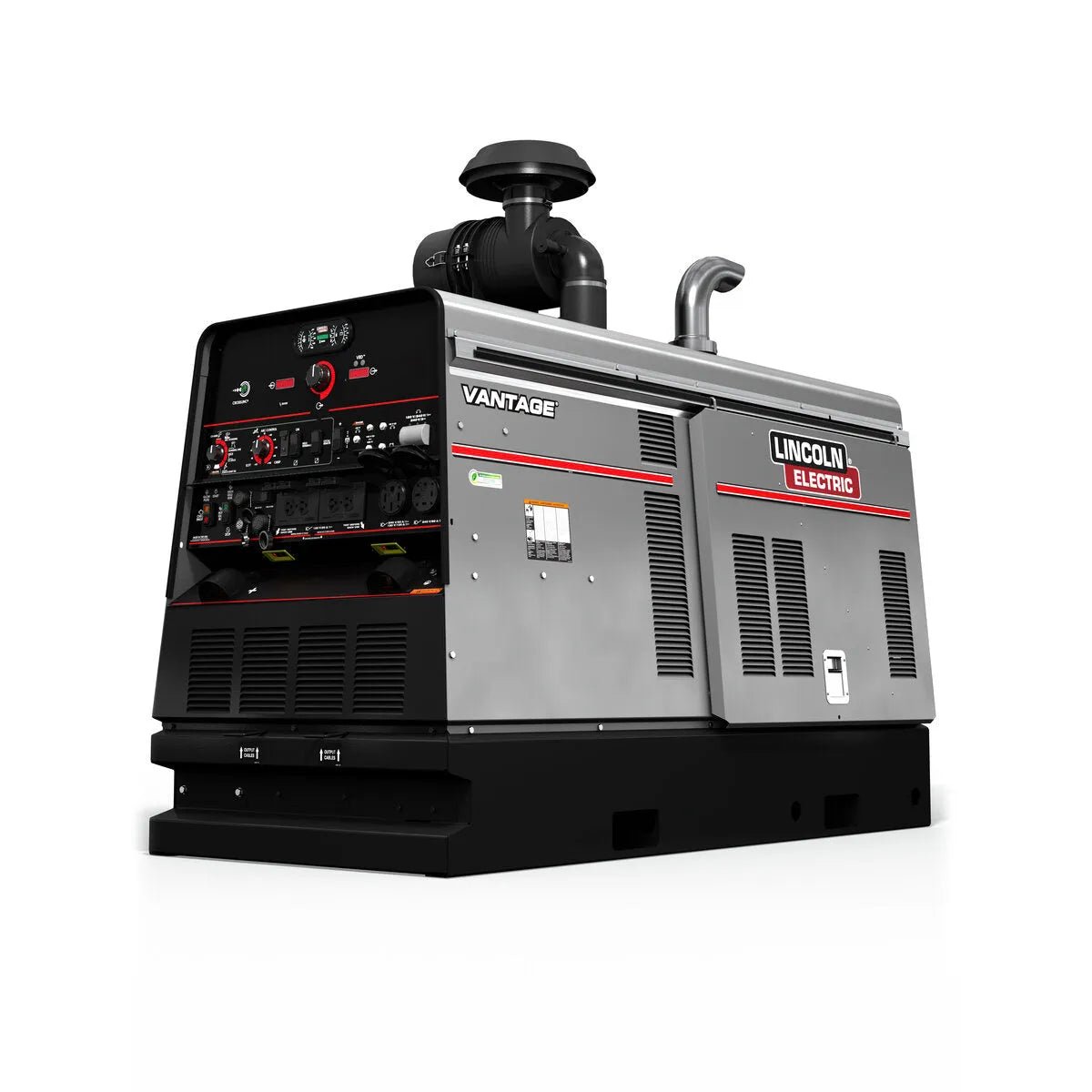

The Lincoln Vantage 549X (K3534-2) is the advanced successor to the Vantage 549, delivering up to 575 amps of welding output (IEC rated 525A / 41V / 100% duty cycle) with Lincoln's patented Chopper Technology for premium arc performance, CrossLinc remote-at-arc control, and expanded process modes for stainless, aluminum, submerged arc, and orbital pipe applications. Powered by a 49.4 HP Deutz TD2.9L4 turbocharged diesel engine meeting EPA Tier 4 Final standards, the Vantage 549X combines the industrial power of a 500-amp class machine with next-generation features that directly improve weld quality, operator safety, and jobsite productivity.
Where the standard Vantage 549 provides core multi-process capability, the 549X adds CrossLinc Technology — enabling voltage or current adjustment directly at the arc through a standard weld cable, with no separate control cable required. This eliminates extra cable runs, reduces trip hazards, and saves time on every pass. True Voltage Technology (TVT) automatically compensates for voltage drop over long cable distances, ensuring consistent arc characteristics regardless of how far the operator is from the machine. The 549X also adds specialized welding modes for stainless steel, aluminum, and advanced SAW applications, plus orbital pipe mode with integrated pulse welding capability for critical pipeline and pressure vessel work.
The Vantage 549X generates 19 kW of continuous three-phase 240V power and 11 kW of single-phase 120/240V power — enough to simultaneously run plasma cutters, hydraulic pumps, inverter welders, lights, and hand tools on demanding multi-trade jobsites. At 1,662 lbs (753 kg) and measuring 42 × 32.9 × 69 inches, it is designed for trailer or truck-bed mounting for field mobility. The stainless steel exterior, all-copper windings, potted PC boards, and aluminum radiator reflect Lincoln Electric's commercial-grade build quality. The 25-gallon (94.6 L) fuel tank supports all-day operation between fuel stops.
The Vantage 549X is the right choice when you need everything the Vantage 549 delivers — plus CrossLinc remote control, expanded process modes for aluminum and stainless, and Chopper Technology's smoother arc and reduced spatter on stick and pipe welding. For pipeline contractors who do both root and hot passes with strict weld procedure requirements, for structural erectors who need remote amperage adjustment without leaving the structure, and for multi-process operations that shift between carbon steel, stainless, and aluminum — the 549X provides the capability margin to do it all from one machine. The three-year Lincoln Electric warranty applies to every unit.
| Welding Output (IEC Rated) | 525A / 41V / 100% duty cycle @ 40°C |
| Max Output | 575A (CC-Stick & Arc Gouging modes) |
| Output Range by Mode | CC-Stick: 30–575A | Downhill Pipe: 40–350A | Touch Start TIG: 20–350A | CV-Wire: 10–45V | Arc Gouging: 60–575A |
| Engine | Deutz TD2.9L4, 49.4 HP (37 kW), 4-cyl turbocharged diesel, EPA Tier 4 Final |
| Engine Speed | High idle: 1800 RPM / Low idle: 1525 RPM |
| Single-Phase Aux Power | 11,000W continuous, 120/240V, 60 Hz |
| Three-Phase Aux Power | 19,000W continuous, 240V, 60 Hz |
| Receptacles | NEMA 5-20R, NEMA 14-50R, NEMA 15-50R |
| Fuel Tank | 25 U.S. gal (94.6 L) |
| Displacement | 178 cu. in. (2.9 L), bore × stroke: 3.62 × 4.33 in |
| Dimensions (H × W × D) | 42 × 32.9 × 69 in (1067 × 836 × 1753 mm) |
| Net Weight | 1,662 lbs (753 kg) |
| Welding Processes | SMAW, GMAW, GMAW-P, FCAW-S, FCAW-G, GTAW, CAC-A, SAW |
| Communication Technologies | CrossLinc, ArcLink |
| Max Gouging Carbon | 3/8 in. (9.5 mm) |
| Emissions | US EPA Tier 4 Final |
| Warranty | 3 Years Parts & Labor (engine warranted separately) |
- Lincoln Vantage 549X engine-driven welder/generator (K3534-2)
- Operator's manual and safety documentation
- 12VDC battery and starter with automatic glow plugs
- NEMA 5-20R, NEMA 14-50R, and NEMA 15-50R auxiliary receptacles
Welding leads, wire feeders, and electrode holders sold separately.
- Wire feeders: LN-25 PRO, LN-15, and CrossLinc-compatible feeders — browse wire feeders
- Welding leads & electrode holders: Heavy-duty welding leads rated for 500A+ industrial applications
- Remote output controls: 125 ft. Remote Output Control with 115VAC receptacle (CrossLinc eliminates need for separate control cable)
- Transport: Large Welder Trailer
- Engine-driven accessories: Full engine-driven welder accessories collection
- Pipeline construction: Downhill Pipe mode (40–350A), orbital pipe support, and pulse welding for API 1104-compliant root and fill passes on cross-country gas and liquid lines
- Structural steel erection: CC-Stick up to 575A for heavy E7018 and E8018 electrodes on structural connections; CrossLinc remote control keeps the operator at the work, not at the machine
- Stainless & aluminum fabrication: Specialized stainless and aluminum modes with pulse capability for corrosion-critical applications in chemical, marine, and food processing industries
- Mining & heavy equipment repair: 575A gouging with anti-stall engine management removes heavy deposits for weld preparation without machine shutdown
- Offshore & marine construction: Stainless steel enclosure resists salt-air corrosion; EPA Tier 4 Final allows operation in environmentally sensitive coastal areas
- Railroad maintenance: Rail welding and field repair in remote corridors — 11 kW and 19 kW auxiliary power supports full site operations
Looking to save up to 35%? Browse Factory Demo engine-driven welders — same warranty, factory-tested, restocked frequently.
Shop Factory Demo Engine Drives →The Vantage 549X (K3534-2) adds CrossLinc Technology for at-arc remote parameter control, Chopper Technology for reduced spatter on stick and pipe welding, and specialized welding modes for stainless steel, aluminum, submerged arc, and orbital pipe applications. The core engine, duty cycle, and generator output are the same. Choose the 549X when multi-process diversity, remote control, or specialized modes are part of your work scope.
CrossLinc allows the operator to adjust welding voltage or current directly at the arc through a standard weld cable — no separate control cable required. This reduces cable clutter, trip hazards, and the number of trips back to the machine during a weld sequence, improving productivity and safety on complex structures or elevated work.
Up to 575 amps in CC-Stick and Arc Gouging modes. The machine is IEC rated at 525 amps at 41VDC with 100% duty cycle, meaning it sustains that output continuously at rated ambient temperature without duty cycle interruption.
Yes. The 549X includes an orbital pipe welding mode with integrated pulse capability, specifically designed to support mechanized orbital welding heads used on API 1104 pipeline work and pressure vessel fabrication.
Yes. The stainless steel exterior panels provide corrosion resistance for coastal, marine, and high-humidity environments. Combined with potted PC boards (sealed against moisture and vibration) and all-copper windings, the 549X is built for the harshest outdoor conditions.
