Velion™ 50kW 150A CCS1 (SAE J1772 Combo) EV Output Cable, 15 ft (4.5 m) - designed for use with the Lincoln Electric Velion™ 50kW Level 3 DC Fast Charger. Engineered for maximum efficiency, the quick-connect lug cable connections allow for seamless replacements in under five minutes, minimizing downtime and keeping your operations running smoothly. Velion™ output cables are sold separately from the charger, so you can specify the connector standard and cable length your fleet needs.
Features

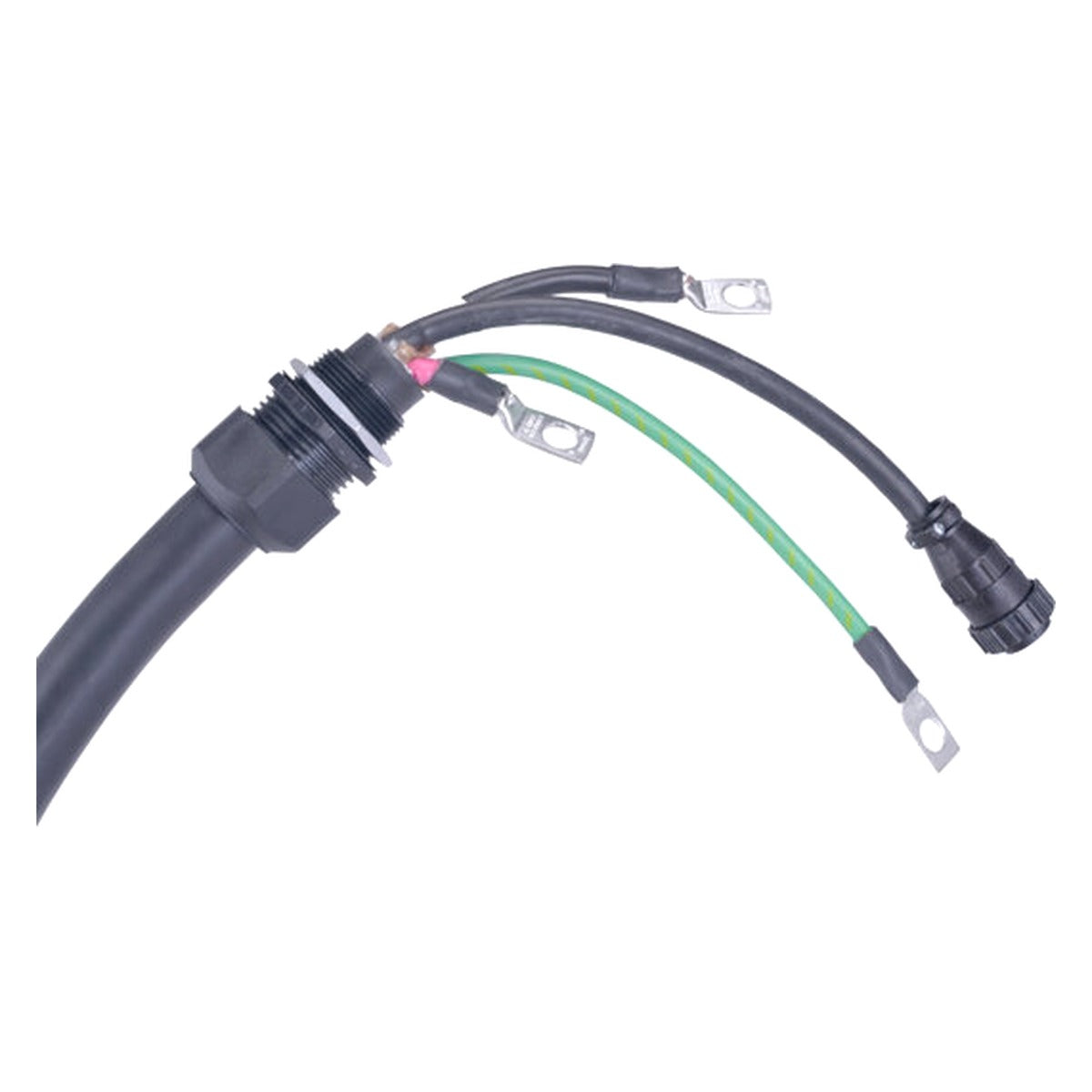

- Quick-Connect Lug Design Cable replacement in under five minutes. The lug-style cable connections let a technician swap the output cable in the field instead of pulling the charger out of service, minimizing downtime and keeping operations running.
- 150A DC Rating at 1000V Rated for 150A DC at 1000V and matched to the Velion™ 50kW Mobile DC Fast Charger, which delivers up to 130A across a 200-1000V DC output range at selectable 12.5kW, 25kW and 50kW power levels.

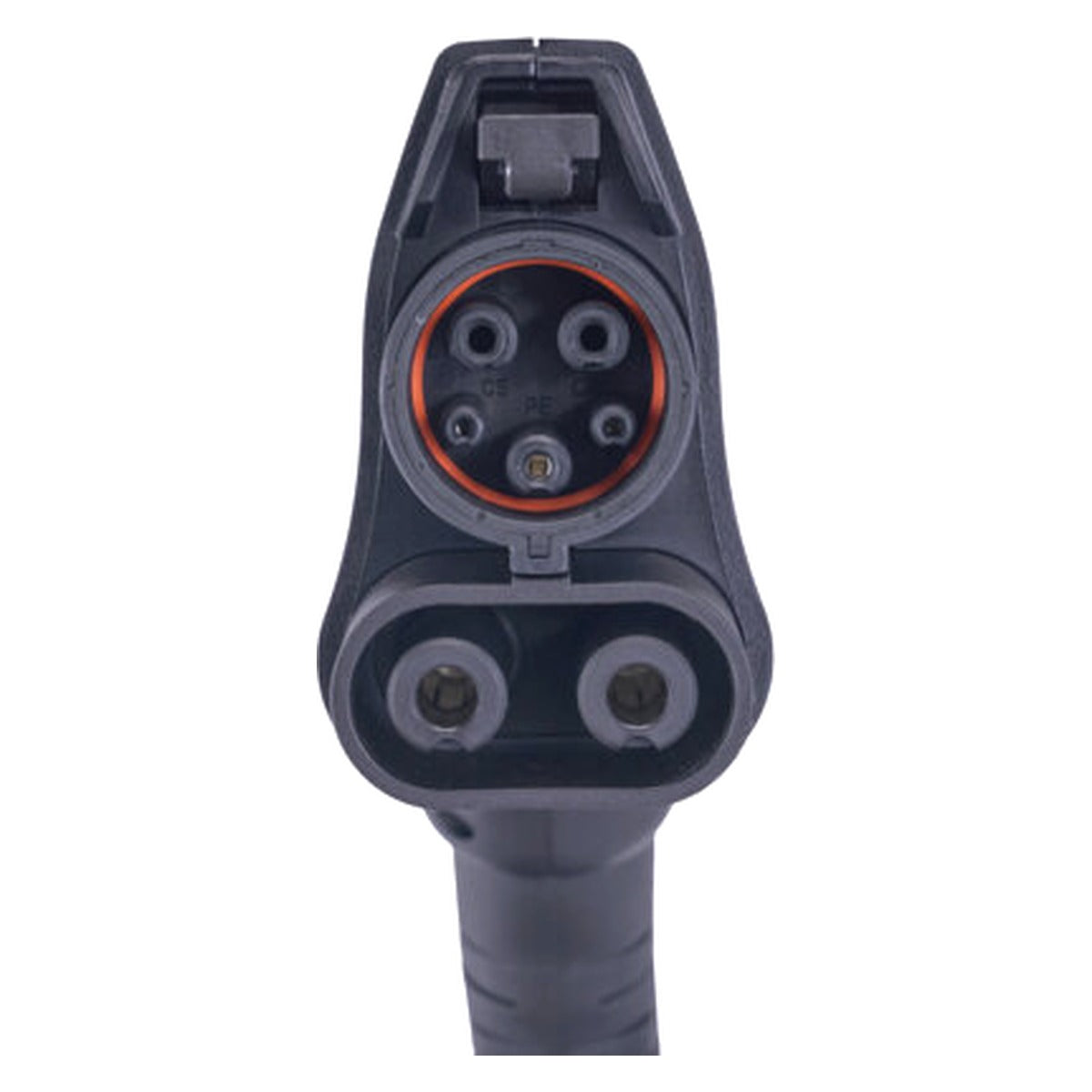

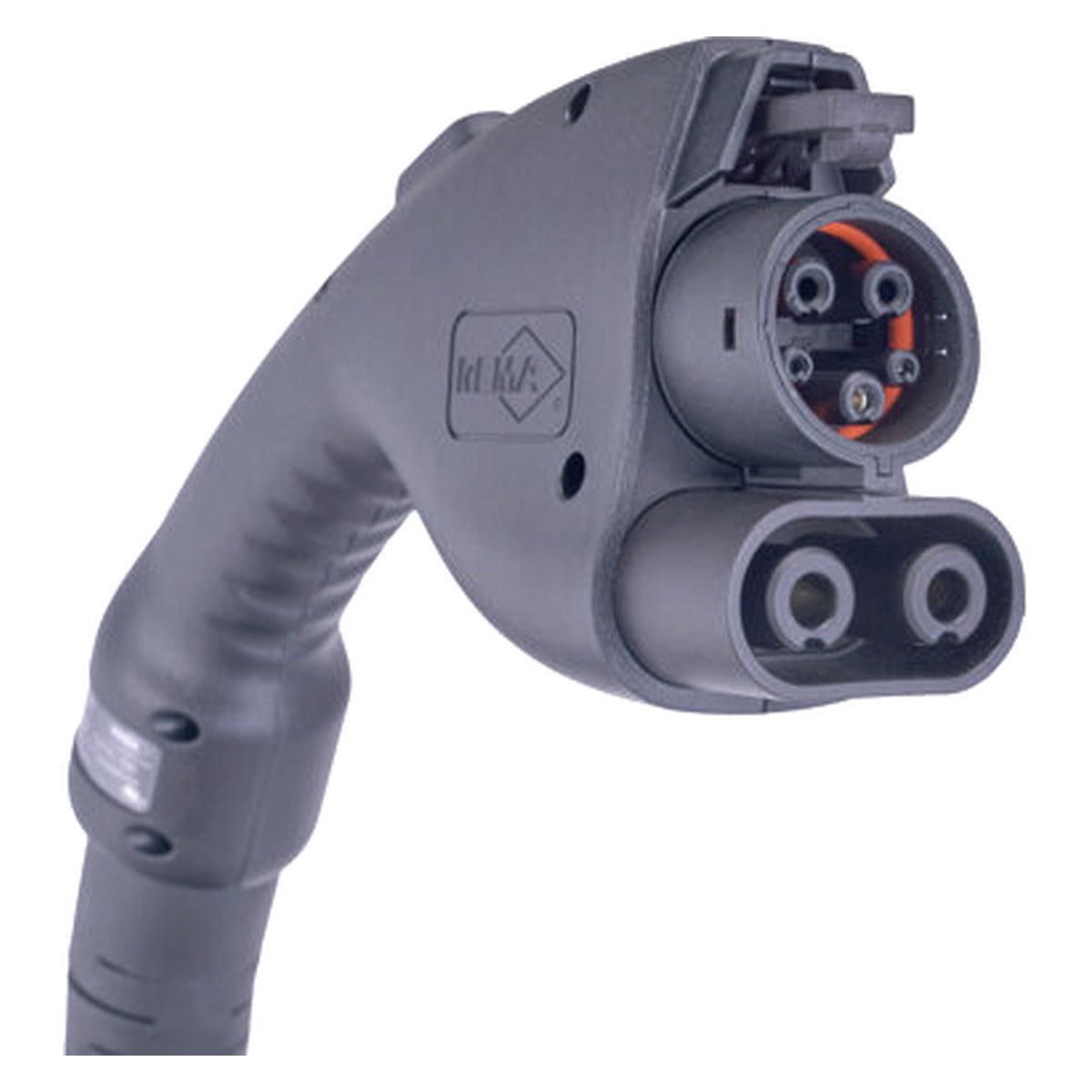

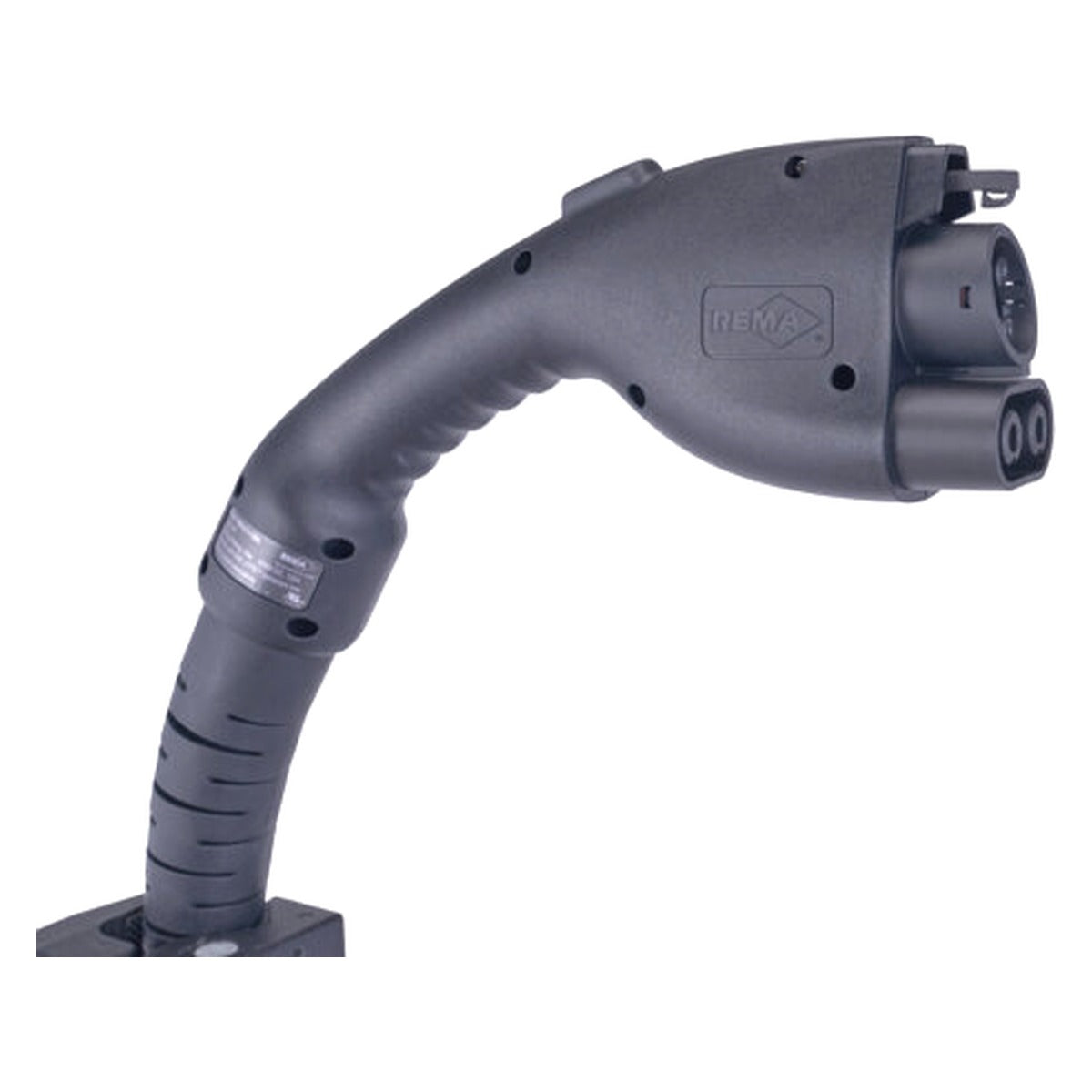

- CCS1 (SAE J1772 Combo) Connector CCS1 is the Combined Charging System coupler used across the majority of non-Tesla electric vehicles sold in North America, including Ford, GM, Stellantis, Hyundai and Kia, Rivian, and most electric school buses and delivery vans.

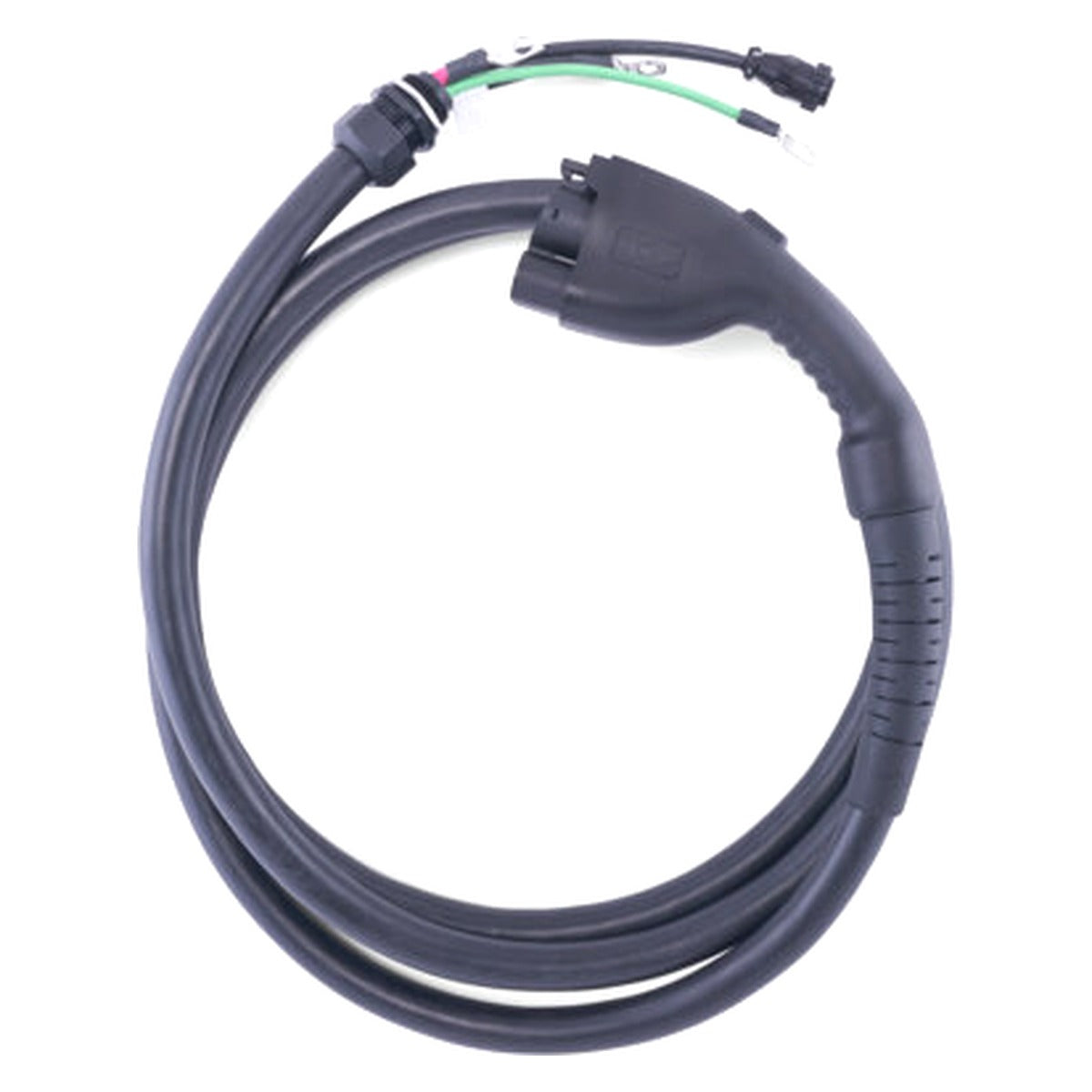

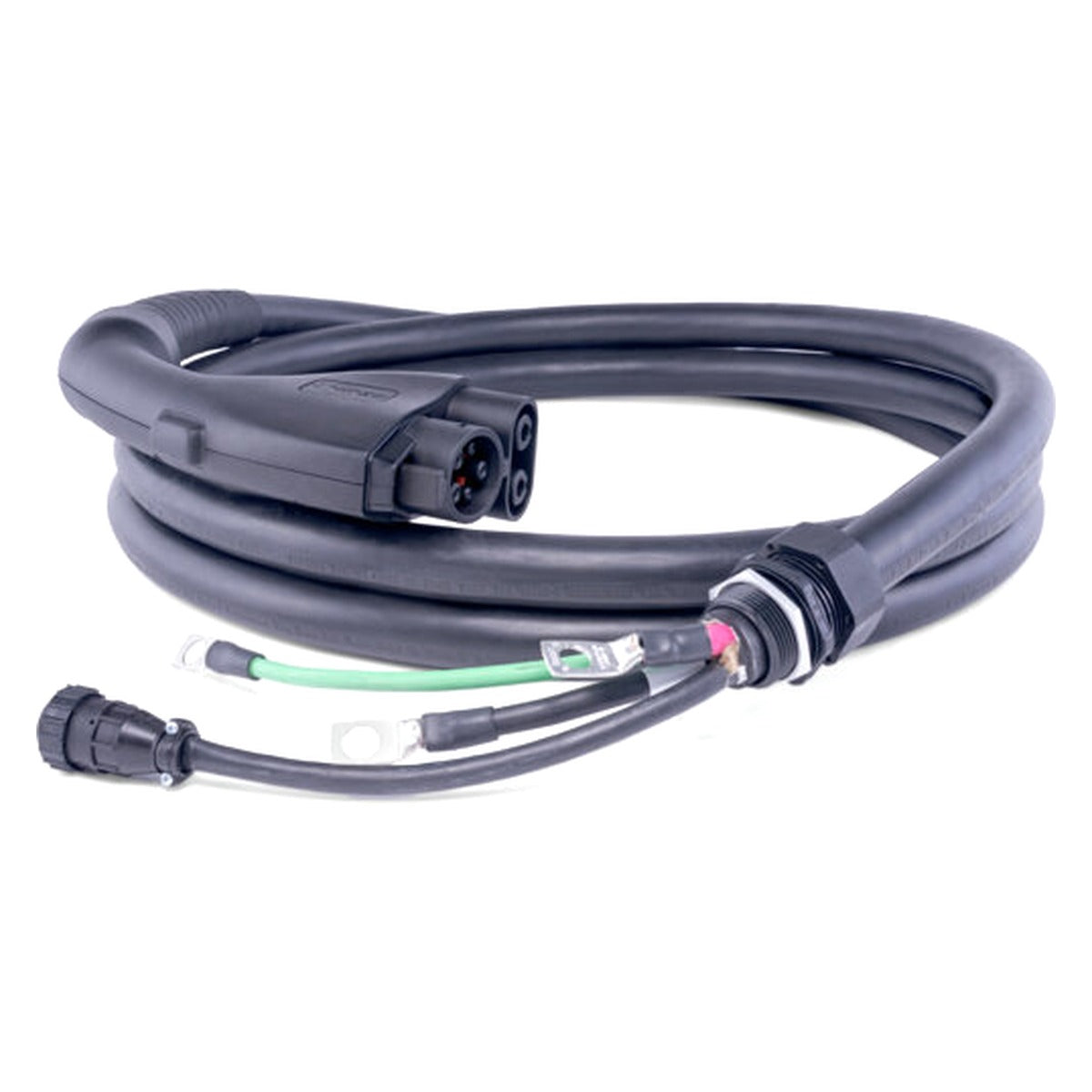

- 15 ft Cable Length The 15 ft (4.5 m) air-cooled cable gives the operator working reach around the vehicle without repositioning the charger. The same connector is also offered in a 25 ft length as K5814-1-C-25.
- Sold Separately Velion™ output cables are ordered separately from the charger so you can match connector standard and length to your fleet. A NACS version of this length is available as K5814-1-N-15, and it is the cable supplied in the K6021 and K6022 One-Pak® packages.
- Charger Compatibility Designed for use with the Velion™ 50kW Level 3 DC Fast Charger, part numbers K5765-1-W-X-M-W-R (wheels) and K5765-1-W-X-M-WC-R (roll cage and wheels).
- Certified Charging System The Velion™ charging system is certified to UL2202 and UL2231-1 & -2 with SAE J1772, SAE J2894 connector compliance, and communicates with the vehicle per DIN SPEC 70121 and ISO 15118.
- Built in the USA The Velion™ platform is designed, engineered and assembled in the United States with over 70% domestic content, meeting National Electric Vehicle Infrastructure (NEVI) and Build America, Buy America (BABA) requirements.
