Lincoln VIKING 3250D FGS SAR Supplied Air Respirator - K5443-1

SKU: K5443-1
$1,975.69

Financing Options

As low as /mo with.
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
The NIOSH 42 CFR Part 84 approved loose-fitting VIKING™ 3250D FGS® Supplied Air Respirator supplies fresh, cool air from an external air source to the operator.

Overview

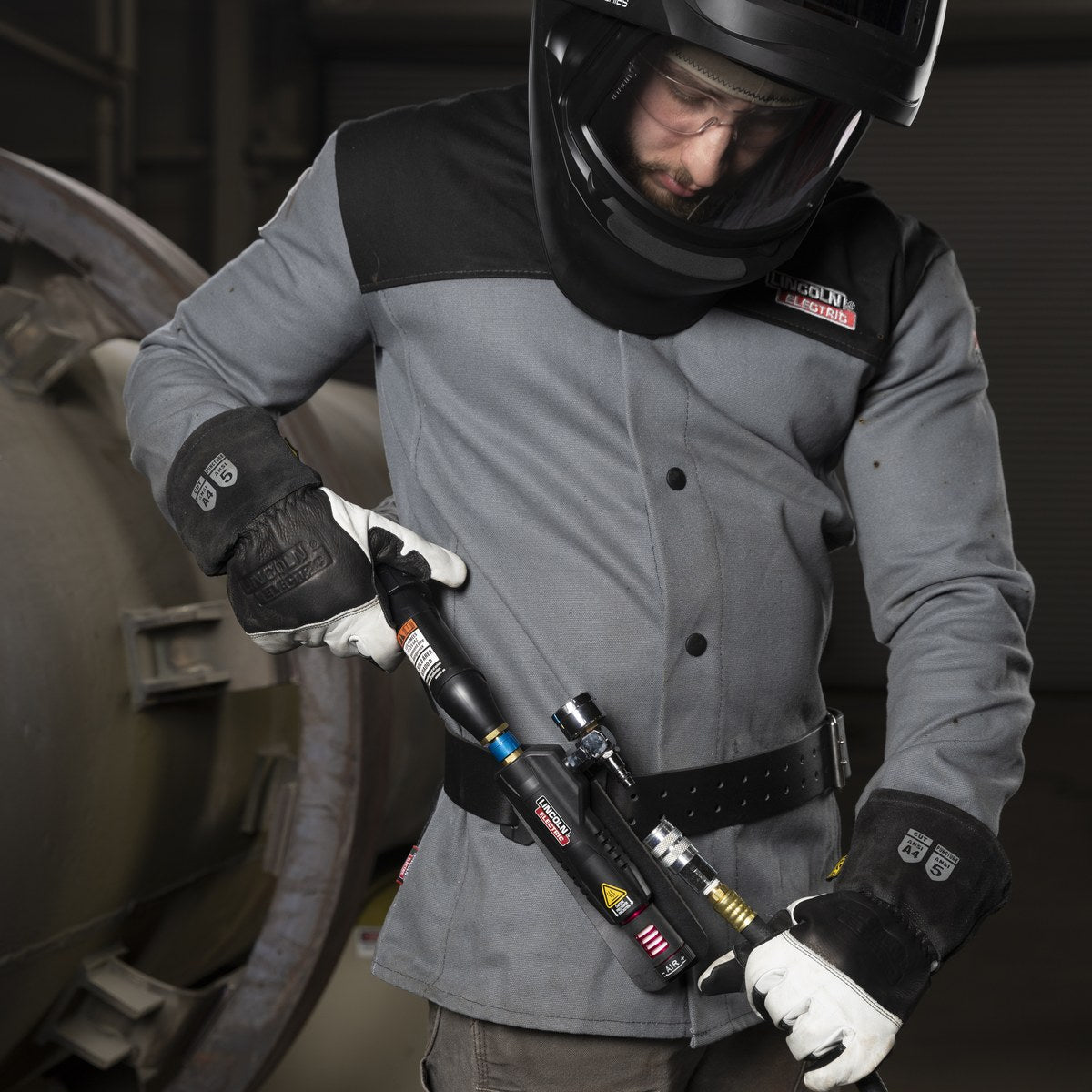

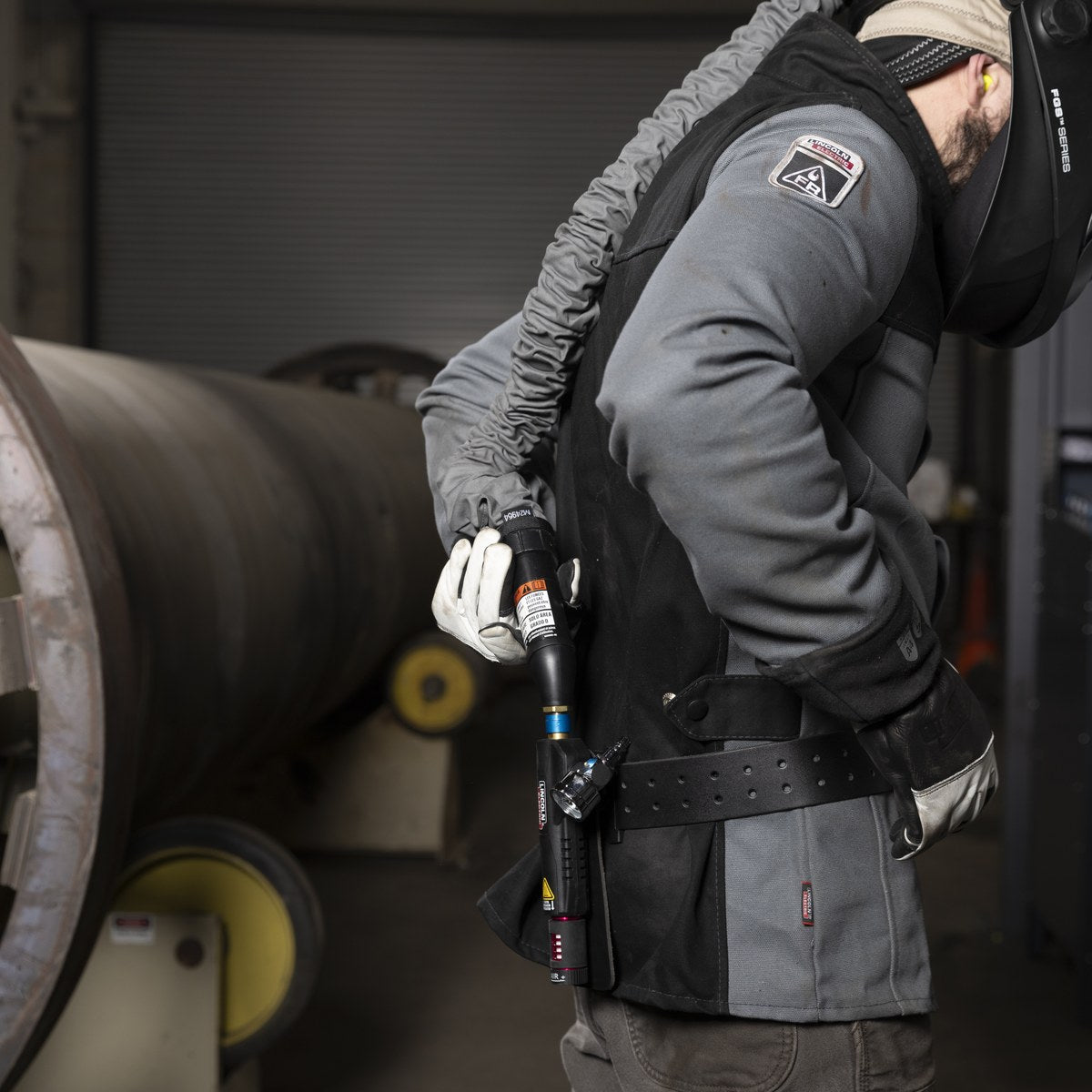

VIKING™ 3250D FGS® Supplied Air Respirator - The NIOSH 42 CFR Part 84 approved loose-fitting supplied air respirator delivers fresh, cool air to the operator from an external air source such as a compressed air cylinder or a centralized shop air system. As a continuous flow respirator it supplies a steady, uninterrupted stream of breathable air without pauses or fluctuations. Top features include a regulator capable of cooling incoming air, an integrated grind shield & shade 5 side windows, and an extra-large widescreen 12.5 sq in auto-darkening lens with Lincoln Electric's exclusive 4C® Lens Technology.

Features

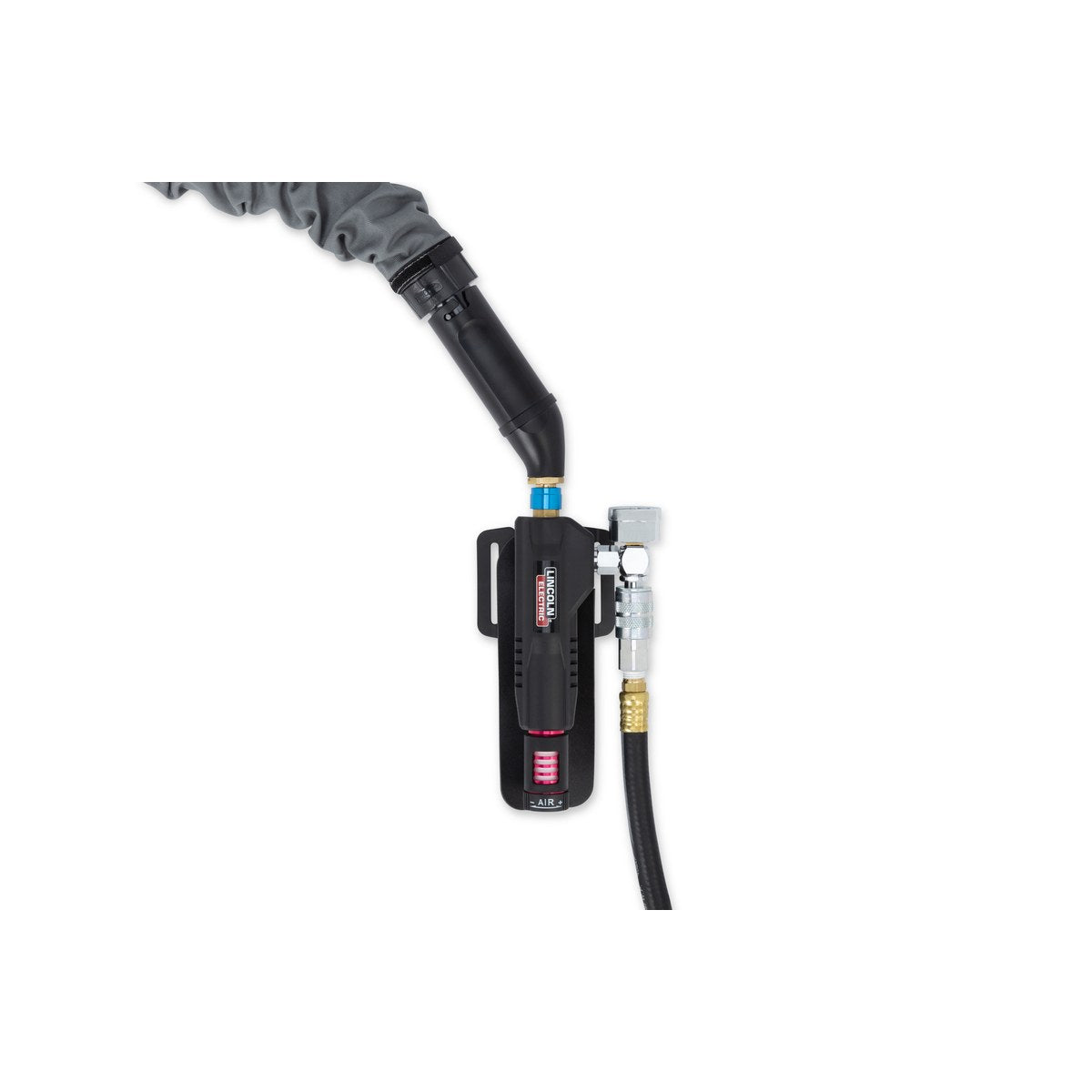

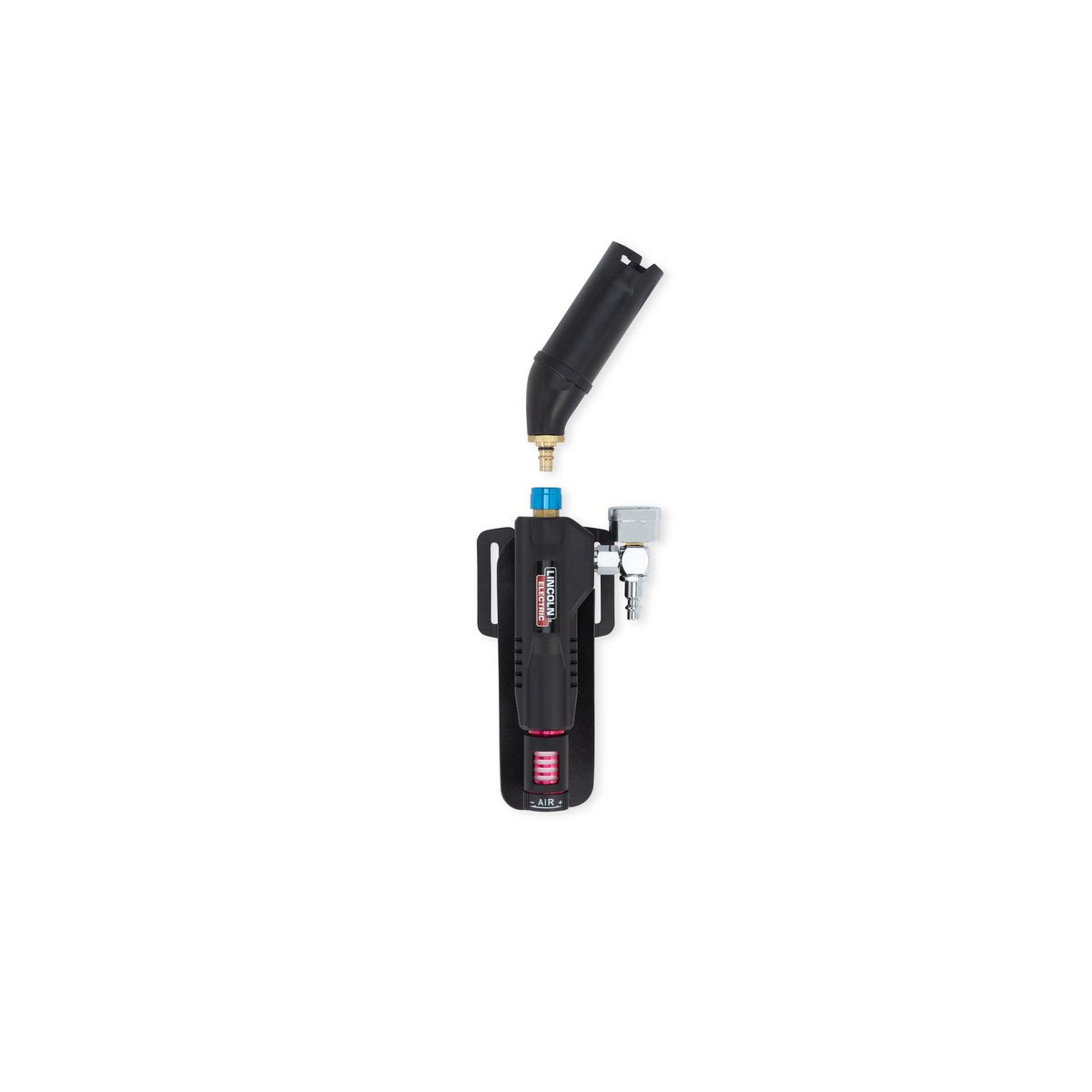

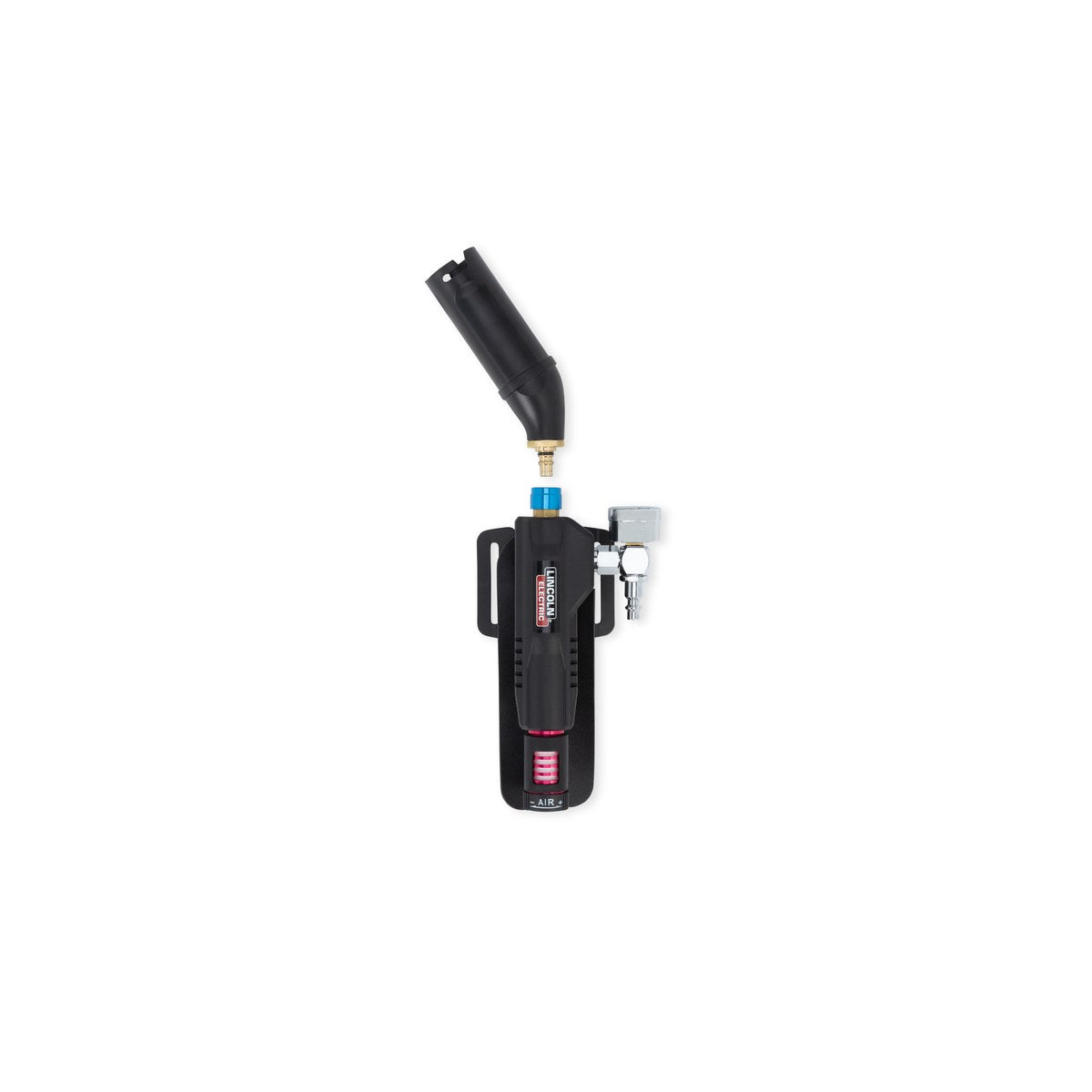

  • The SAR regulator is designed to supply an air flow range of 180 to 290 LPM and can cool incoming air by up to 50 degrees Fahrenheit.
  • 4C® Lens Technology - Broadens the color range & hues which can be seen in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle.
  • Perfect 1/1/1/1 Optical Clarity - This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens.
  • Extra Large Viewing Area - The 12.5 square inch auto-darkening lens provides a large field of view to increase versatility and operator control.
  • Maximizing Field of View - The integrated clear grind shield and shade 5 side windows increase field of view in both the open and closed positions to offer productivity and safety enhancements.
  • All Day Comfort - 4-Axis adjustable headgear evenly distributes weight and improves comfort.
  • The regulator's exhaust outlet pushes hot air away from the user to reduce heat buildup and support all-day wear.
Specifications

Specifications

Product Family — VIKING™
Product Series — 3250D FGS®
Product Type — Supplied Air Respirator (SAR)
Compliance — NIOSH 42 CFR Part 84
Filter Type — Grade D Supplied Air
Assigned Protection Factor — APF 25
Air Flow Range — 180–290 LPM
Air Cooling — Up to 50°F (28°C)
ADF Viewing Area — 2.95 in x 4.25 in (75 mm x 108 mm) – 12.5 sq. in.
Optical Clarity — 1/1/1/1
Control Type — Digital
Headgear Type — Advanced Pivot, 4-Axis Adjustable
Side Windows — Shade 5
Country of Manufacture — USA

Typical Applications

  • Construction
  • General Fabrication
  • Heavy Fabrication
  • Maintenance & Repair
  • Structural Welding
  • Shipbuilding
  • Pressure Vessels
  • Power Generation

Warranty

5 Years on the Auto-Darkening Lens, 1 Year on the SAR Regulator

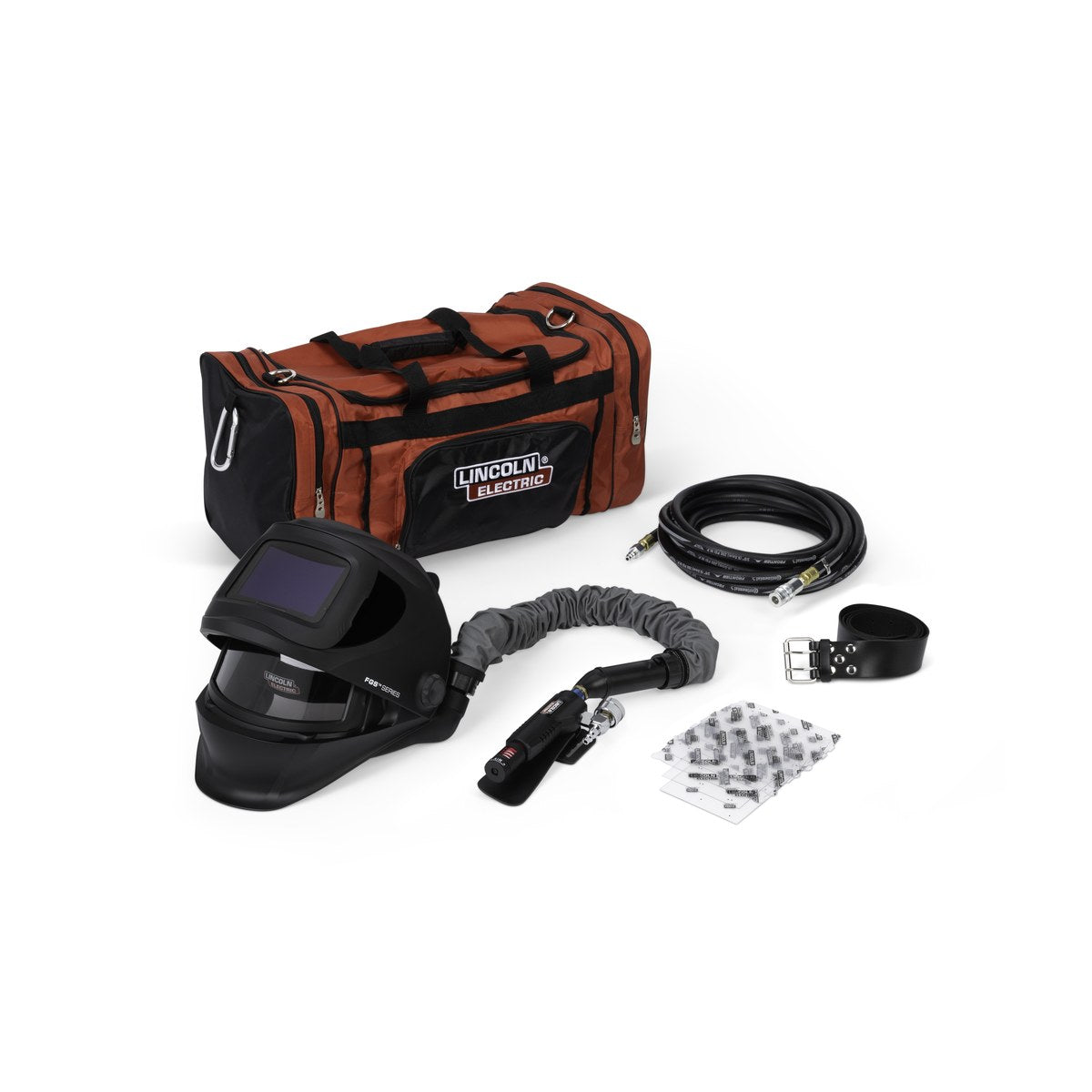

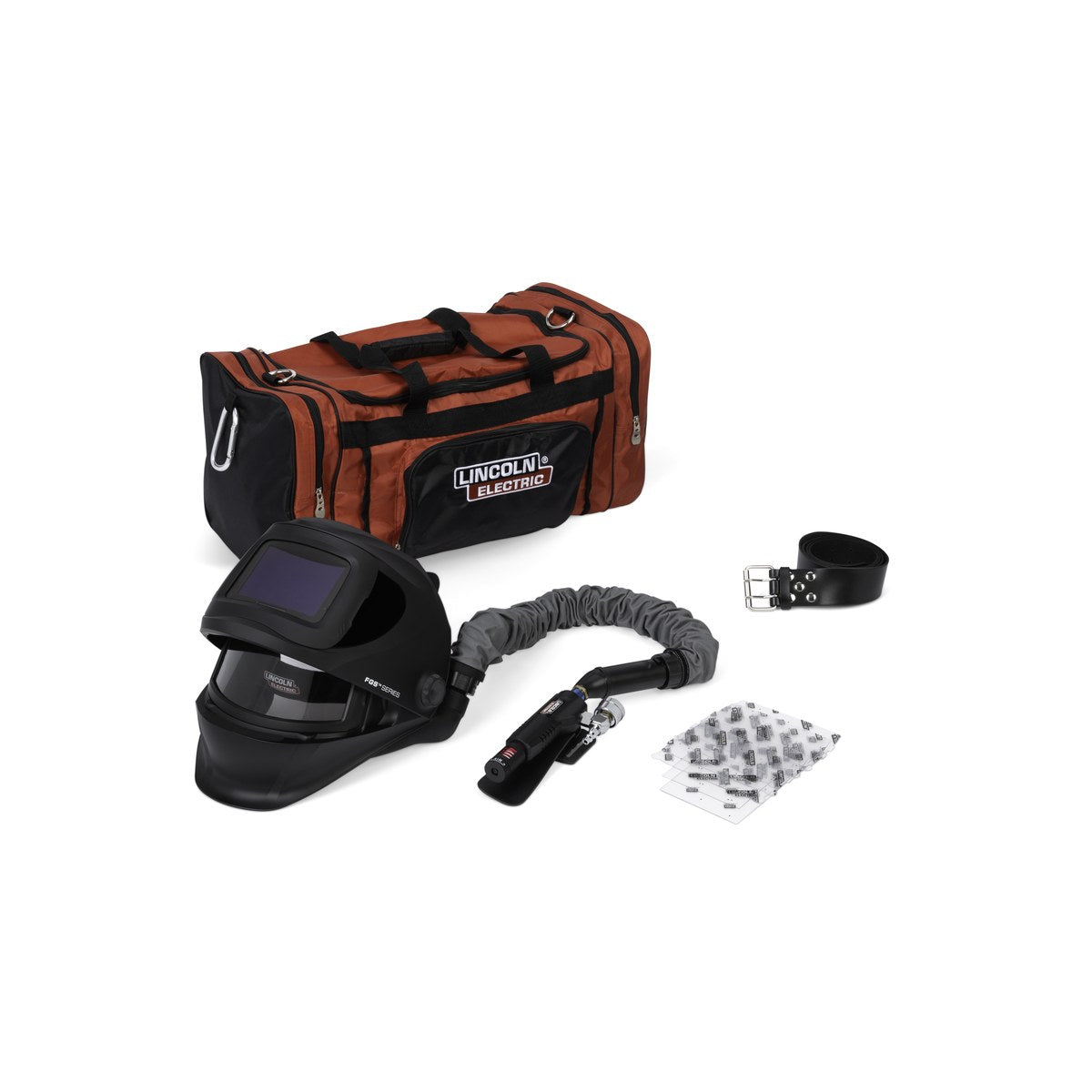

Includes

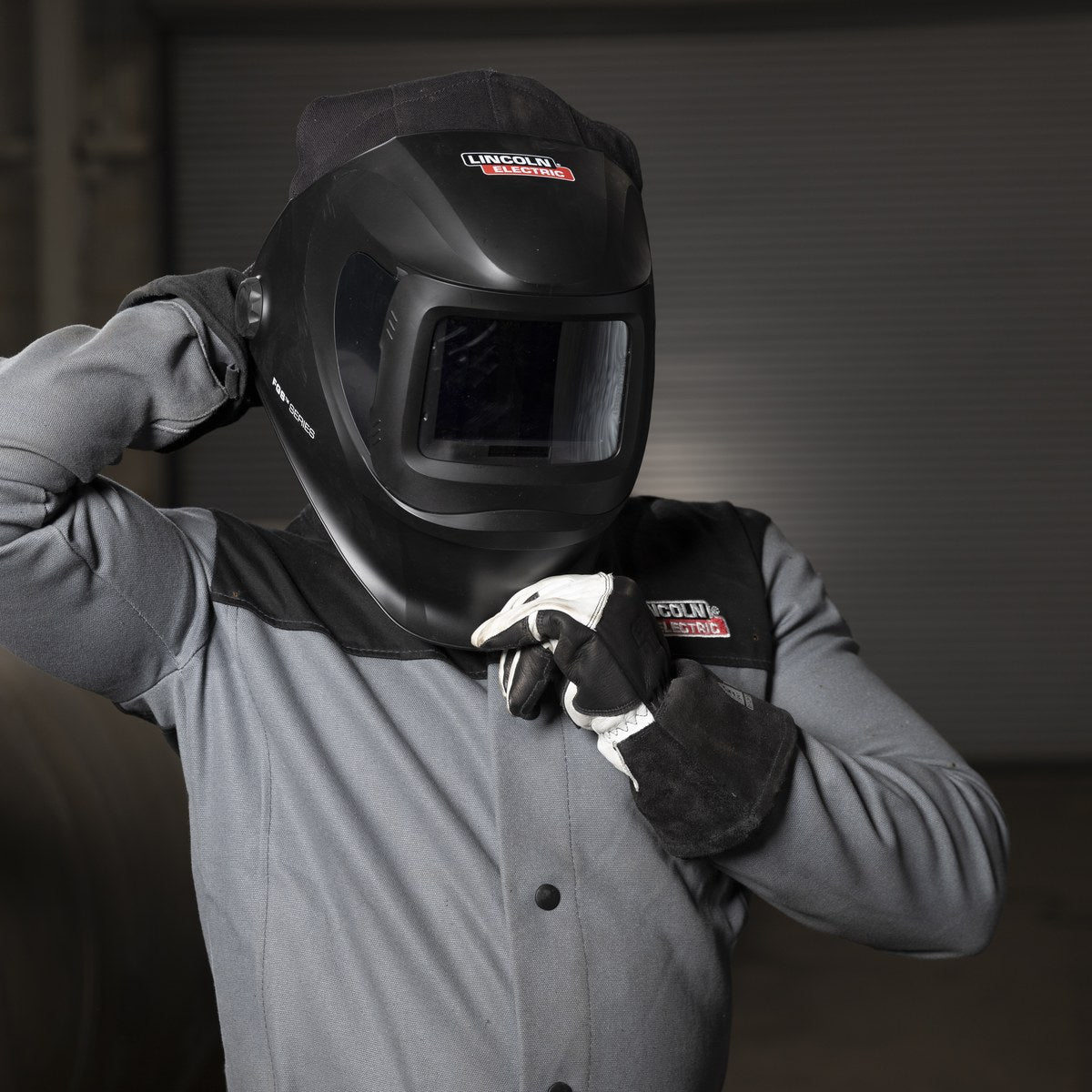

  • (1) KP4474-1 3250D FGS Respiratory Helmet

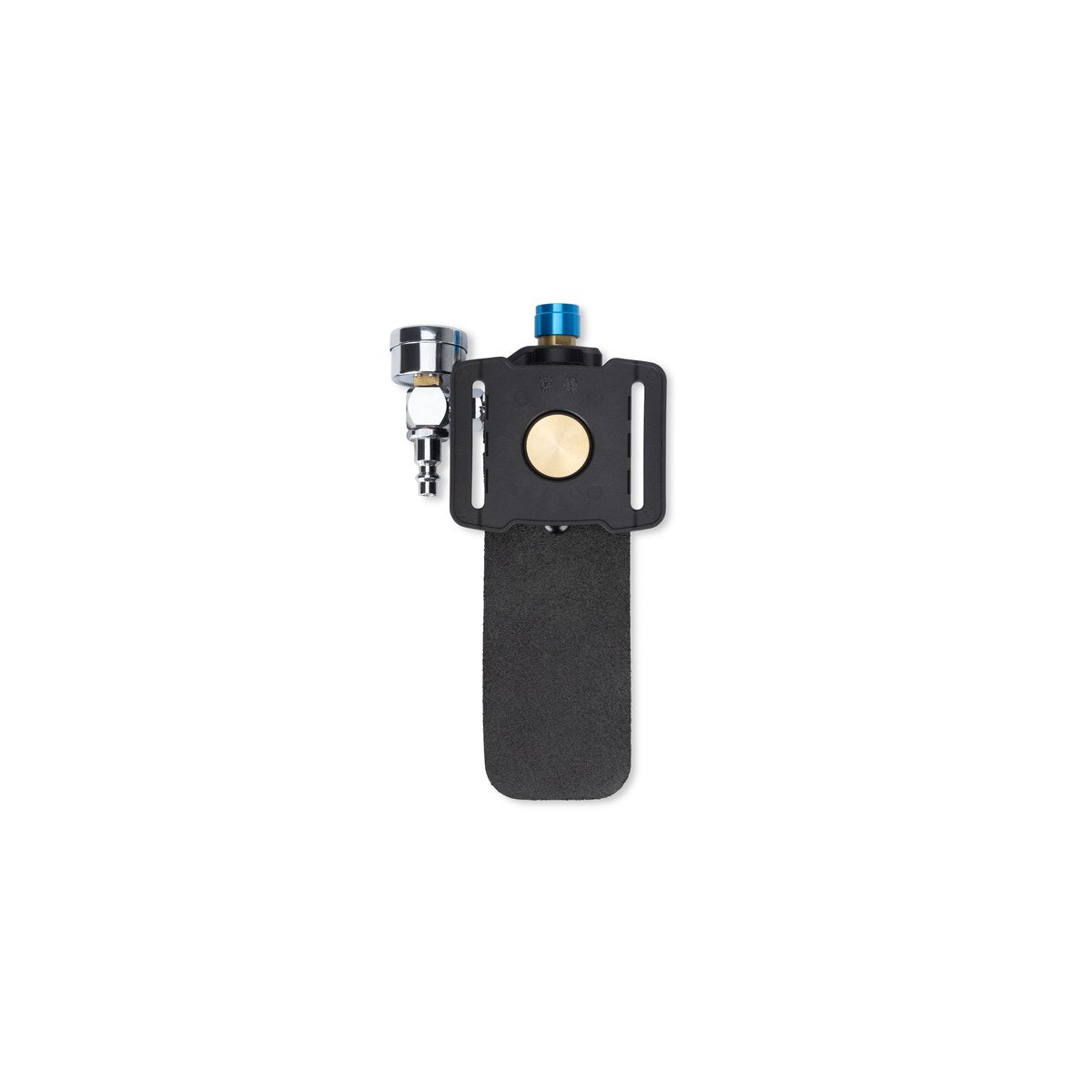

  • (1) KP5601-1 SAR Air Regulator Assembly

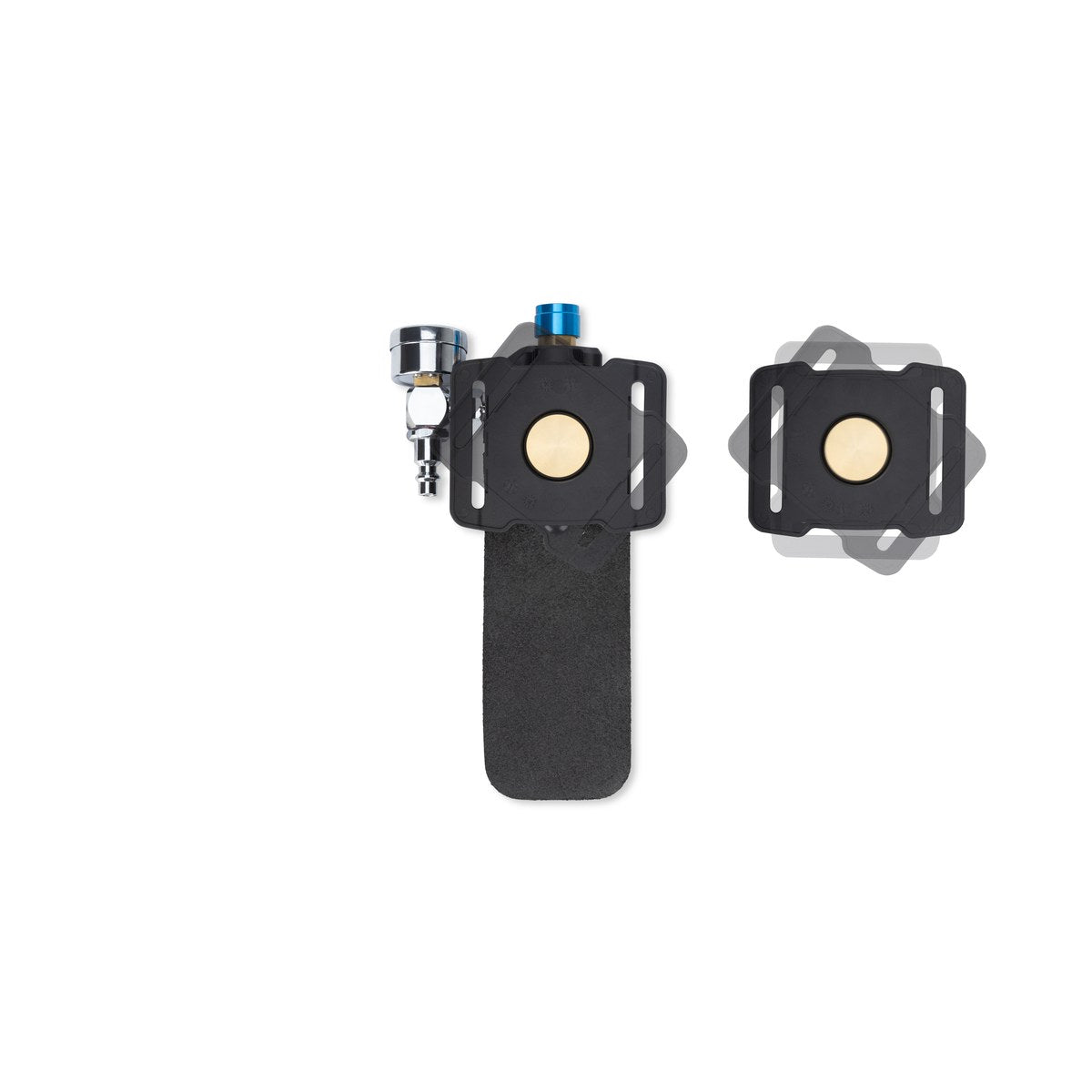

  • (1) KP5519-1 SAR Adjustable Leather Belt
  • (1) KP5122-1 Hose Assembly with Cover
  • (1) K3096-1 Industrial Duffle Bag
  • (1) KP3700-1 Replacement Outside Cover Lens (5/pk)
  • (1) KP3701-1 Replacement Inside Cover Lens (5/pk)
