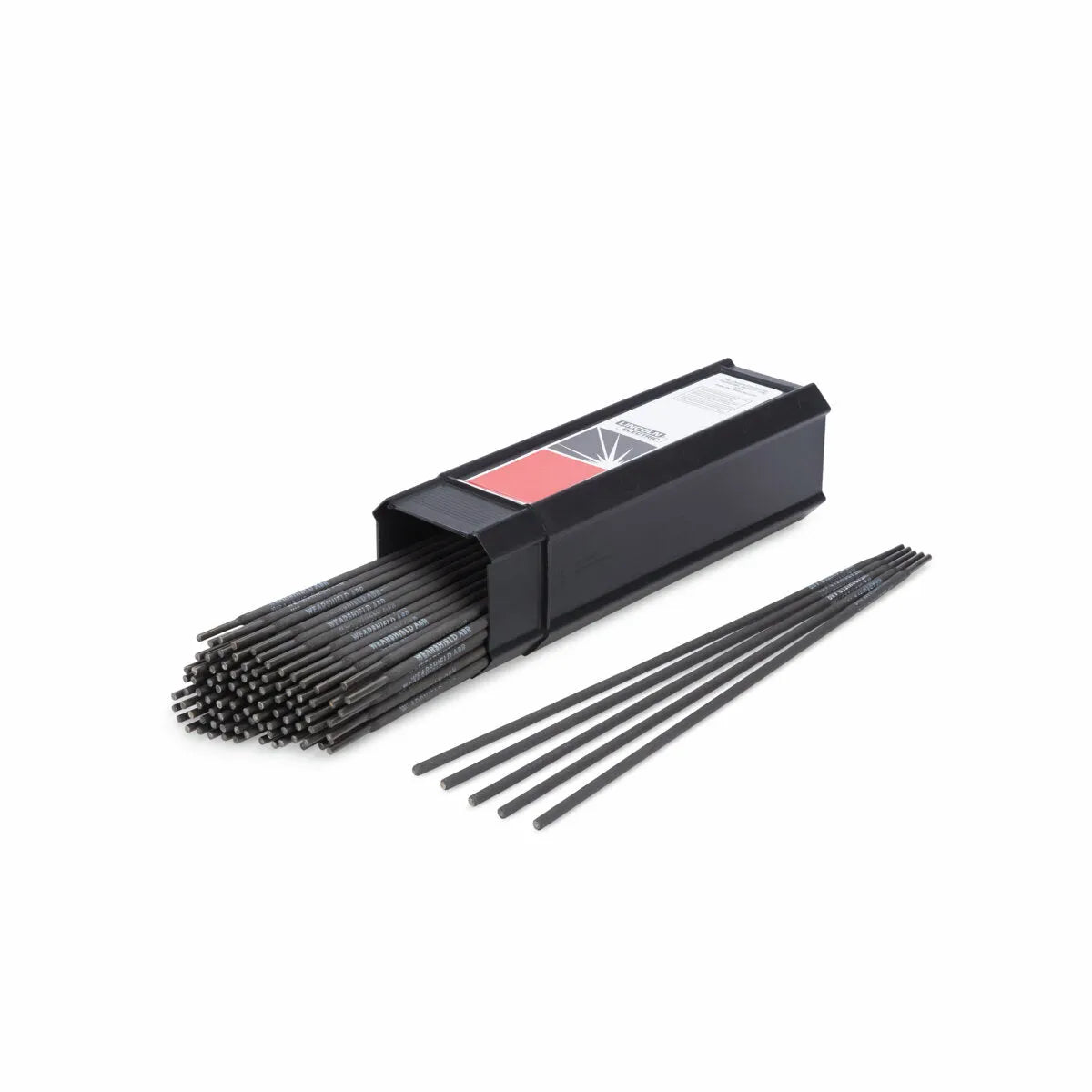

Lincoln ED021984 Wearshield 15CrMn Stick SMAW Welding Rod, 3/16 14 in 10 lb Plastic Tube

SKU: ED021984
$151.70
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
WEARSHIELD® 15CRMN stick electrode is ideal for joining, repair or build-up of austenitic manganese steel or joining of manganese to carbon steels such as crusher hammers and earth moving equipment (Build-up and Joining)
Overview

WEARSHIELD® 15CRMN stick electrode is ideal for joining, repair or build-up of austenitic manganese alloys producing tough, high-strength deposits that will work harden under impact. Typical applications include crusher hammers and earth moving equipment. It can be welded in all positions (except vertical down) and can be applied in unlimited layers

Features
  • Provides a premium austenitic chromium manganese deposit
  • Resists severe impact or gouging even in a single layer over carbon steel
  • Used to join Hadfield manganese steel to itself or to carbon steel
  • Excellent for build-up on carbon steel prior to chromium carbide hardfacing deposit with an electrode such as Wearshield® 60
  • Unlimited layers

Specifications
FeatureValue
Classification Number of layerHardness Rockwell C
Typical Result 1 Layer18-24
Typical Result, Work-hardened 1 Layer40-50
Classification Base Metal%C%Cr%Mn%Si
Typical Result Mild Steel0.415.014.00.6
Diameter PolarityCurrent, Amps
1/8" (3.2 mm) AC140-160
1/8" (3.2 mm) DC+140-160
5/32" (4.0 mm) AC190-210
5/32" (4.0 mm) DC+190-210
3/16" (4.8 mm) AC220-250
3/16" (4.8 mm) DC+220-250
Note
Can be single or multiple layers for the hardness range reported
Apply in two or more layers
LECO Diameter 3/16 x 14 in (4.8 x 350 mm)
LECO Package (4) 10 lb Plastic Tube
Diameter (in) 3/16
Length (in) 14
