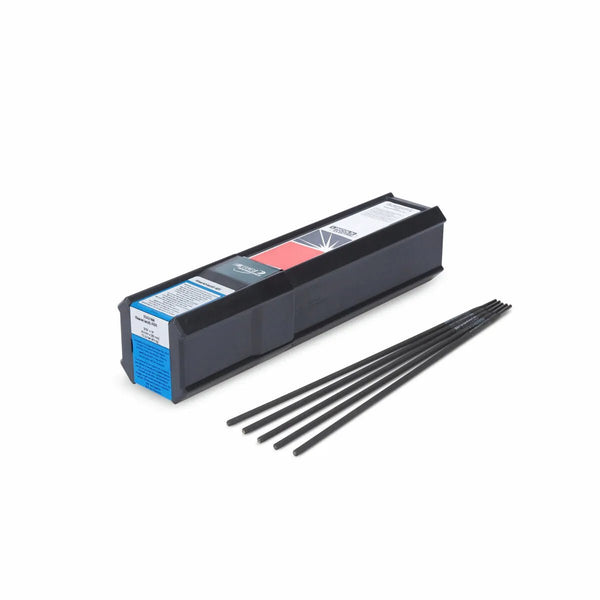

Lincoln Wearshield 60 is an AWS A5.13 EFeCr-A SMAW stick electrode family with n/a (hardfacing weld metal - characterized by hardness) tensile and DC+ or AC, flat and horizontal preferred operation. WeldingMart stocks 3 package and diameter variants of this grade, all sharing the same AWS classification - select the diameter and package format that fits your application below.
E FeCr-A is an AWS A5.13 high-chromium-carbide iron-based hardfacing SMAW electrode that deposits a primary chromium carbide overlay in an austenite-carbide matrix (55-62 HRC as-welded) for the most severe metal-to-earth and metal-to-mineral abrasion service. The chromium carbide phase provides exceptional cutting-and-gouging abrasion resistance. Standard hardfacing for crusher rolls, augers, fan blades, sinter plants, and ash-handling equipment. The deposit cross-checks by design (stress-relief cracking). DC+ or AC, flat and horizontal preferred.
| AWS classification | AWS A5.13 EFeCr-A |
|---|---|
| Minimum tensile | n/a (hardfacing weld metal - characterized by hardness) |
| Polarity / position | DC+ or AC, flat and horizontal preferred |
| Available diameters | 3/32 in through 1/4 in (varies by package) |
| Package formats | see size variants below |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Multiple diameter and package variants in stock - select the SKU below that matches your job
- US warehouse fulfillment, 1 business day ship time
- 30-day returns on unopened cartons
