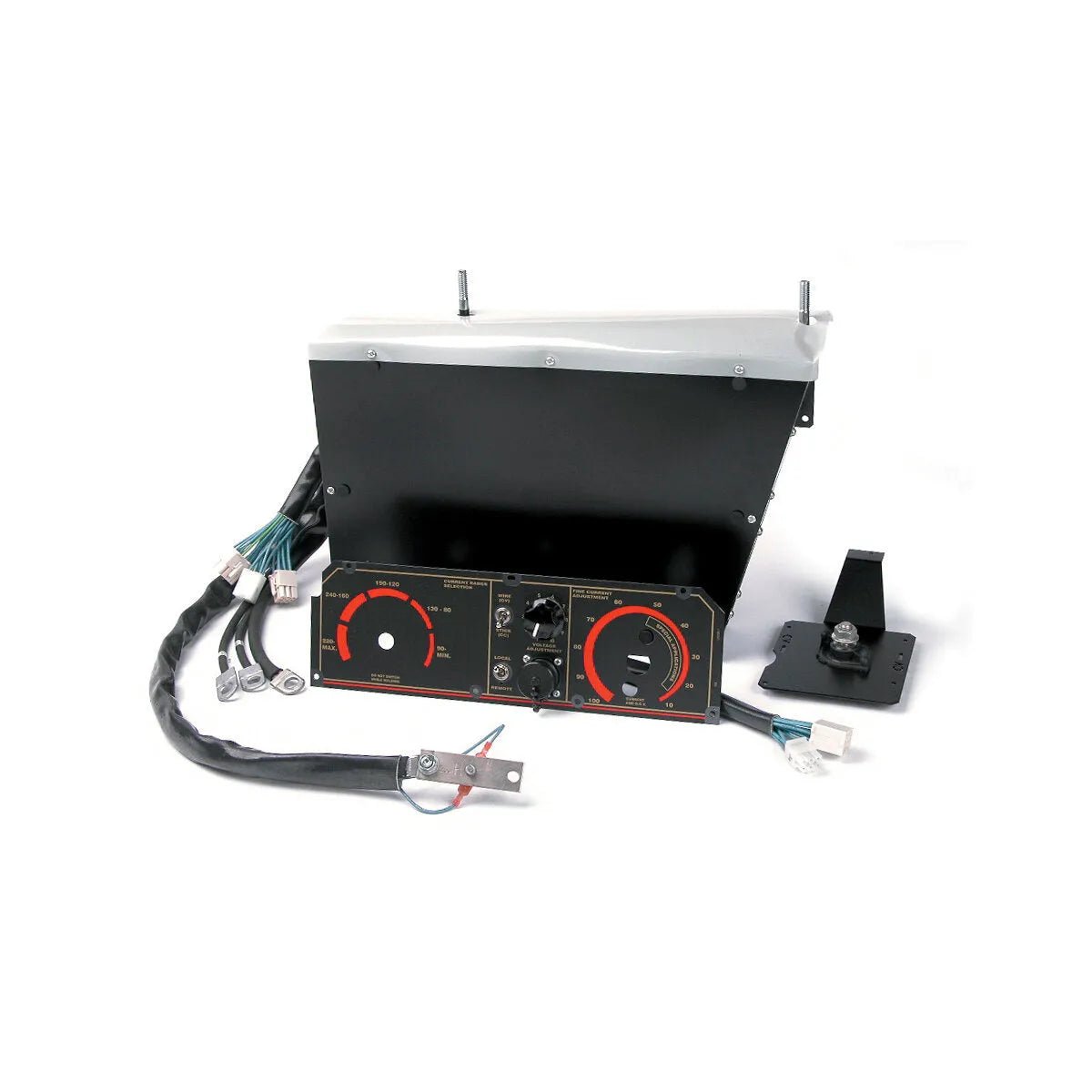

The Lincoln Electric Wire Feed Module (K623-1) is a bolt-in output control device that converts previous-generation Lincoln Classic and Pipeliner engine-driven welders — including the SA-250, SAE-300, Classic I/II/III/IIID/300D/300G, and Pipeliner 200D/200G — into semiautomatic wire electrode machines capable of CV-mode MIG and flux-cored welding, with a built-in power contactor, thermostat protection, and optional remote voltage control.
| Specification | Detail |
|---|---|
| Model | Wire Feed Module for Engine Driven Welders |
| Part Number | K623-1 |
| Spool Capacity | Determined by the wire feeder used in conjunction with this module (module itself does not hold wire) |
| Wire Diameter Range | Supports a wider range of wire electrodes when module is installed; specific range determined by the external wire feeder and drive rolls used |
| Voltage Source | Modifies engine-driven welder output to provide constant voltage (CV) mode; CC mode also available; voltage adjusted via front-panel controls or optional remote control |
| Drive Roll Type | N/A — this module does not include a wire drive; it enables CV output on the host engine drive for use with a separate wire feeder |
| Compatible Welder Series | Classic I, Classic II, Classic III, Classic IIID, Classic 300D, Classic 300G; Pipeliner 200D, Pipeliner 200G; SA-250, SAE-300; SA-250 Perkins (code 10061+), 350SA Perkins (code 10061+) |
| Cable / Reach | Installs inside the host engine drive; controls on the welder panel; optional remote voltage control accessory available |
| Operating Modes | Constant Voltage (CV) and Constant Current (CC) — switch-selectable on the welder control panel after module installation |
| Protection | Built-in thermostatic protection against overcurrent and overtemperature; built-in power contactor for "cold" electrode when gun trigger is released |
| Welding Processes Enabled | MIG (GMAW) with CO2 shielding gas (low spatter); semiautomatic flux-cored (FCAW); other open arc processes |
The K623-1 Wire Feed Module is specifically designed for welders who own a previous-generation Lincoln Classic or Pipeliner engine-driven welder and want to add semiautomatic MIG or flux-cored wire welding capability without purchasing an entirely new machine. It is an upgrade module, not a standalone feeder.
- Pipeline and field welding fleet upgrades: Many field welding crews operate older Lincoln SA-250 or Pipeliner engine drives that were purchased for SMAW stick welding. The K623-1 expands these machines to support MIG and FCAW processes, increasing the productivity of existing equipment assets without full replacement cost.
- Low-spatter MIG with CO2 shielding: The module is specifically noted to enable low-spatter MIG welding with CO2 shielding gas — a combination that benefits pipe, structural, and maintenance welding where post-weld cleanup time is a concern.
- Remote voltage control for long cable runs: With the optional remote control accessory, the operator can adjust CV output voltage at the weld joint rather than walking back to the engine drive — a significant productivity benefit on large fabrications or in the field.
- Shop and yard maintenance operations: Stationary Classic-series engine drives used in maintenance shops gain full semiautomatic wire welding capability with this module, making them multi-process machines for ongoing fleet and equipment maintenance.
The K623-1 is not a standalone power source or wire feeder — it is an internal retrofit module installed inside a host Lincoln engine-driven welder to modify its output characteristics. It is compatible with the following Lincoln machines:
- Classic Series: Classic I, Classic II, Classic III, Classic IIID, Classic 300D, Classic 300G
- Pipeliner Series: Pipeliner 200D, Pipeliner 200G
- SA/SAE Series: SA-250, SAE-300, SA-250 Perkins (code 10061 and above), 350SA Perkins (code 10061 and above)
Once installed, the module enables the host engine drive to switch between standard Constant Current (CC) mode — for stick welding — and Constant Voltage (CV) mode for semiautomatic wire welding. A separate wire feeder (such as the Lincoln LN-25 PRO or similar across-the-arc feeder) must be connected to the engine drive output to feed wire. View our full range of wire feed welders and compatible equipment to pair a wire feeder with this module.
