Mathey E-Z Pipecut Flame Cutter Manual - EZPCM
(Technical Specification Below)

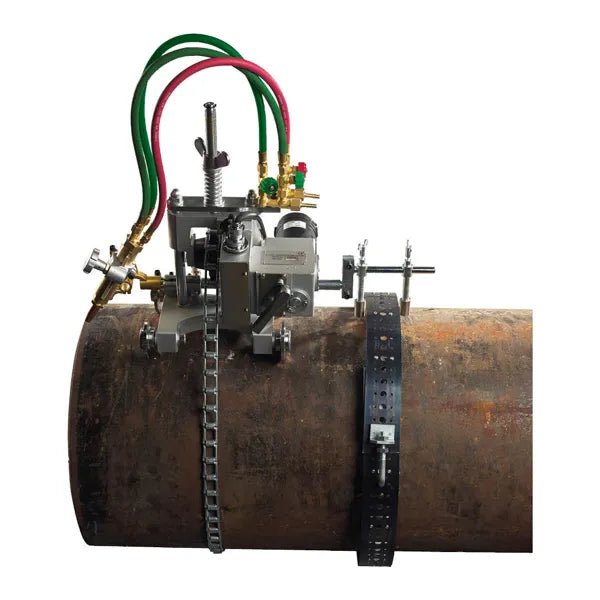

The Mathey E-Z Pipecut Flame Cutter Manual - EZPCM is a compact and reliable solution for precision pipe cutting and beveling. Designed for cutting and beveling pipes with wall thicknesses ranging from 5 mm to 50 mm, this oxy-fuel, chain-driven machine provides an economical option without compromising performance. Whether used on-site or in a workshop, it is an indispensable tool for contractors, welders, and pipefitters looking for durability and precision.
Engineered with a low gear ratio and worm wheel drive, the E-Z Pipecut Manual ensures smooth and accurate cutting action. Its quick-release clutch allows operators to disengage the chain from the drive cog, enabling rapid setup and positioning. The adjustable beveling head can achieve angles of up to 45°, with easy and accurate adjustments made via a rack-and-pinion scale. The machine’s compact design ensures portability while delivering robust performance in demanding industrial environments.
This flame cutter includes a standard chain for cutting pipe diameters from 4½" to 24" (114 - 600 mm) and comes with a comprehensive operation manual for optimal performance and safety. The Mathey E-Z Pipecut Manual is ideal for professionals seeking efficiency, precision, and ease of use in pipe cutting and beveling tasks.
Key Features:
- Economical Solution: Designed for cutting and beveling pipes with wall thicknesses from 5 mm to 50 mm.
- Compact and Portable: Easy to transport, making it suitable for on-site and workshop use.
- Efficient Cutting Mechanism: Features a low gear ratio and worm wheel drive for smooth and accurate cuts.
- Quick-Release Clutch: Allows rapid chain disengagement for fast setup and positioning.
- Adjustable Beveling Head: Achieves up to 45° angles with precision rack-and-pinion adjustments.
- Included Components: Comes with a standard chain for pipe diameters 4½" to 24" (114 - 600 mm) and a user manual for guidance.
The Mathey E-Z Pipecut Flame Cutter Manual - EZPCM is the ultimate tool for achieving clean, precise cuts with ease and efficiency, making it a must-have for industrial and professional pipe-cutting applications.
| Technical Specification | Details |
| Part No | EZPCM |
| Power Supply | Manual driven unit |
| Pipe Diameter | Up to 600 mm (in standard configuration) |
| Wall Thickness | 5 - 50 mm |
| Torch | Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzles (nozzles not included) |
| Cut/Bevel Angle | Variable up to 45° |
| Vertical Torch Adjustment (+/-) | 50 mm |
| Lateral Torch Adjustment (+/-) | 100 mm |
| Track Width | 230 mm |
| Weight | 8.50 kg / 18.70 lbs |
| Dimensions | 350 (l) x 420 (w) x 550 (h) mm |
