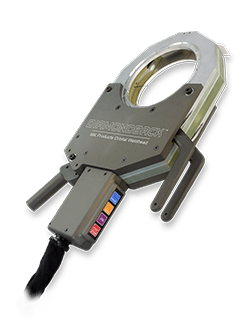

The MK Products Diamondback™ is our largest in-place orbital weldhead. Heavy duty and versatile, the Diamondback™ has a narrow profile and is perfect for process piping and weld fitting applications found in food & beverage, dairy and other sanitary process piping installations. Also great for highpressure aerospace applications, this easy to use weldhead is simple yet robust to meet the demands of field construction or manufacturing production environments.
Features
- Weldable Tube Range: 2" Tube OD to 6" Tube OD
- Weldable Nominal Pipe Range: 2" Nominal Pipe to 5" Nominal Pipe
- 3-Piece Collet Design for Precision Self-Centering of Tube or Pipe
- Operator Flexibility: Flip-Top and View Lens aid Fit-Up, Alignment & Inspection
- Ergonomically Perfect with 7 Function, Push Button Fingertip Control Built into the Weldhead
- Advanced Design includes Jaw Style Clamping, 360° Head Rotation and 90° Tilt Action. Rugged Machined Aluminum Handles Eliminates Handling of Weldhead Body
- Standard cable lengths of 25ft (7.6m)
The Diamondback™ Orbital Weldhead is engineered to provide exceptional performance and versatility for large-diameter tube and pipe welding. Its ability to handle a wide range of sizes from 2" to 6" OD makes it an invaluable tool for various industries requiring high-quality orbital welds.
The 3-Piece Collet Design ensures precise self-centering of tubes and pipes, crucial for achieving consistent, high-integrity welds. The Flip-Top and View Lens features enhance operator flexibility, allowing for easy fit-up, alignment, and inspection of welds.
With its ergonomic design, including 7-function push-button fingertip control built into the weldhead, the Diamondback™ offers unparalleled ease of use. The advanced design incorporates jaw-style clamping, 360° head rotation, and 90° tilt action, providing operators with the flexibility to tackle complex welding tasks in various positions.
The rugged machined aluminum handles not only provide durability but also eliminate the need for direct handling of the weldhead body, enhancing operator safety and comfort during prolonged use.
Technical Specifications
- Model: Diamondback™ Orbital Weldhead
- Brand: MK Products
- Tube Size Range: 2" to 6" OD
- Nominal Pipe Range: 2" to 5"
- Cable Length: 25ft (7.6m)
- Part Number: 5006
