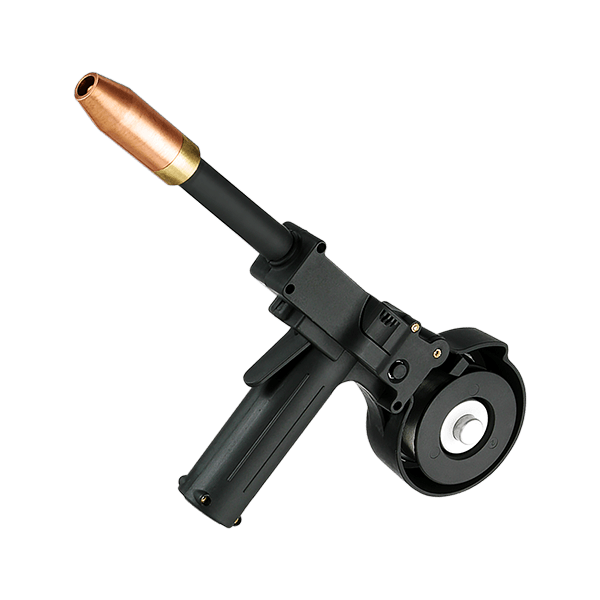

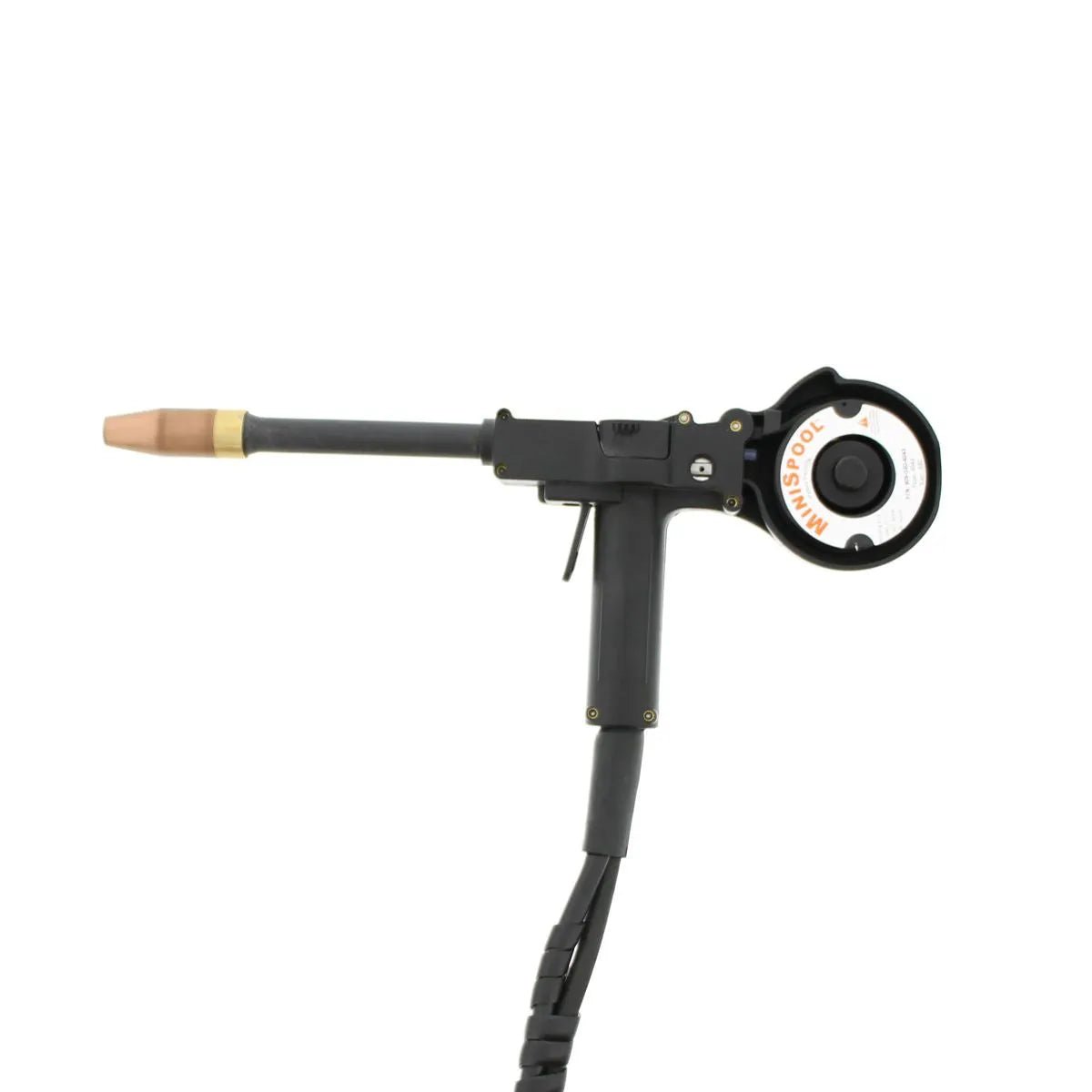

The MK Products Sidewinder MiniSpool Gun is a compact, lightweight spool gun engineered to deliver smooth, consistent aluminum wire feeding for portable and production welding. This pistol-grip gun feeds 1/4 lb. MiniSpool welding wire directly at the gun, eliminating the feedability problems that come with pushing soft aluminum wire through long leads. It handles .030” – .035” aluminum wire and is purpose-built for clean, reliable aluminum welds. Its balanced, ergonomic design provides hours of comfortable use, and the rugged, time-tested construction is built to withstand demanding production environments. Available in 15’ and 25’ leads, rated at 135 amps and a 60% duty cycle, and proudly made in the USA.
Key Features:
- Compact, lightweight pistol-grip spool gun for portable aluminum welding.
- Uses 1/4 lb. MiniSpool welding wire loaded directly at the gun.
- Feeds wire right at the gun to eliminate feedability issues over long lead lengths.
- Ideal for soft aluminum wire that is difficult to push through a conventional gun.
- Ergonomic, balanced design for hours of comfortable use.
- Rugged, time-tested construction built to withstand demanding environments.
- Available in 15’ and 25’ leads.
- For .030” – .035” aluminum wire.
Specifications:
- Wire Sizes: .030” – .035” (0.8mm – 0.9mm) Aluminum Wire (MiniSpool 1/4 lb welding wire is required for use with this gun)
- Wire Speed: 600 IPM
- Spool Size: 1/4 lb. Spools
- Duty Cycle – 60%: 135 AMPS – Air Cooled (all ratings using Argon gas)
- Country of Origin: USA
