The VPAC® (Variable Polarity Alternating Current) module is an add-on accessory to the ACL Orbital tube welding system. Incorporating a VPAC® into your system will provide access to the advanced parameters for AC welding with full control over pulse time in straight and reverse polarities. The ability to change parameters at each individual weld level gives the user complete control over the entire weld.
Key Features
- Variable Polarity Alternating Current
- Ability to change weld parameters at each individual weld level
- Unlocks advanced features and parameters
- Full control over pulse time in straight and reverse polarities
- Complete control over entire weld
The VPAC Variable Polarity Controller is designed to enhance the capabilities of the ACL Orbital tube welding system, providing users with unprecedented control over AC welding parameters. This module allows for fine-tuning of the welding process, resulting in higher quality welds and increased efficiency in orbital tube welding applications.
By offering the ability to adjust parameters at each individual weld level, the VPAC enables welders to optimize the welding process for different sections of the tube, accounting for variations in material thickness or composition. This level of control is particularly valuable in industries where weld quality and consistency are critical, such as aerospace, semiconductor manufacturing, and pharmaceutical production.
The full control over pulse time in both straight and reverse polarities allows for precise management of heat input and cleaning action during the welding process. This feature is especially beneficial when working with materials that require specific heat control or when dealing with oxidized surfaces.
Technical Information
- Power: 120 VAC (+/- 10%) 50/60 Hz, 0.5 Amps
- Current Capability: 200 Amps throughput
- Fuse: 1 Amp, 250V (AGC type)
- Dimensions: 23"L x 5.8"H x 13.25"W
- Weight: 25.0 lbs.
The VPAC's compact design and moderate weight make it a practical addition to existing welding setups, while its robust construction ensures reliability in demanding industrial environments. Its integration with the ACL Orbital tube welding system provides a comprehensive solution for advanced orbital welding applications, offering the precision and control needed for critical welding tasks.
Technical Specifications

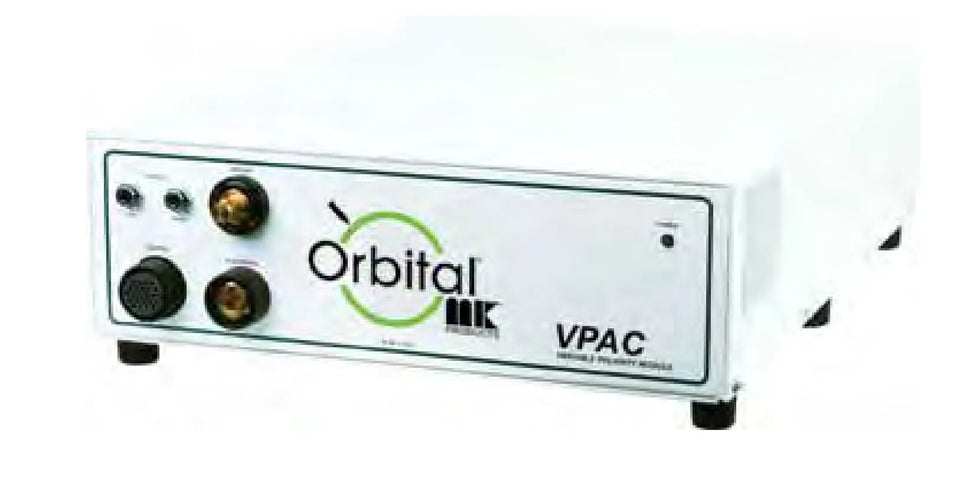

- Model: VPAC Variable Polarity Controller
- Brand: MK Products
- Part Number: - 001-1575
