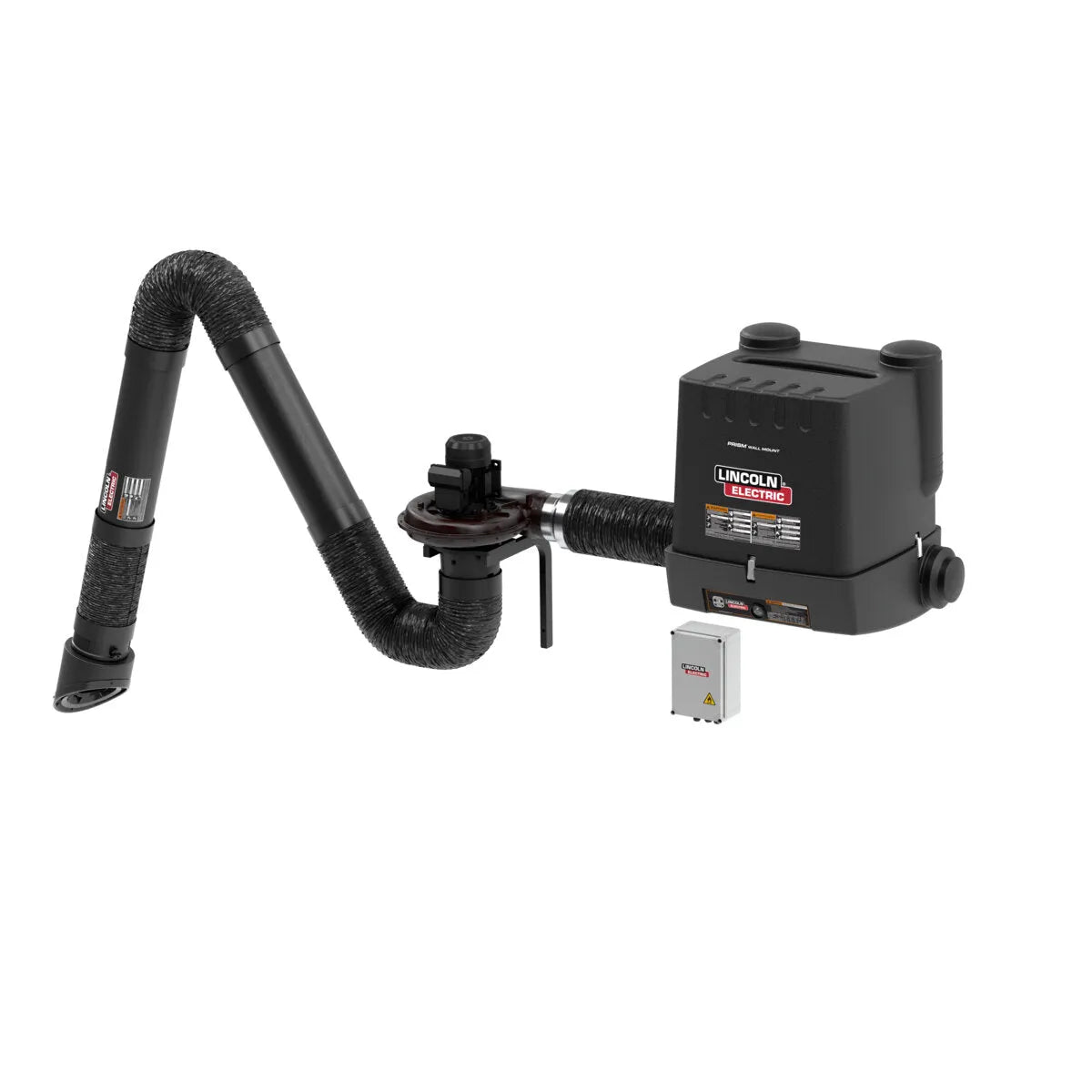

Lincoln Prism Wall Mount One Pak MERV 14, Single Flexible 10 ft. Arm, Arc Sensor K4261-6

SKU: K4261-6
$6,469.83 $6,820.80

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $294/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Prism Wall Mount One-Pak with MERV 14 filter comes with a Prism 2400 stationary fan, an Arc Sensor/ Lamp Kit, and a flexible 10 ft. fume extraction arm. Capable of providing 735 SCFM in single arm configuration.
Overview
Lincoln Prism Wall Mount One Pak MERV 14, Single Flexible 10 ft. Arm, Arc Sensor K4261-6
FUMES DON’T STAND A CHANCE The Prism Wall Mount units are stationary, wall-mounted low vacuum systems intended for light to medium duty extraction and filtration of welding fume. Ideal for job shops, welding schools and maintenance departments, the Prism Wall Mount unit is designed for facilities with fixed work stations and limited floor space. The One-Pak packages help simplify the selection process.

Features
  • Single Arm Configuration Flexible 10 ft. Extraction Arm
  • Generous Airflow Comes with Prism 2400 Fan (115V, 1 Phase, 60 Hz, 1 HP) that have self-cleaning concave blades and provide a 735 CFM with Prism Flexible 13 ft. Extraction Arm
  • Disposable MERV 14 Filter 3D pleated filter structure with 538 ft² (50 m²) capacity
  • Spark Arrestor Functions as a pre-filter for larger-sized particulate
  • Arc Sensor/ Lamp Kit Turns the fan on when the arc flash is sensed. Hood-mounted lamp/fan switch allows for easy manual light/fan operation
Specifications
FeatureValue
Typical Applications Automotive
General Fabrication
Heavy Fabrication
Maintenance & Repair
Repair Welding
Robotics
Shipbuilding
Structural Fabrication
Includes
  • (1) K1654-4 Prism Wall Mount Base Unit - Disposable Filter
  • (1) K1655-8 Flexible 10 ft. Arm
  • (1) K1669-4 Arc Sensor/ Lamp Kit
  • (1) K1656-9 Prism 2400 1 HP Stationary Fan
