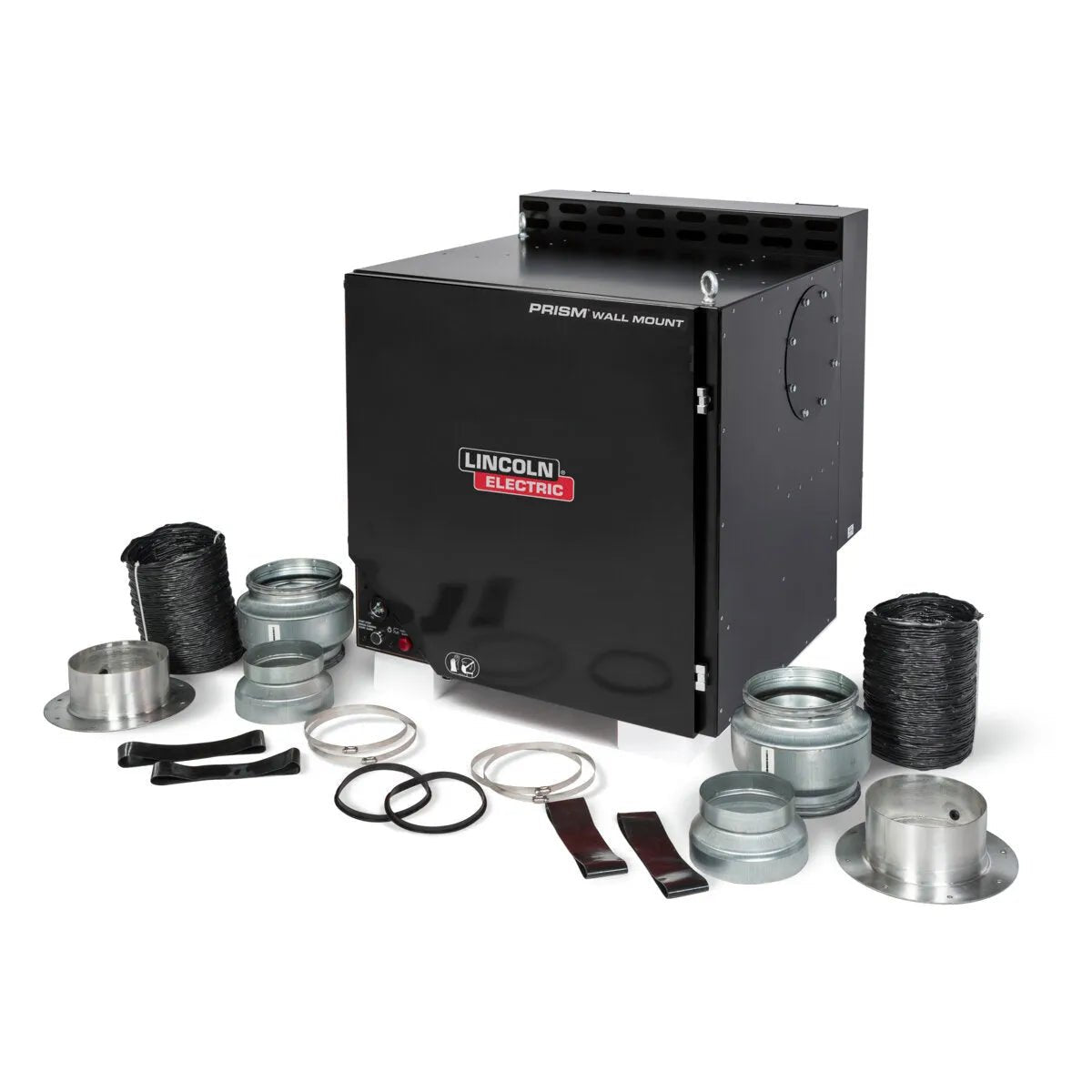

Lincoln Prism Wall Mount with Mechanized Cleaning w/MERV 16 Filter Dual Arm Base Unit K3681-2
FUMES DON’T STAND A CHANCE
The Prism Wall Mount with mechanized cleaning units are stationary; wall-mounted low vacuum systems intended for heavy duty extraction and filtration of welding fume. Ideal for job shops; welding schools and maintenance departments; the Prism Wall Mount with mechanized cleaning is designed for facilities with fixed work stations and limited floor space.
- Reduction of dust and dirt in operator work environment
- Generously sized filters allow for lower operational costs
FEATURES
- Generous Airflow:
- Dual Arm: 1200 CFM with flexible 10 Ft. or 13 Ft. extraction arms and Prism 2400 1 HP fan
- Spark Arrestor: Functions as a pre-filter for larger-sized particulate and also deadens sparks
- Pleated filter structure
- Filter capacity: 568 ft²(52 m²)
Features
- Dual arm capacity with optional extended reach up to 27 ft.
- Self-cleaning filters cut down on filter replacement costs
- Front loading filters for ease of access
- Integrated Spark Arrestor

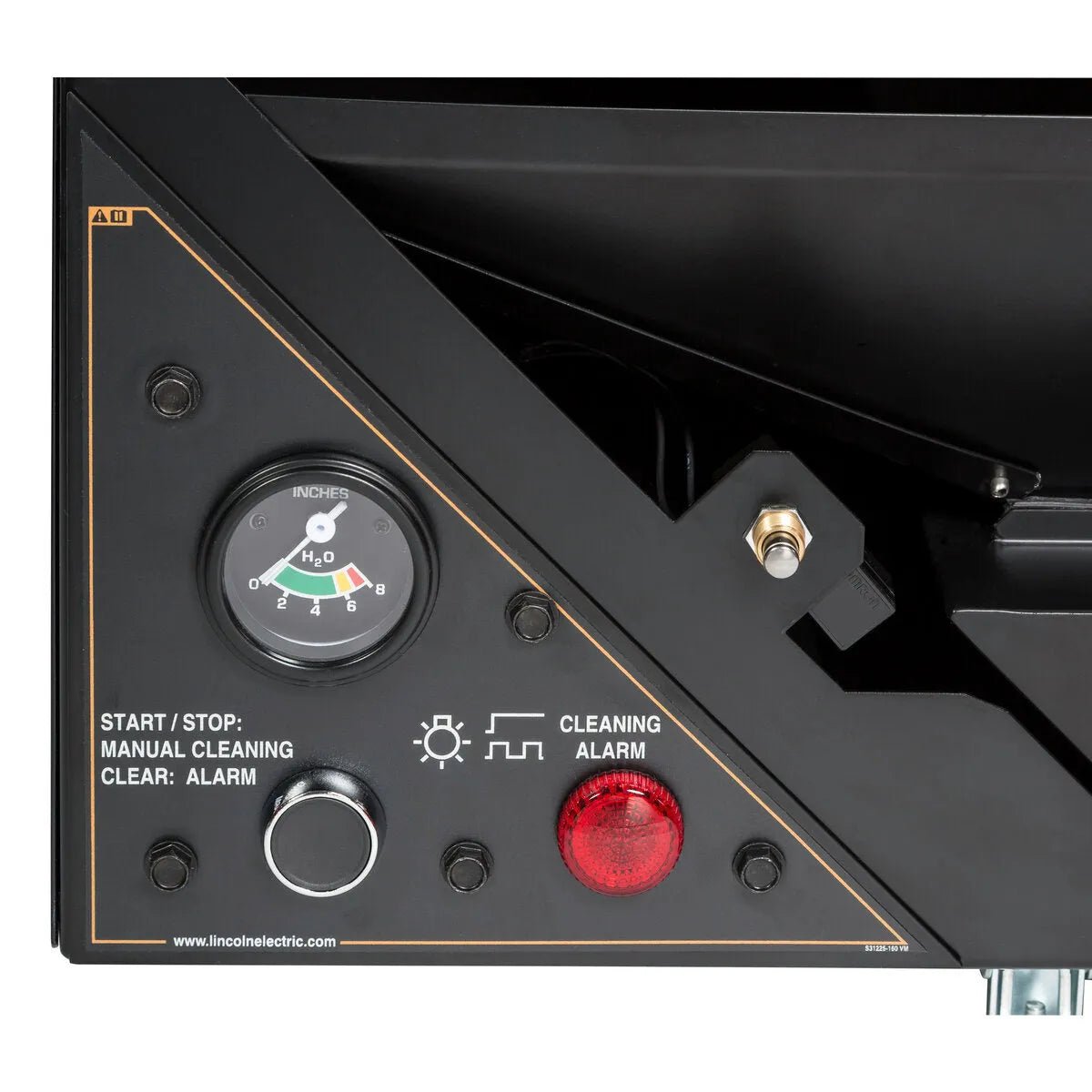

- Air pressure gauge indicates when filters need replaced
