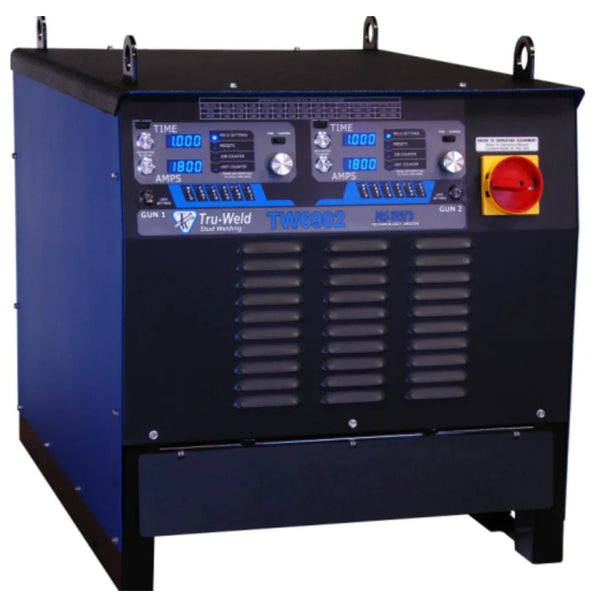

The TruWeld TW6902 is a fully-integrated, dual-gun stud welding system with two digital controls for time and current. The system was designed to meet the most challenging stud welding jobs up to 1-1/4" to include weld thru-deck applications (this also includes G90 decking).
Key Features
- Fully-integrated, dual-gun stud welding system with two digital controls for time and current
- Designed to meet the most challenging stud welding jobs up to 1-1/4"
- Includes weld thru-deck applications (including G90 decking)
- PRO-TECH'D technology protects the gun circuitry
- Improved user interface for more intuitive setup
- Factory presets and user customizable presets
- Optimal weld control
- 3000 Amp Power Supply included
- 2 TWE17000 Heavy Duty Stud Guns included
- 2 Cable Sets of 50 feet of 4/0 Weld and Control Cable included
- 2 25 foot 4/0 Grounds w/HD Clamp included
- Smooth arc curve allows for wide range of welding
- Enhanced duty cycle for production requirements
- Powerful output for even the largest diameter jobs
- Stepless time and current control allow for infinite settings for fine tuning the welding output
- Safety welding interlock keeps system from double triggering and saves on chuck wear
- Stud Job counter which can be reset per job
- Wheel Kit attachment available upon request
