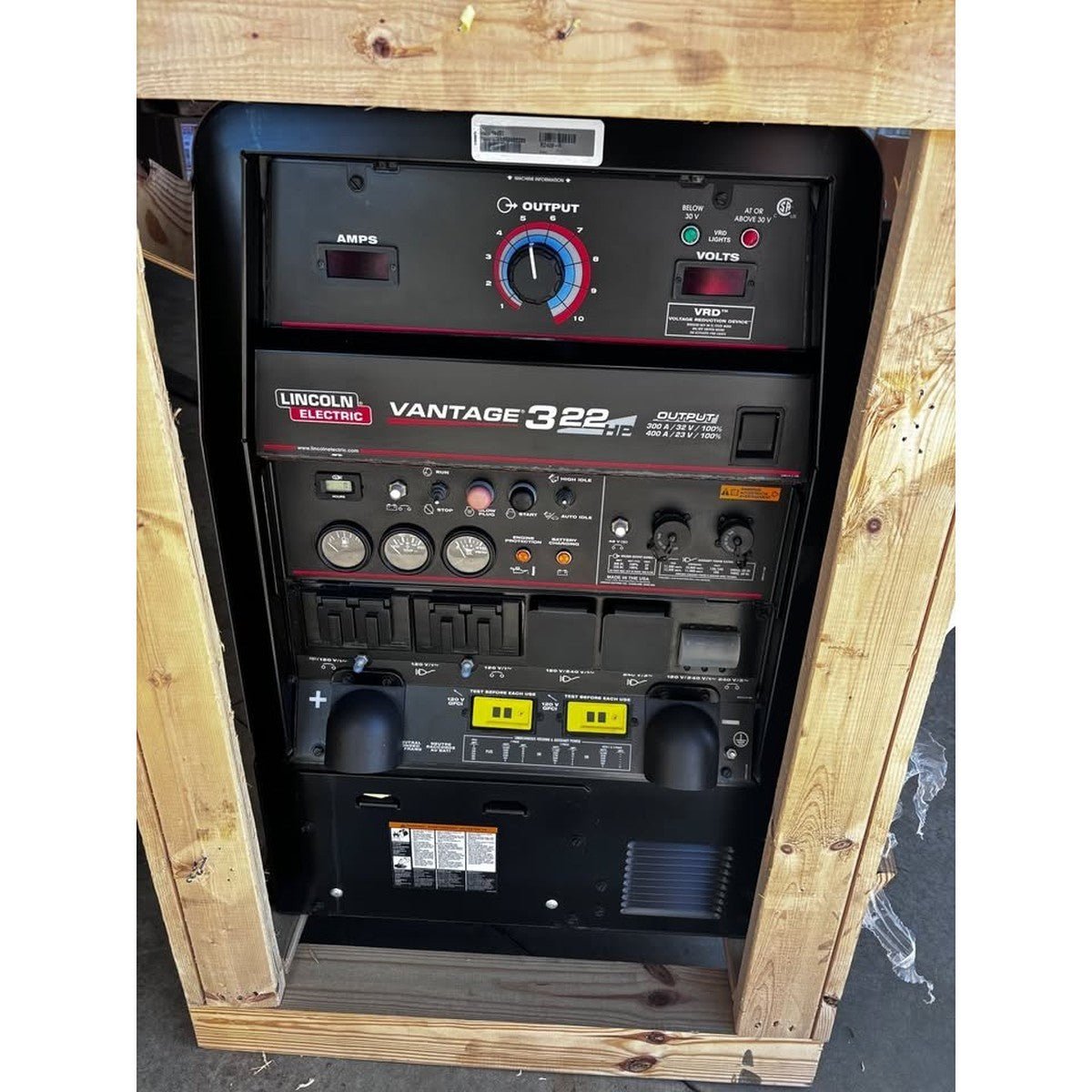

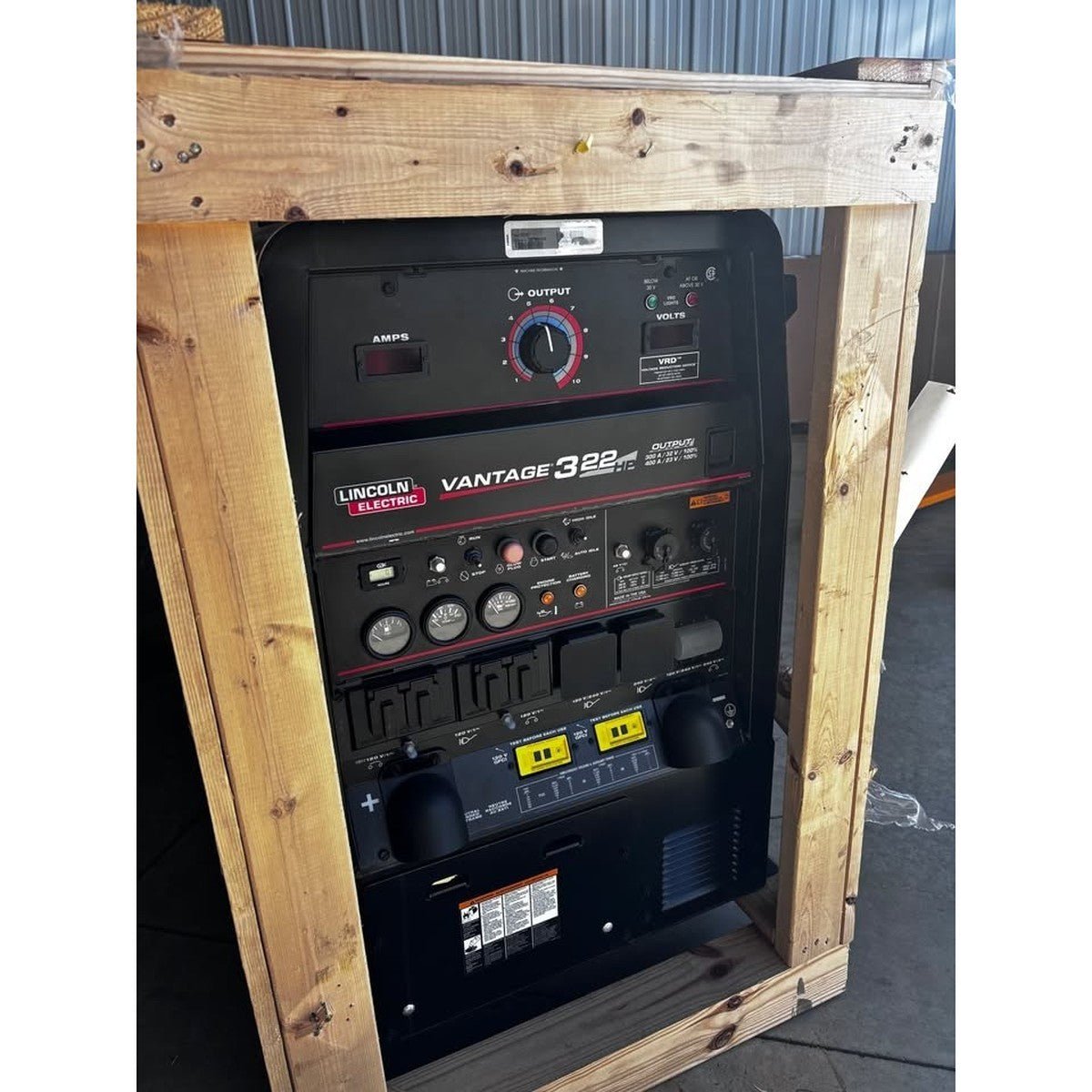

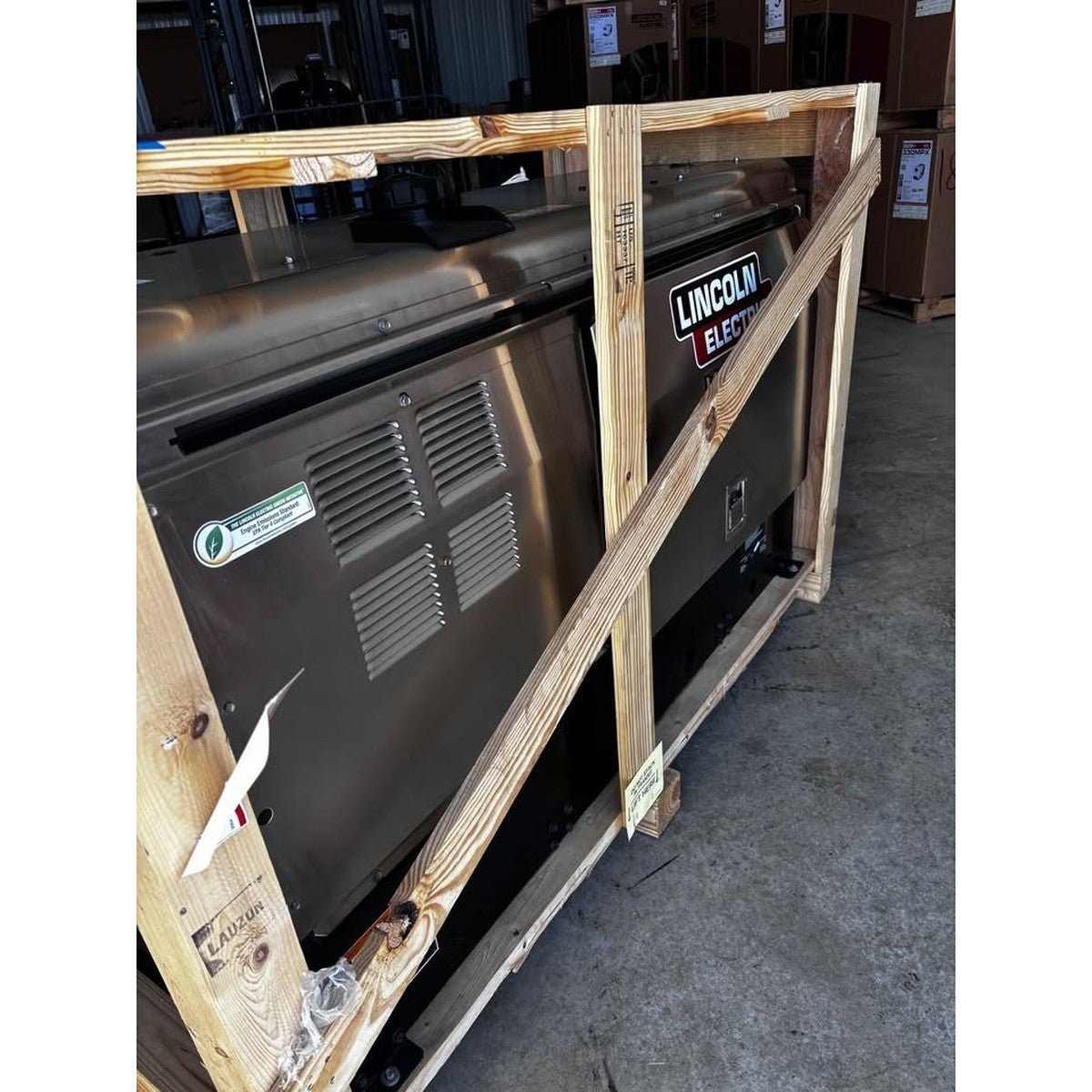

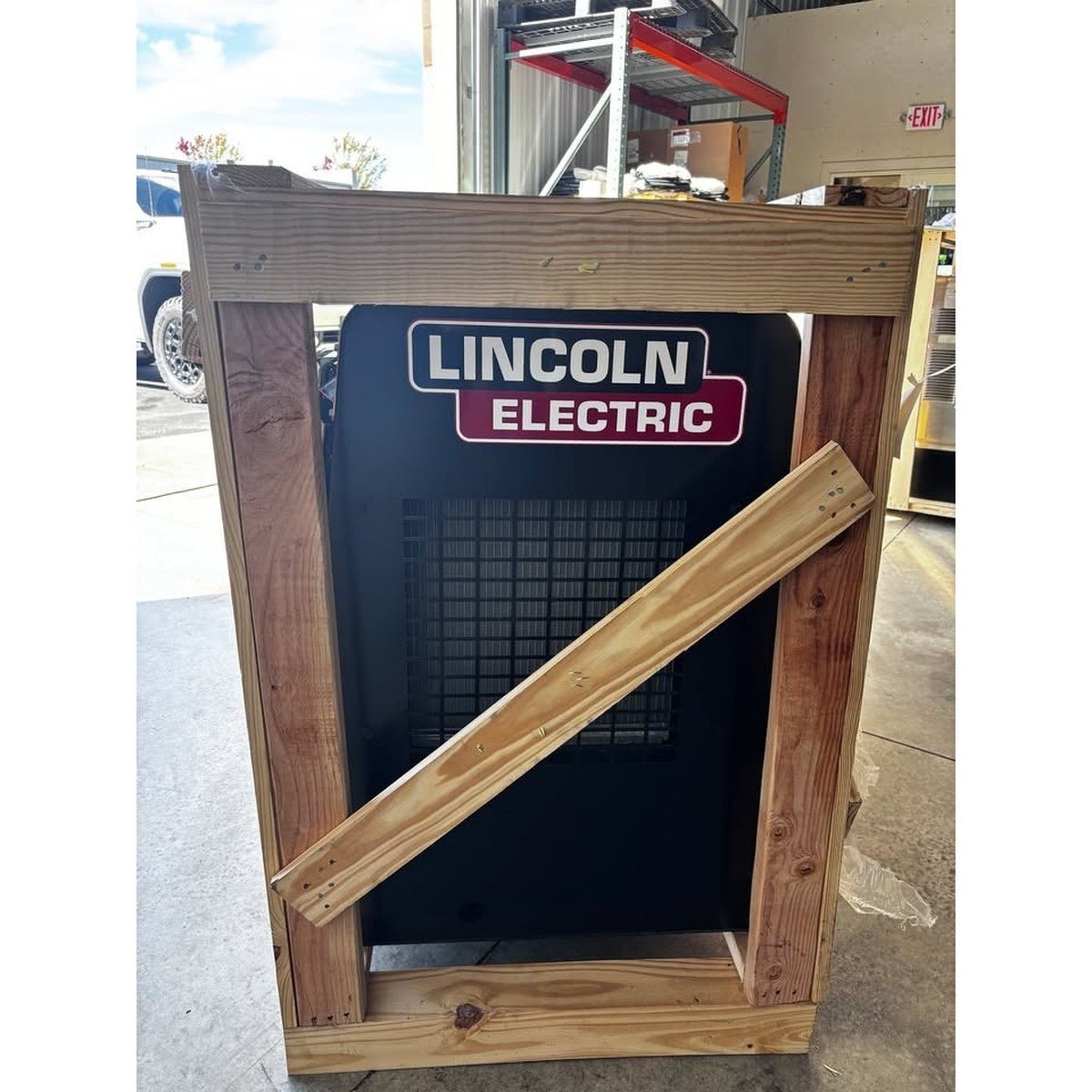

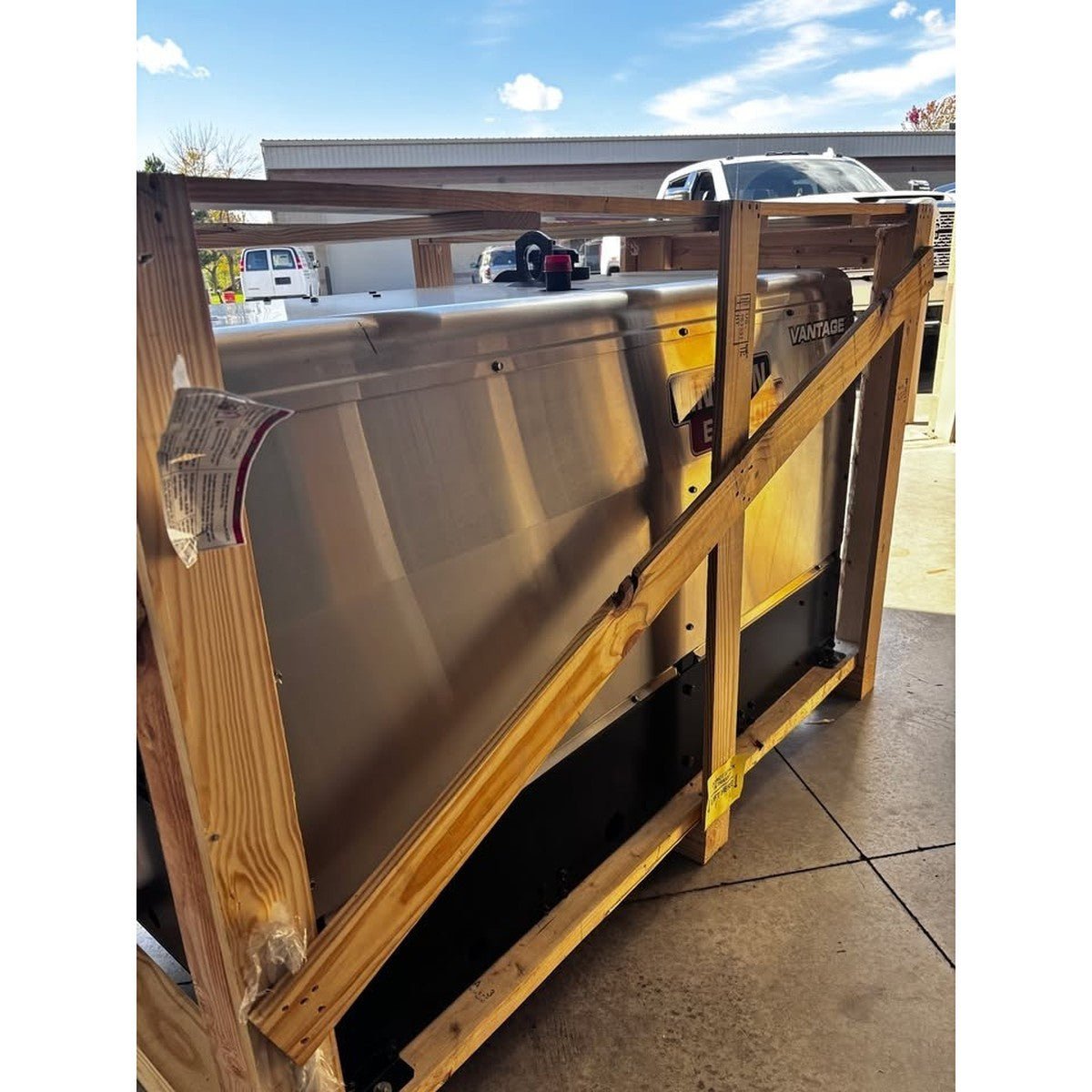

Compact. Multi-Process. Excellent Value. This used Lincoln® Vantage® 322 (K2409-5) diesel engine driven welder generator gives contractors, fabricators, farmers and maintenance crews dependable Lincoln Electric performance without new-equipment pricing. Powered by a 22 hp Kubota® V1505 diesel engine, it delivers up to 400 amps of DC multi-process welding output plus 11 kW of continuous three-phase and 10 kW of single-phase auxiliary power for tools and equipment on remote jobsites. Each unit is professionally inspected, available in 2024 and 2025 model years, and backed by a 1-Year Limited Lincoln Electric Warranty.
Features
- Compact Versatility - Up to 400 amps (IEC rated at 300 amps) with five process modes: CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire and Arc Gouging up to 5/16 in (8.0 mm) carbons.
- Chopper Technology® - Premium arc performance with minimized spatter for stick and pipe welding and smooth gouging without stalling the engine.
- Generator Output - 11 kW continuous three-phase (12.5 kW peak) and 10 kW continuous single-phase (11.5 kW peak) power for plasma cutters, pumps and inverter welders.
- Industrial Diesel Engine - 22 hp naturally aspirated, water-cooled Kubota V1505 that runs smooth and quiet and meets EPA Tier 4 Final.
- Run Longer Between Fill-Ups - Large 20 gal (75.7 L) fuel tank for extended runtime on remote jobsites.
- Easy Service Access - Lockable, removable sliding access door, front battery drawer and top radiator access.
- Condition - Used and professionally inspected. These machines may show normal cosmetic wear such as scratches, scuffs or paint wear. Hours and cosmetic condition vary by unit; contact us for details on a specific machine.
- Sold by an Elite Lincoln Electric Dealer - Buy with confidence from WeldingMart.com in Kaukauna, Wisconsin, with dealer support for parts, accessories and setup.
- Warranty - 1-Year Limited Lincoln Electric Warranty included from date of purchase.
