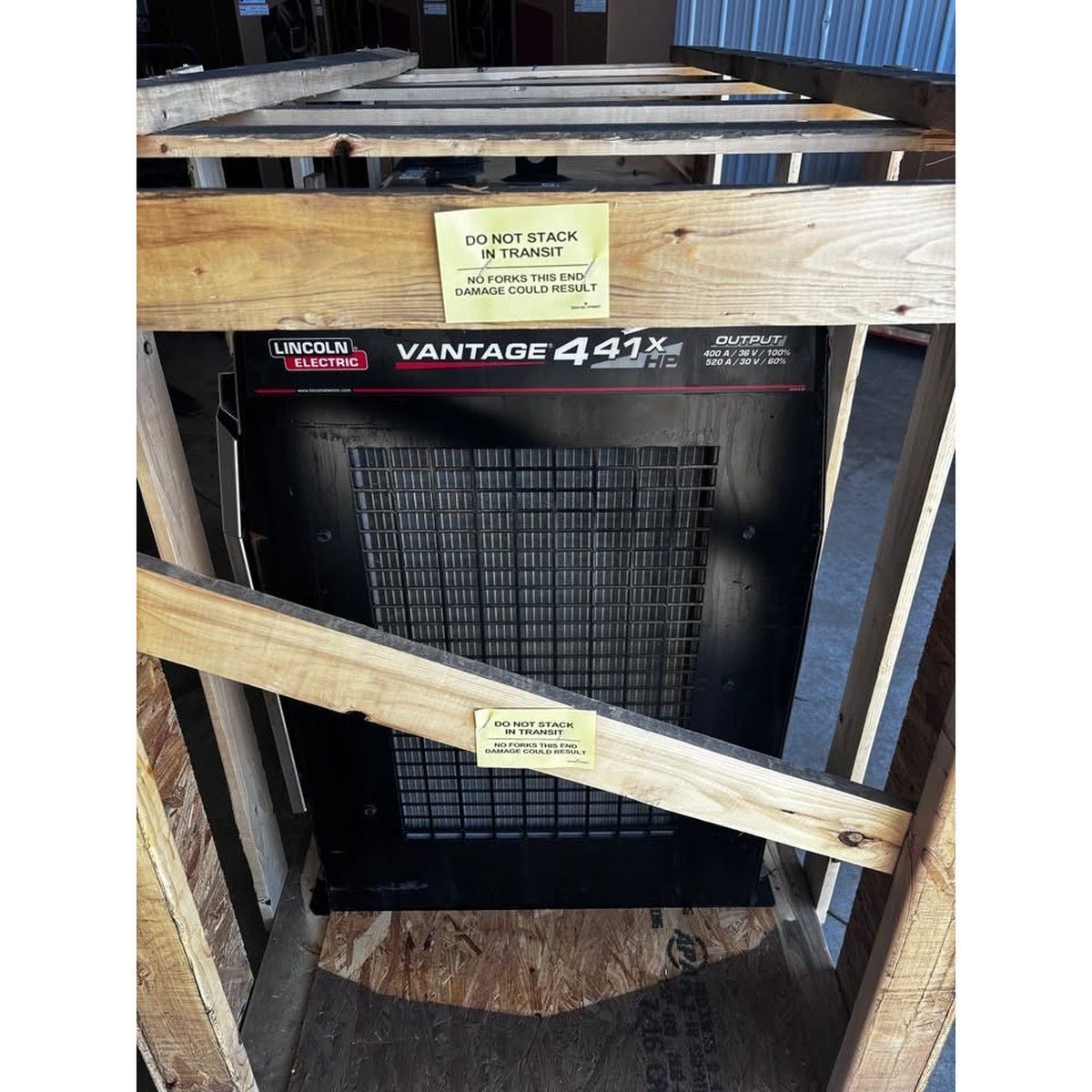

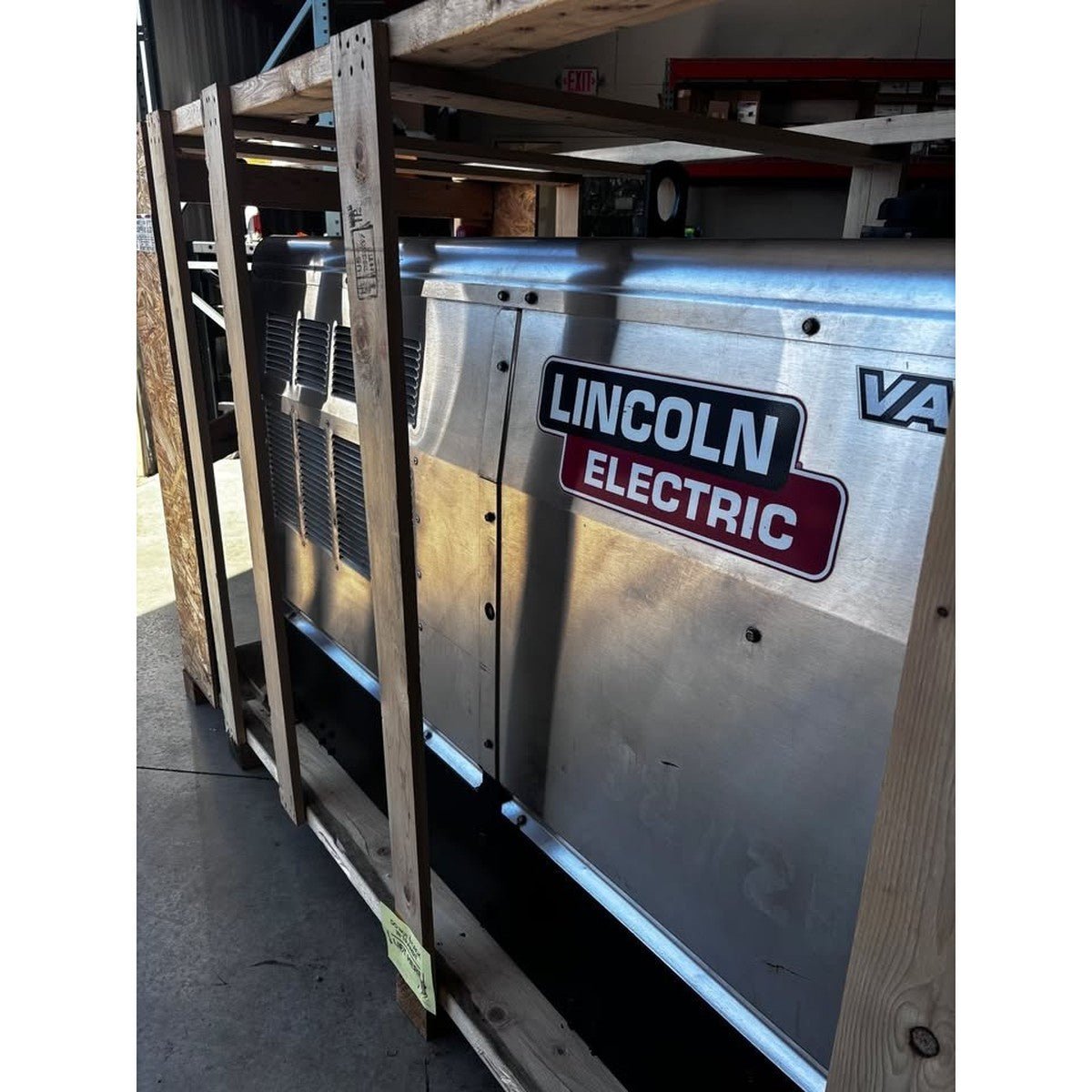

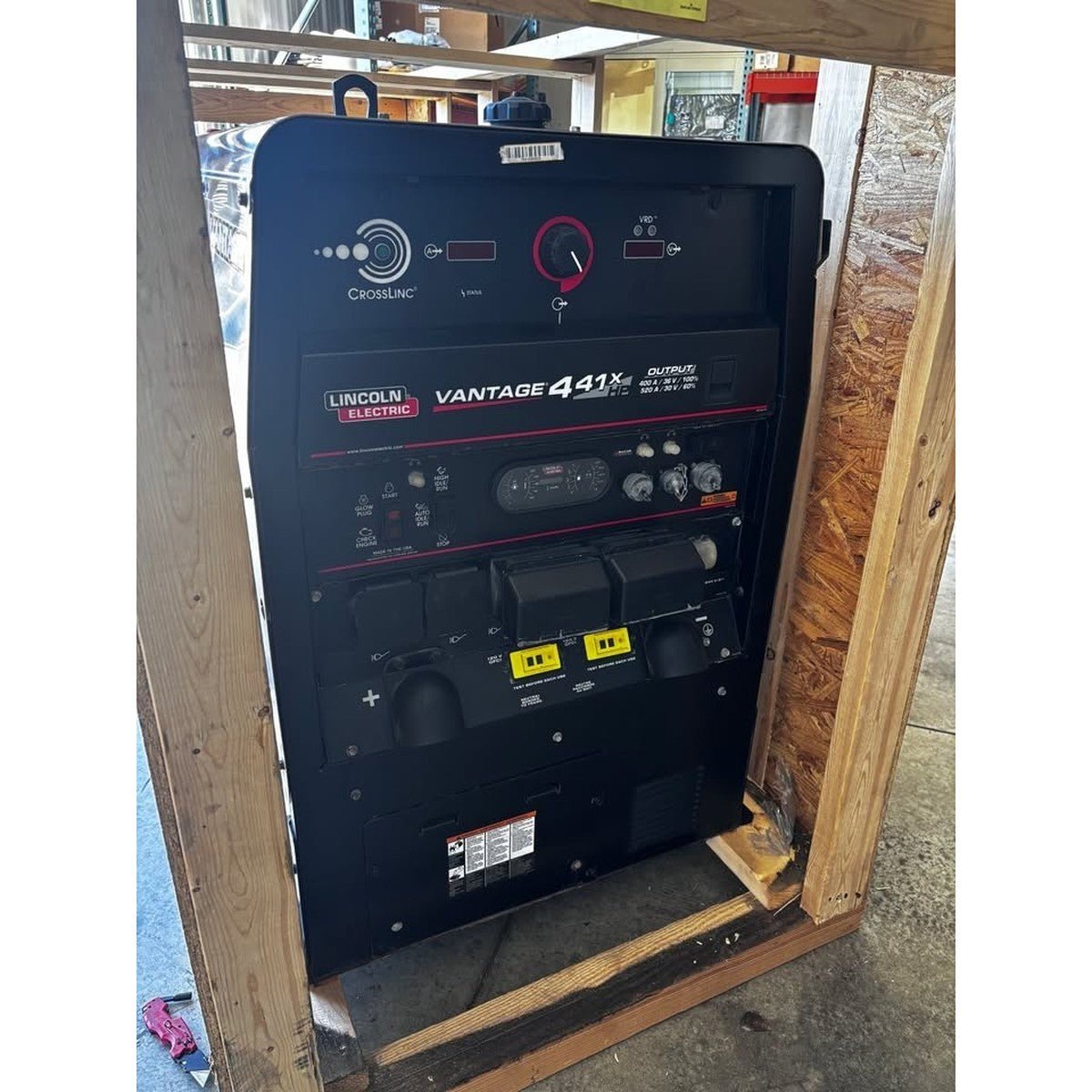

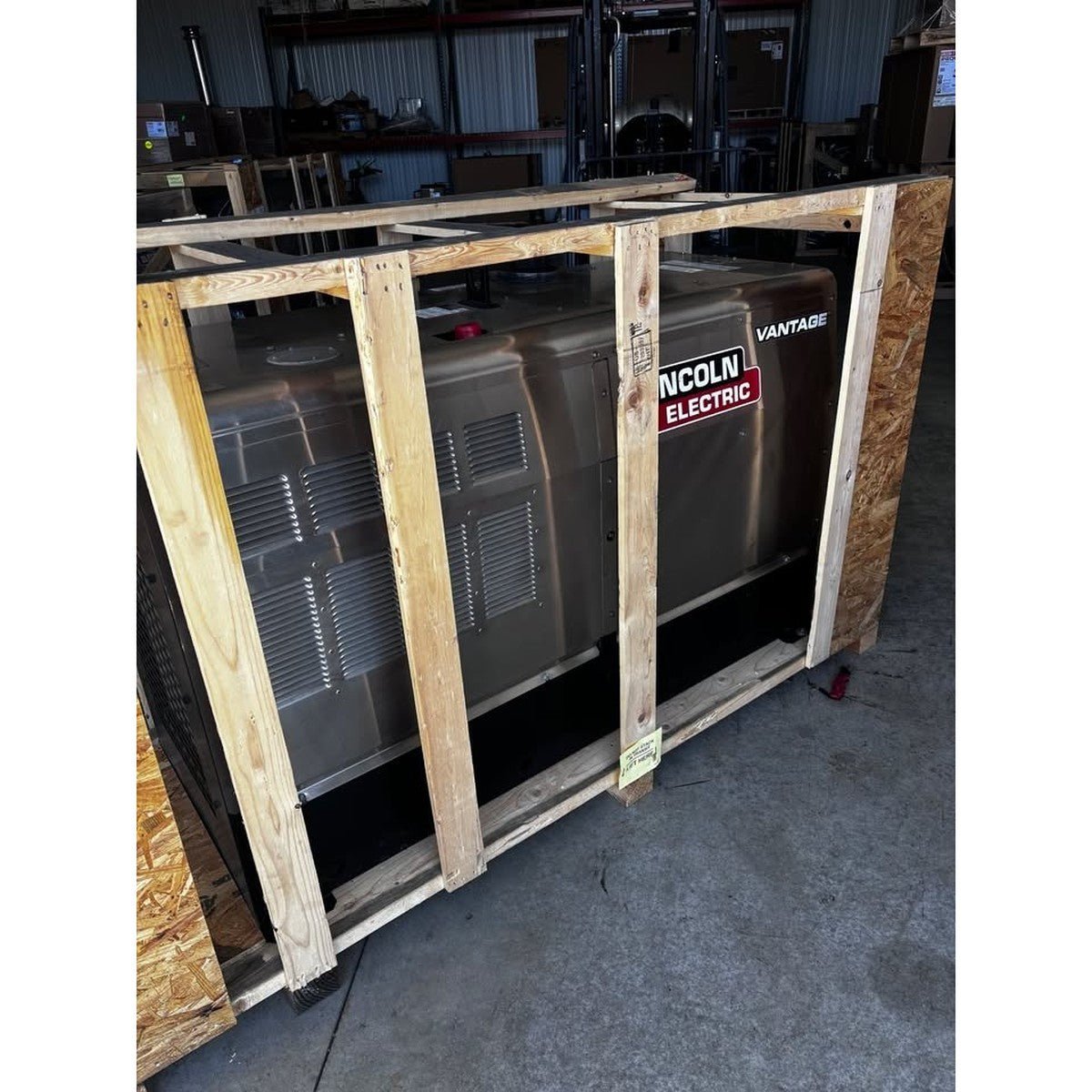

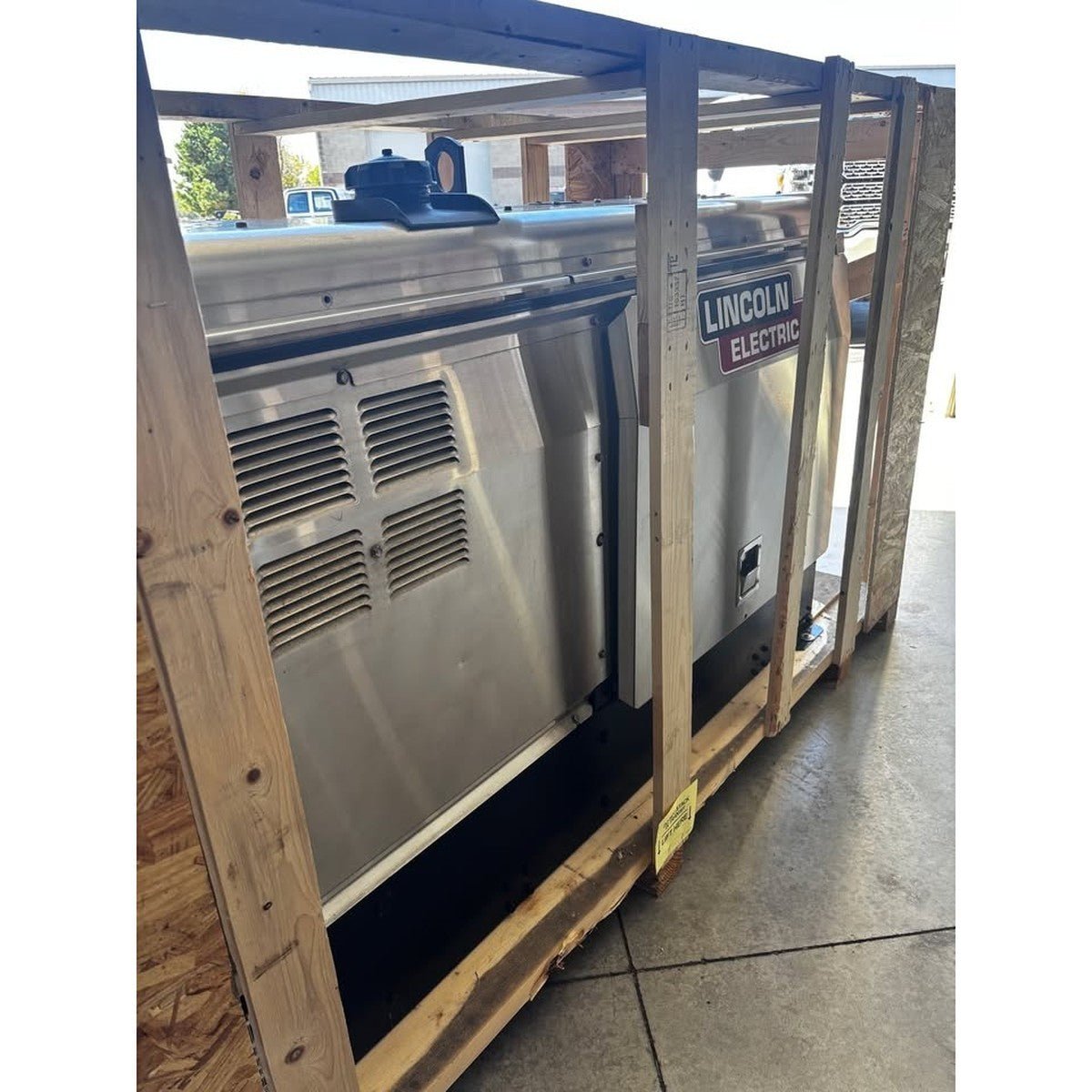

Lincoln Vantage 441X Perkins Engine Driven Welder (Used) - R4535-1

SKU: R4535-1
$23,995.00

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
Used Lincoln Vantage 441X Perkins diesel welder generator, 520A multi-process with 17 kW 3-phase power and CrossLinc. Inspected 2022-2023 units with a 1-year Lincoln warranty.
Overview

More Power for Heavier Wires and Bigger Gouging. This used Lincoln® Vantage® 441X (K4535-1) is a heavy-duty diesel engine driven welder generator for construction, pipeline, structural steel, heavy equipment repair and industrial maintenance work. A 41 hp turbocharged Perkins® 404F-E22T engine delivers up to 520 amps of DC multi-process welding output and 17 kW of continuous three-phase auxiliary power, with CrossLinc® technology for full output control at the arc. Each unit is professionally inspected, available in 2022 and 2023 model years, and backed by a 1-Year Limited Lincoln Electric Warranty.

Features
  • Enhanced Power and Performance - Up to 520 amps (IEC rated at 400 amps) with five process modes: CC-Stick, Downhill Pipe, Touch Start TIG®, CV-Wire and Arc Gouging up to 3/8 in (9.5 mm) carbons.
  • Generator Output - 17 kW continuous three-phase and 11 kW continuous single-phase power to run plasma cutters, pumps and inverter welders.
  • Chopper Technology® - Premium arc performance with minimized spatter and enhanced gouging that keeps the engine from stalling.
  • Expanded Welding Capabilities - Customized modes for stainless, aluminum and steel, plus SAW, orbital pipe and pulse welding for out-of-position work.
  • CrossLinc® Enabled - Voltage or current control at the arc through a standard weld cable with no control cable needed.

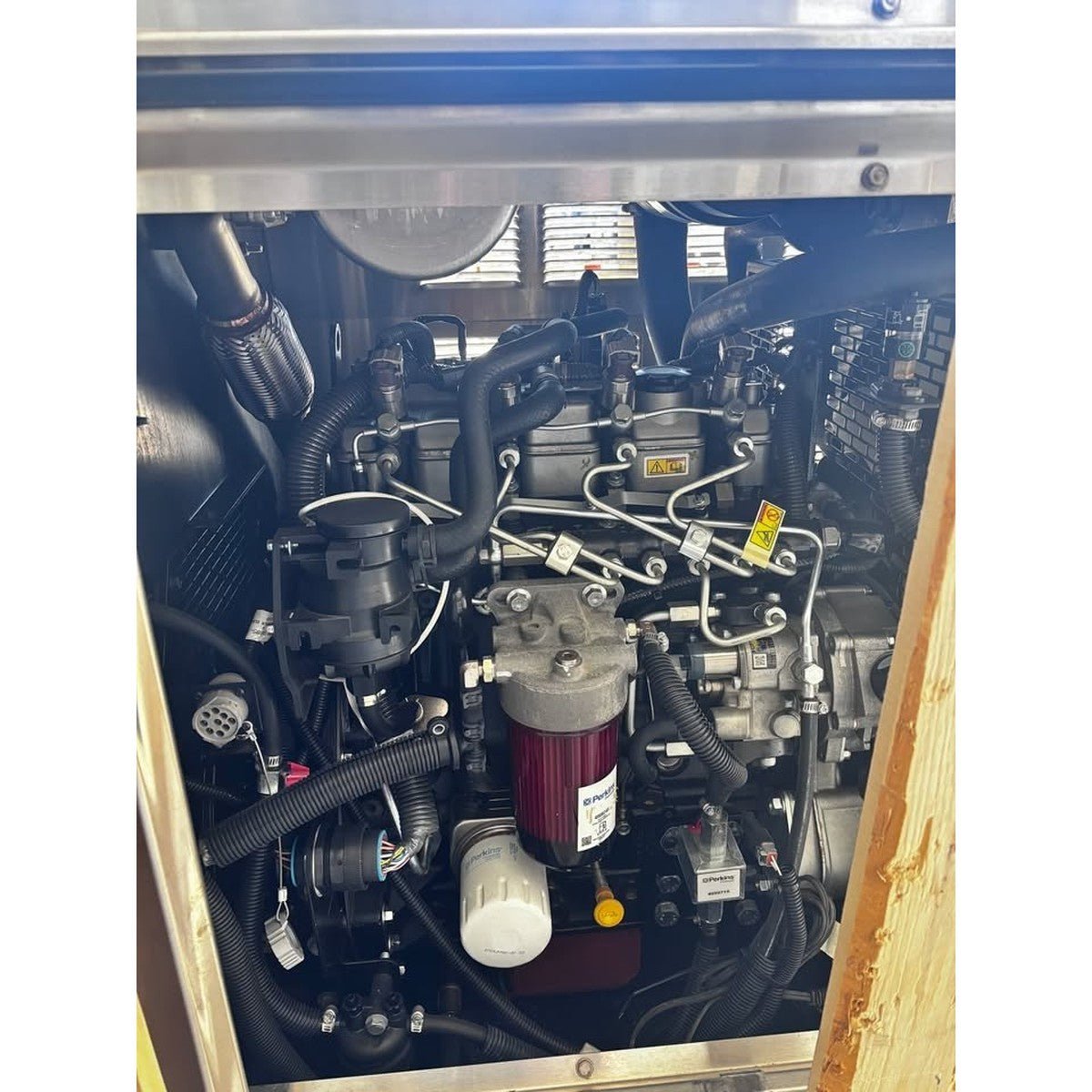

  • Industrial Diesel Engine - 41 hp turbocharged, water-cooled Perkins 404F-E22T with excellent cold-weather starting and high-altitude operation, EPA Tier 4 Final.
  • Reliable Operations - Field-proven ruggedness and durability for the harshest jobsite environments.
  • Condition - Used and professionally inspected. These machines may show normal cosmetic wear such as scratches, scuffs or paint wear. Hours and cosmetic condition vary by unit; contact us for details on a specific machine.
  • Sold by an Elite Lincoln Electric Dealer - Buy with confidence from WeldingMart.com in Kaukauna, Wisconsin, with dealer support for parts, accessories and setup.
  • Warranty - 1-Year Limited Lincoln Electric Warranty included from date of purchase.
Specifications

Specifications

Model / Part Number — Vantage 441X, K4535-1 (used)
Model Years Available — 2022 and 2023
Processes — Stick (SMAW), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW-S / FCAW-G), Arc Gouging (CAC-A)
Rated Output — IEC: 400A / 36V / 100% @ 104°F (40°C); Max: 520A / 30V / 60%
Output Range — CC-Stick 30-525A; Downhill Pipe 40-350A; Touch Start TIG 20-350A; CV-Wire 10-45V; Arc Gouging 60-525A
Rated Gouging Carbon — 3/8 in (9.5 mm)
Open Circuit Voltage — 70 peak OCV @ 1800 RPM
Communication Technology — CrossLinc, ArcLink
Single-Phase Auxiliary Power — 11,000W continuous, 120/240V, 60 Hz
Three-Phase Auxiliary Power — 17,000W continuous, 240V, 60 Hz
Receptacles — NEMA 5-20R (120V / 20A / 1-phase); NEMA 14-50R (120/240V / 50A / 1-phase); NEMA 15-50R (240V / 50A / 3-phase)
Engine — Perkins 404F-E22T, 4 cylinder turbocharged water-cooled diesel, 41.0 hp (30.6 kW), 134 cu in (2.2 L)
Emissions — US EPA Tier 4 Final
Engine Speed — 1,800 RPM high idle / 1,500 RPM low idle
Fuel Tank — 20 gal (75.7 L)
Oil Capacity — 10.0 qt (9.5 L)
Coolant Capacity — 2.55 gal (9.7 L)
Enclosure Rating — IP23
Dimensions (H x W x D) — 39.1 x 28.4 x 65.1 in (994 x 721 x 1654 mm)
Net Weight — 1,414 lb (641 kg)
Applications — Construction, Construction & Field Erection, Maintenance & Repair, Mining, Offshore, Oil & Gas, Power Generation, Railroad Maintenance, Shipbuilding, Structural Fabrication, Structural Welding
Condition — Used, professionally inspected; cosmetic condition and hours vary by unit
Country of Origin — USA

What's Included

  • (1) Used Lincoln Vantage 441X Engine Driven Welder (machine only; accessories shown may vary by unit)

Warranty

1-Year Limited Lincoln Electric Warranty from date of purchase
