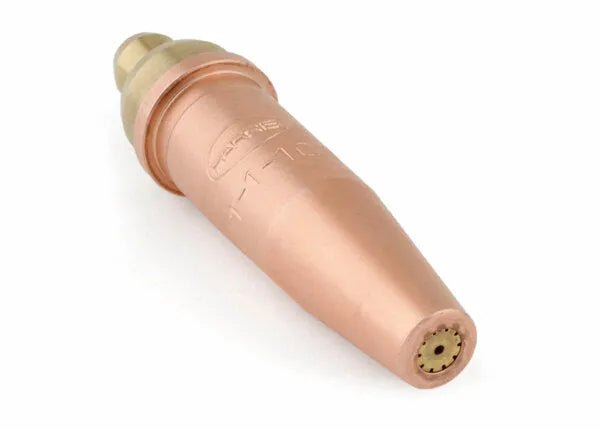

Harris Model V1-101AC-1 V-Series Hand Cutting Tip - 1502072
Harris - Model V1-101AC-1 V-Series® heavy preheat two-piece hand cutting tip for use with acetylene.
Specifications
- Gas / GasService: Acetylene
- Acetylene PSIG (Min. - Max.): 3 - 5
- Compatible Cutting Attachment Model Number: V-2460; VH24
- Compatible Handle Model Number: V-315C; VH31
- Compatible Torch Harris - Model Number: V42-4E; V242-2
- Construction: Two-piece - Copper and Brass
- Cutting Depth: 1/2 in. - 3/4 in. (12.7mm - 19.1mm)
- Cutting Drill Size: No. 56
- Oxygen PSIG (Min. - Max.): 30 - 35
- Preheat Type: Heavy
- Style: Hand and Machine cutting
- Tip Size / Number: 1
- Typical Application: Construction; Demolition; Maintenance
- Part number: 1502072
Applications
The Harris Model V1-101AC-1 V-Series Hand Cutting Tip - 1502072 is a Harris Products Group accessory designed for use with Harris torches, regulators, or cutting/brazing equipment. Harris Products Group manufactures a comprehensive line of gas equipment including torches, tips, regulators, hose assemblies, and specialty accessories for welding, cutting, brazing, and soldering operations.
What's in the box
- Harris - Model V1-101AC-1 V-Series® Hand Cutting Tip
Why pros choose this
Harris cutting, heating, and brazing accessories are sized by tip series, fuel gas, and torch family. Using the correct tip and seat geometry preserves cutting speed and prevents flashback in oxy-fuel work.
Warranty
1 Year
From the manufacturer
Harris Model V1-101AC is a two-piece acetylene tip for hand cutting torches.Features
- Two-piece hand cutting tip with copper outer shell and brass internal shell
- Heavy preheat
- For use with acetylene
- Cuts steel that is painted, rusted or has a heavily scaled surface
- Compatible with V-Series torches
- Typical applications include construction, demolition, maintenance, etc.
- Marked with Harris logo and tip size for easy identification
- One year warranty
