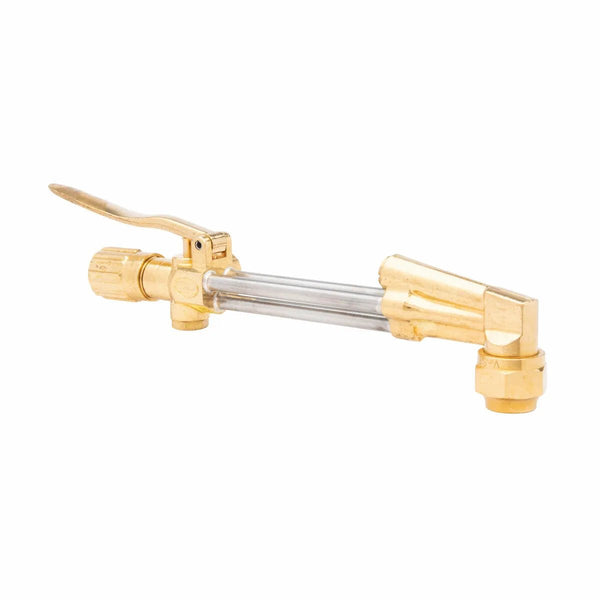

Harris Model V-2460 All Fuel Gases V-Series Cutting Attachment - 1300512
Harris Model V-2460 is a classic design Harris cutting attachment with brazed triangular Stainless Steel tubes, making it light in weight while still providing exceptional strength and rigidity. The captive union nut protects the seats and O-rings from damage. It features a fold-forward cutting lever allowing easier connection, even with gloves on. The ease-on cutting valve provides smoother controlled starts. The forged solid brass head provides years of safe, dependable service, even under the most abusive conditions. Cuts up to 6 in. (152.4mm) plate.
Features
- Heavy duty UL listed cutting attachment for use with all fuel gases
- E-Equal or positive pressure mixing system resists damage due to flashback
- Triangular tube design is compact and lightweight with exceptional strength and rigidity while the brazed connections prevent leaks
- Torch union nut protects seats and O-rings from abuse and damage
- Fold-forward brass cutting lever for convenience and ease of operation
- Ease-on cutting valve for safety, smoother starts and more precise cutting control
- Solid forged brass head resists abuse and distortion for reliable performance and longer service life
- Cuts up to 6 in. (152.4mm)
- Length is 10 1/4 in. (260.3mm)
- Head angle is 90◦
| Certification | UL listed |
| Compatible Cutting Tip Model Number - Acetylene-h3 (Size) | V-101 V-101AC |
| Compatible Cutting Tip Model Number - Alternate Fuel (Size) | 1-GPN 1-GPP |
| Compatible Handle Model Number | V-315C |
| Construction | Brass and Stainless Steel |
| Cutting Capacity | Up to 6 in. (152.4mm) plate |
| Duty | Heavy |
| Gas / Gas Service | Acetylene Hydrogen NaturalGas Methane Propane Propylene |
| Head Angle | 90° |
| Mixer Type | E-Equal or positive pressure |
| Torch Length | 10-1/4 in. (260.3mm) |
| Typical Application | Construction Fabrication Shipbuilding |
Warranty
| Warranty | 1 Year |
