VMD 601 Acetylene Oxygen Port-A-Torch Kit with Cylinders for CGA 540/200 - 4403261

SKU: 4403261
$485.88 $753.08
Factory Direct
Free Shipping
Lowest Price
V-Series Port-A-Torch® kit with cylinders is made with the V-Series 2-tube cutting attachment design and thread. This kit is for cutting up to 4 in., brazing up to 3 in. copper tube and welding up to ½ in.
Overview

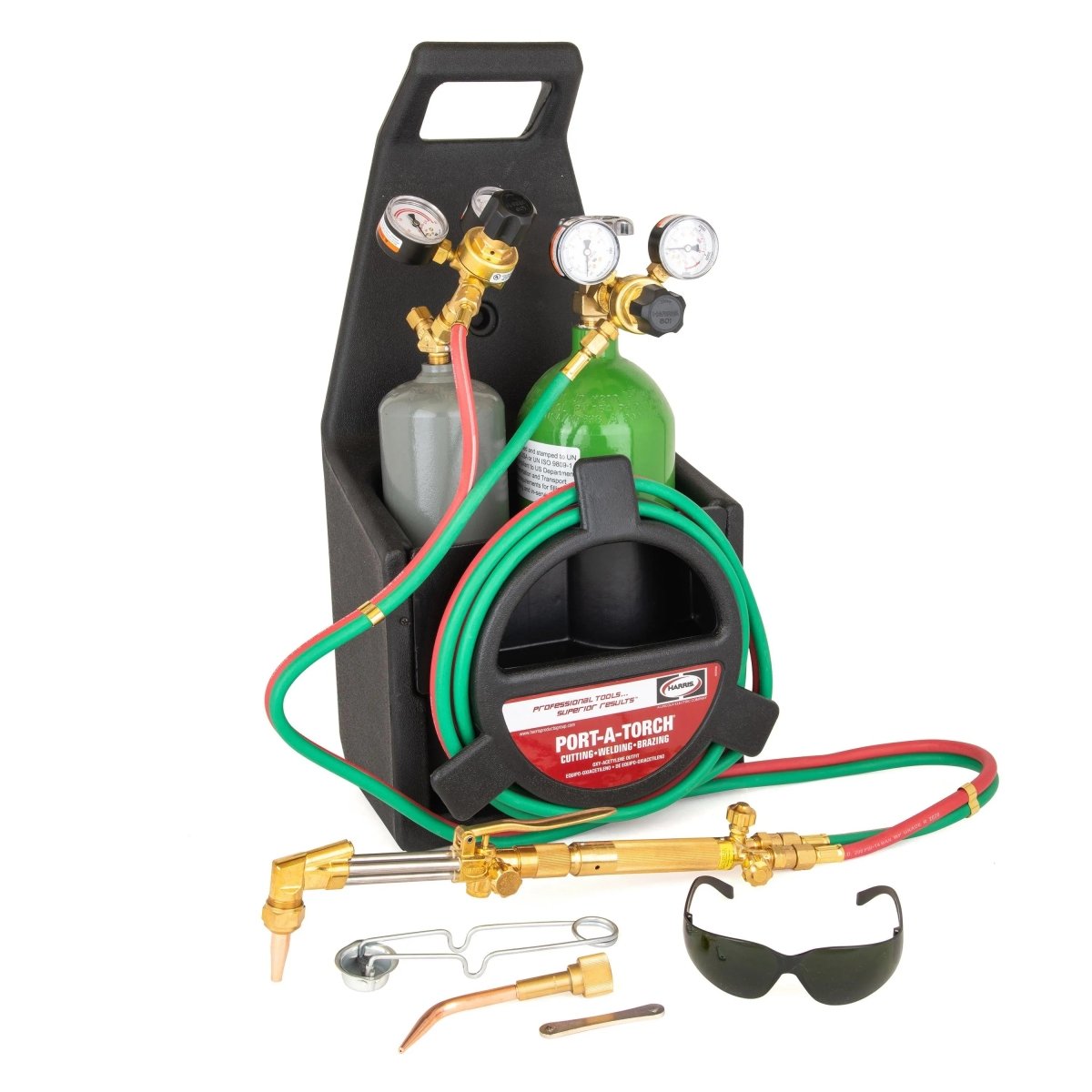

Harris VMD 601 Port-A-Torch kit with Cylinders contains all the quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2mm) diameter copper tube and is supplied with a size tip for brazing copper up to ¾ in. (19.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Medium Duty Port-A-Torch 2-tube design kit with Cylinders designed to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up 80 psi and acetylene that Regulator delivers up 15 psi.
  • Torch handle Harris Model Vh30 has tube within a tube construction and is equipped with external replaceable FlashGuard check valves.
  • Cutting attachment Harris Model Vh33 features a stainless-steel lever, an in-tube mixer, and threaded connections for easy repair.
  • Consumables included - cutting tip Harris Model V3-101-1, mixer Harris Model VW1 and welding/brazing tip Harris Model 23A90-3.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;3/16 in. x 12 ft. twin BxB R-grade hose;No. 5 chrome acetylene Cylinder wrench;20 cu.ft. green oxygen Cylinder CGA 540;10 cu.ft. grey acetylene Cylinder CGA 200 MC;black plastic PAT hose reel tote (Cylinders shipped empty).


Specifications
FeatureValue
Gas / GasService Acetylene; Oxygen
Cutting Attachment Harris - Model Number VH-13
Cutting Capacity Up to 1 in. (25.4mm) plate with supplied tip(s); Up to 4 in. (101.6mm) plate with optional larger tip(s) and acetylene cylinder; Optional tip(s) sold separately
Cutting Tip Style - Acetylene-H2 (Size) V3-101-1
Duty Medium
Equipped With FlashGuard® check valves - torch
Fuel Gas Regulator Harris - Model Number 601-15-200
Gauges 50mm ABS plastic dual scale (psi/bar) - regulators
Hose Connection/Fittings BxB
Hose Size 3/16 in. x 12 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Mixer Harris - Model Number V-W-1
Mixer Type E-Equal or positive pressure
Oxygen Regulator Harris - Model Number 601-80-540
Seat PTFE Teflon® - regulators
Tank Connection CGA 540; CGA 200
Torch Handle Harris - Model Number VH10
Welding Capacity Up to 1/2 in. (12.7mm) plate with supplied tip(s)
Includes
  • Harris - Model 601-15-200A Fuel Gas Regulator - 3000407
  • Harris - Model 601-80-540A Oxygen Regulator - 3000412
  • Harris - Model 15-5HV Torch Handle - 1401412
  • Harris - Model 36-2HV Cutting Attachment - 1300043
  • Harris - Model B-15-3HV Mixer Assembly - 9004284
  • Harris - Model 3690-0 Cutting Tip - 36900AC
  • Harris - Model 5090-1 Welding Tip - 1601700
  • 5090-3 Welding Tip - 1601730
  • Safety Glasses Shade 5 ANSI Z87.1 CE Weld - 4303629
  • Handheld Ignitor - 9004486
  • 3/16 in. x 12 ft. Twin B & B inner in. Grade Acetylene Hose - 4300155
  • PORT-A-TORCH Hose Reel Black Carrying Tote - 8855033
  • Trilingual Kit Manual - 9505643
