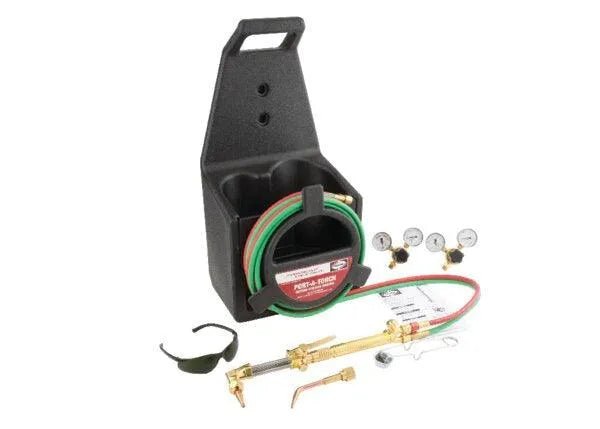

VMD 601 Oxygen Acetylene Port-A-Torch Kit without Cylinders for CGA 540/200 - 4403215

SKU: 4403215
$522.21 $528.78

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Factory Direct
Free Shipping
Lowest Price
V-Series Port-A-Torch® kit without cylinders is made with the V-Series 3-tube cutting attachment design and thread. This kit can cut up to 4 in., braze up to 3 in. copper tube and weld up to ½ in.
Overview

Harris Model VMD 601 Port-A-Torch kit without Cylinders contains all the quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can cut up 4 in. (101.6mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 3 in. (76.2mm) diameter copper tube and is supplied with a size tip for brazing copper up to ¾ in. (19.1mm) tube. The kit is capable of welding up to 1/2 in. (12.7mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
  • Medium Duty Port-A-Torch 3-tube design kit with Cylinders designed to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene Harris Model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen Regulator that delivers up 80 psi and acetylene that Regulator delivers up 15 psi.
  • Torch handle Harris Model V-100C has tube within a tube construction and is equipped with external replaceable FlashGuard check valves.
  • Cutting attachment Harris Model V-1350 features brazed triangular stainless-steel tubes and cutting lever, fold-forward cutting lever, ease-on cutting valve and solid brass head.
  • Consumables included - cutting tip Harris Model 1-V3-101, mixer Harris Model VW1 and welding/brazing tip Harris Model 23A90-3.
  • Accessories included - Shade 5 safety glasses (ANSI Z87.1 CE Weld);Handheld ignitor;3/16 in. x 12 ft. twin BxB R-grade hose;No. 5 chrome acetylene Cylinder wrench;black plastic PAT hose reel tote.
Specifications
FeatureValue
Gas / GasService Acetylene; Oxygen
Cutting Attachment Harris - Model Number V-1350
Cutting Capacity Up to 1 in. (25.4mm) plate with supplied tip(s); Up to 4 in. (101.6mm) plate with optional larger tip(s) and acetylene cylinder; Optional tip(s) sold separately
Cutting Tip Style - Acetylene-H2 (Size) V3-101-1
Duty Medium
Equipped With FlashGuard® check valves - torch
Fuel Gas Regulator Harris - Model Number 601-15-200
Gauges 50mm ABS plastic dual scale (psi/bar) - regulators
Hose Connection/Fittings BxB
Hose Size 3/16 in. x 12 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Mixer Harris - Model Number V-W-1
Mixer Type E-Equal or positive pressure
Oxygen Regulator Harris - Model Number 601-80-540
Seat PTFE Teflon® - regulators
Tank Connection CGA 540; CGA 200
Torch Handle Harris - Model Number V-100C-2
Welding Capacity Up to 1/16 in. (1.6mm) plate with supplied tip(s); Up to 1/2 in. (12.7mm) plate with optional larger tip(s) and acetylene cylinder; Optional tips sold separately
Includes
  • Harris - Model 601-15-200 Fuel Gas Regulator - 3000295
  • Harris - Model 601-80-540 Oxygen Regulator - 3000296
  • Harris - Model V-100C-2 Torch Handle - 1400402
  • Harris - Model V-1350 Cutting Attachment - 1300506
  • Harris - Model V-W-1 MD Mixer Assembly - 9105213
  • Harris - Model V3-101-1 Cutting Tip - 1502083
  • Harris - Model 23A90-3 Welding Tip - 1600870
  • 3/16 in. x 12 ft. Twin B & B R-grade Oxy-Acetylene Hose - 4300556
  • Safety Glasses Shade 5 - 4303629
  • Handheld Ignitor - 9004486
  • Acetylene B-Cylinder Wrench - KH231
  • Port-A-Torch Hose Reel Case - Black - 8855033
  • Trilingual Kit Manual - 9505643
