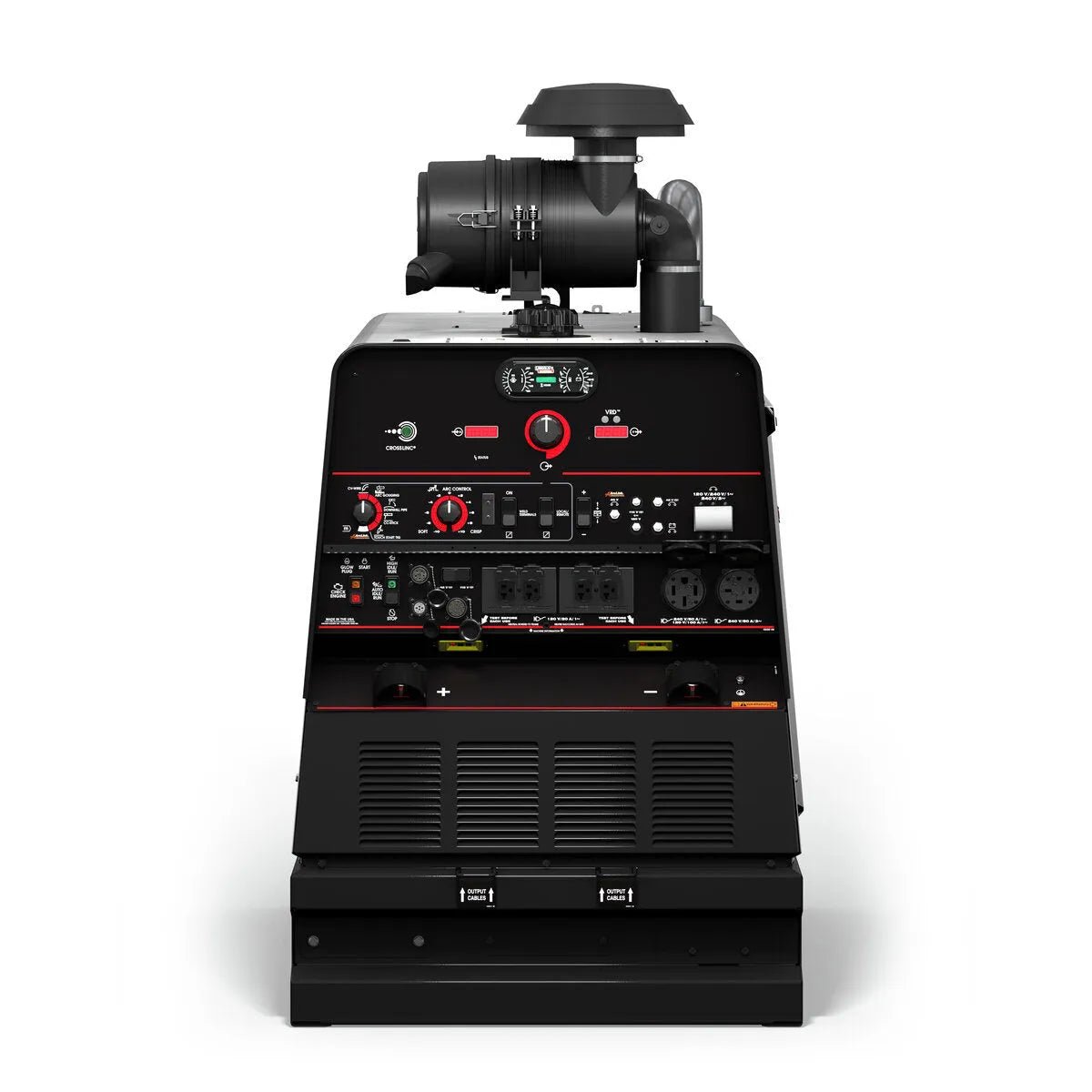

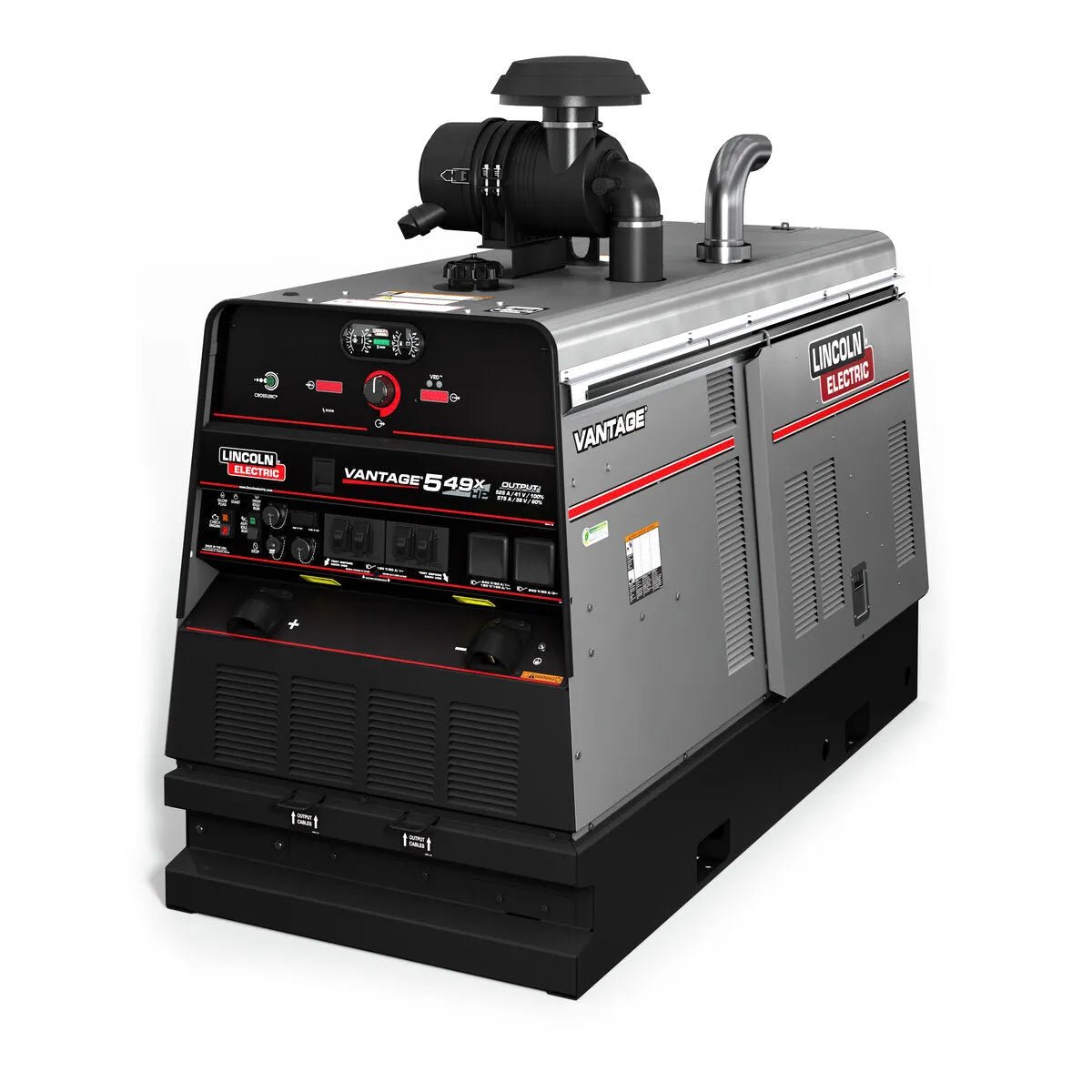

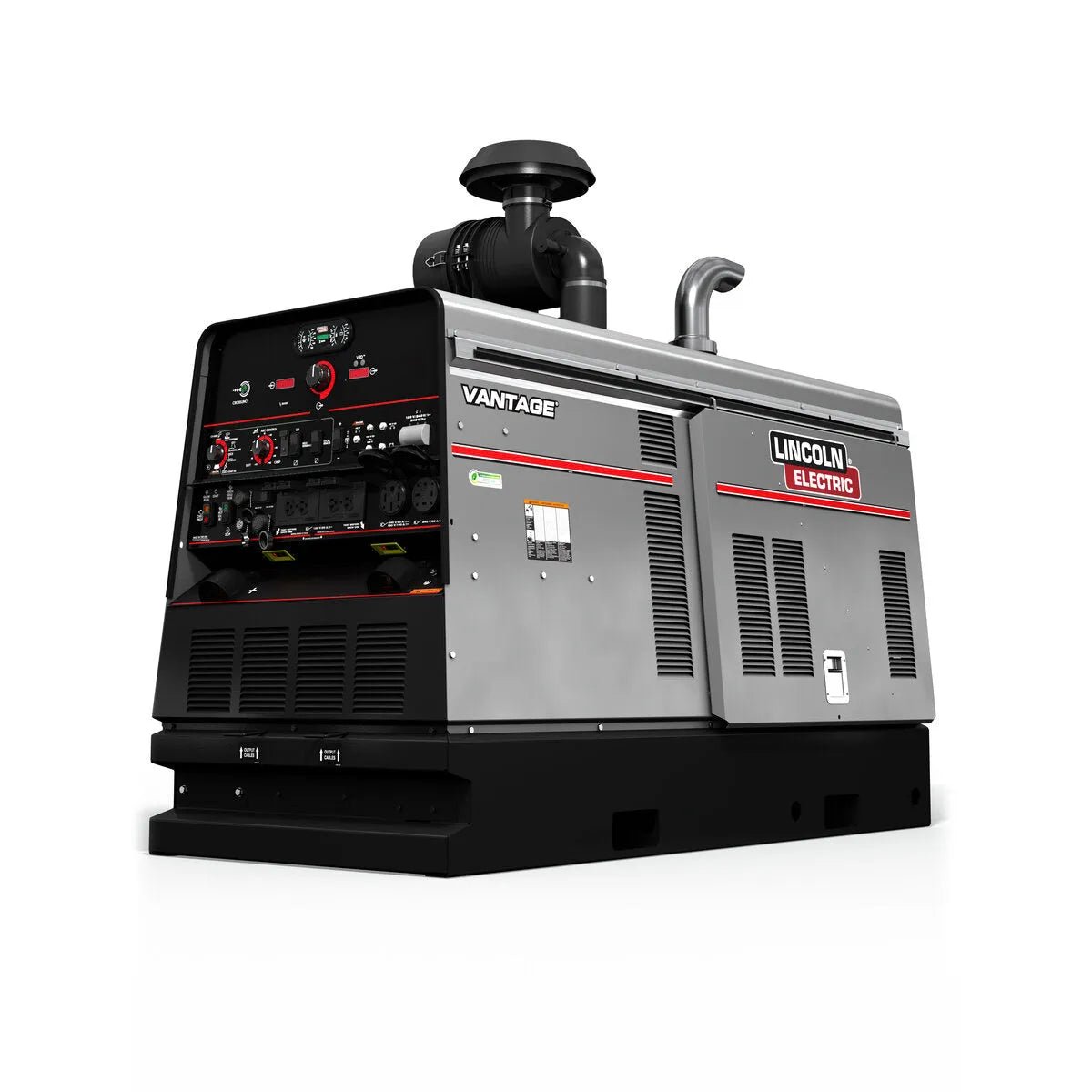

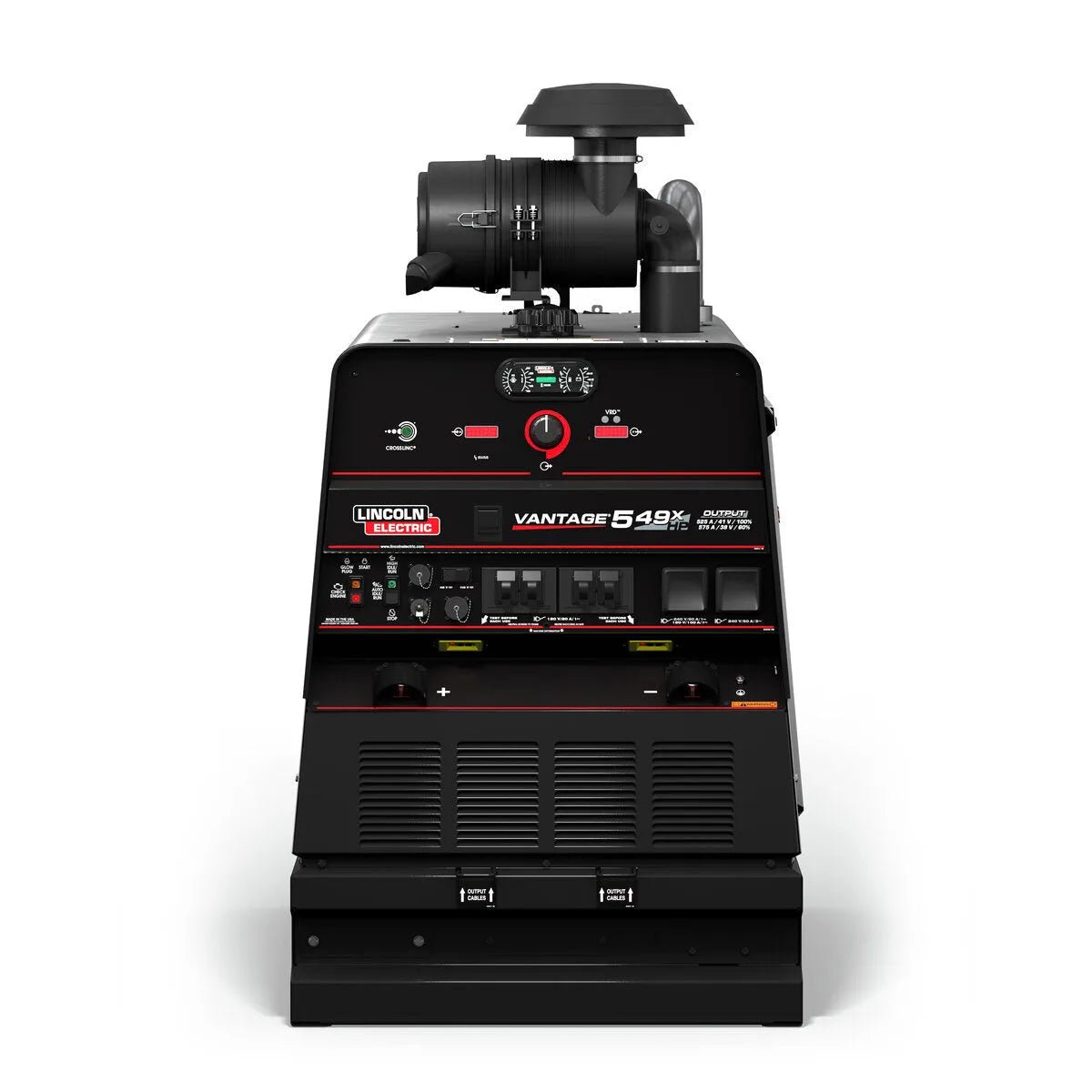

Lincoln Vantage 549X Deutz Engine Driven Welder Deutz - K3534-2
The Lincoln Vantage 549X (K3534-2) represents the pinnacle of engine-driven welding technology, delivering exceptional power and versatility for the most demanding industrial applications. This professional-grade welder/generator provides up to 575 amps of welding output (IEC rated at 525 amps at 41V with 100% duty cycle) and 19 kW of auxiliary power in a rugged, field-proven package designed to withstand the harshest working environments. Powered by a compliant 49.4 horsepower Deutz TD2.9L4 turbocharged diesel engine that meets all EPA Tier 4 Final emissions regulations, this powerful machine can be transported freely across state lines without additional compliance fees or restrictions, making it the ideal solution for contractors operating in multiple jurisdictions or environmentally sensitive areas where emissions compliance is strictly enforced.
Engineered with Lincoln's advanced Chopper Technology, the Vantage 549X delivers premium arc performance with minimized spatter for stick and pipe welding applications, while providing enhanced gouging capabilities that prevent engine stalling during aggressive material removal with carbon electrodes up to 3/8 inch (9.5 mm) in diameter. The system's comprehensive multi-process capabilities support five basic welding modes including CC-Stick, Downhill Pipe, DC Touch Start TIG, CV-Wire, and Arc Gouging, alongside specialized modes for stainless steel, aluminum, submerged arc welding, and orbital pipe applications. The integrated pulse welding functionality offers exceptional control for out-of-position welding and critical applications requiring precise heat input management, while CrossLinc Technology enables remote parameter adjustment directly at the arc without additional control cables, dramatically improving productivity, safety, and weld quality in challenging field environments.
Beyond its exceptional welding capabilities, the Vantage 549X functions as a powerful generator with 19 kW of continuous three-phase 240V power and 11 kW of single-phase 120/240V power for operating plasma cutters, pumps, inverter welders, and other essential tools in remote locations. Weighing 1662 lbs (753 kg) and measuring 42 in x 32.9 in x 69 in, this industrial powerhouse combines robust construction with practical mobility for diverse applications in construction, mining, railroad maintenance, offshore operations, and structural fabrication. The machine's dependable design includes a 25-gallon (94.6L) fuel tank for extended runtime, while the Deutz diesel engine delivers smooth, quiet operation with excellent cold-weather starting characteristics. With its comprehensive 3-year warranty, expanded welding capabilities, and industry-leading reliability, the Lincoln Vantage 549X represents the ultimate solution for professionals requiring maximum performance and versatility in the most challenging industrial environments.
Key Features
- Power Without Boundaries – Offers up to 575 amps (IEC rated at 525 amps) of welding current to tackle numerous welding and carbon arc gouging applications with five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG, CV-Wire, and Arc Gouging.
- Generator Output – Provides up to 19 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
- Patented Chopper Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling.
- Expanded Welding Capabilities – Utilize customized modes for stainless, aluminum, and steel as well as advanced SAW and orbital pipe modes with pulse welding capability.
- CrossLinc Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity.
- Reliable Operations – Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs and harshest environments.
- Industrial Diesel Engine – Powered by a 49.4 hp, turbocharged Deutz diesel engine that meets EPA Tier 4 Final compliance for operation across all jurisdictions.
Specifications
| Dimensions (H x W x D) | 42 in x 32.9 in x 69 in (1067 mm x 836 mm x 1753 mm) |
| Net Weight | 1662 lbs (753 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Submerged Arc (SAW) |
| Open Circuit Voltage | 70 Peak OCV @ 1800 RPM |
| IEC Rating | 525A / 41V / 100% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 30 - 575 A Downhill Pipe (CC): 40 - 350 A Touch Start TIG: 20 - 350 A CV-Wire: 10 - 45 V Arc Gouging: 60 - 575 A |
| Rated Gouging Carbon Diameter | 3/8" (9.5 mm) |
| Machines Communication Technology | CrossLinc ArcLink |
| Single Phase Auxiliary Output | 11,000 Watts Continuous, 120/240V |
| Three Phase Auxiliary Output | 19,000 Watts Continuous, 240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R NEMA 15-50R |
| Engine Brand & Model | Deutz TD2.9L4 |
| Engine Description | 4 Cylinder Turbocharged Water Cooled Diesel Engine |
| Engine Horsepower | 49.4 hp (37.0 kW) |
| Engine Block Size & Displacement | 178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 1800 |
| Low Idle Operating Speed | 1525 |
| Fuel Tank Size (US gal.) | 25 US gal. |
| Fuel Tank Size (L) | 94.6 L |
| Oil Capacity (qts.) | 9.0 qts. |
| Oil Capacity (L) | 8.5 L |
| Coolant Capacity (US gal.) | 4.1 US gal. |
| Coolant Capacity (L) | 15.6 L |
| Typical Application | Construction Mining Railroad Maintenance Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
