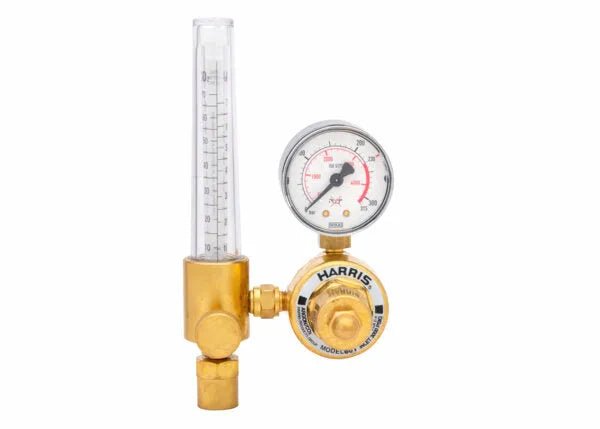

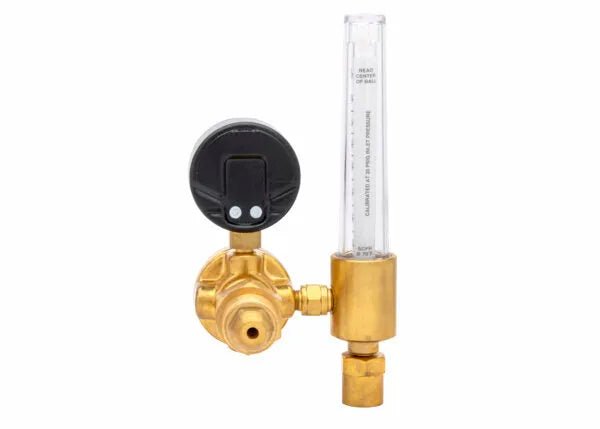

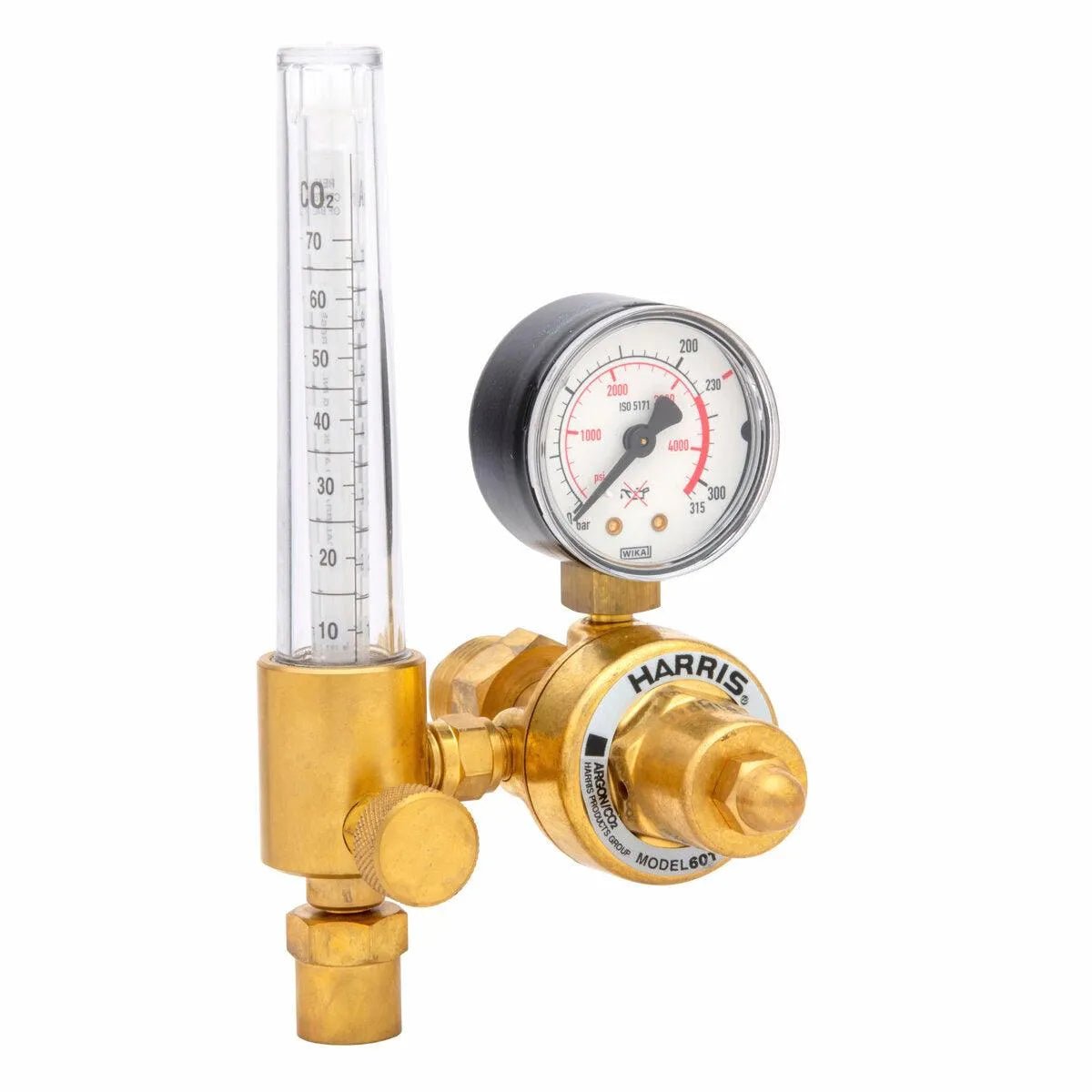

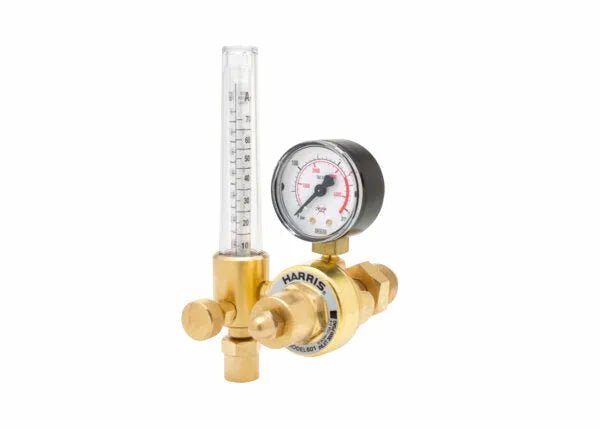

The Harris 3100575 Compensated Flowmeter Regulator (601-Ar-580) is a single-stage, flow-compensated argon shielding gas regulator combining a high-accuracy balltype flowmeter with an integrated pressure-reducing regulator in one compact assembly. Manufactured by Harris Products Group — a Lincoln Electric company and one of the world's largest producers of gas welding, brazing, and cutting equipment — the 601-Ar-580 provides stable, accurately metered argon flow for MIG (GMAW), TIG (GTAW), and plasma welding applications where consistent shielding gas coverage is essential for weld quality.
The "compensated" designation distinguishes this regulator from standard non-compensated flowmeters. Flow compensation corrects for the pressure drop that occurs as a cylinder depletes: as inlet pressure falls from a full cylinder (2,000+ PSI) to a near-empty one (~500 PSI), the compensated flowmeter maintains the displayed flow rate within ±5% accuracy across the operating range, whereas non-compensated meters drift by 10–20% under the same conditions. This makes the 601-Ar-580 the professional choice for TIG and high-quality GMAW operations where shielding gas delivery directly affects weld appearance and porosity levels.
| Regulator Type | Single-stage pressure reducing |
|---|---|
| Flow Meter Type | Ball-float, compensated (pressure-referenced) |
| Shielding Gas | Argon, Argon/CO₂ mixtures, Helium blends |
| Inlet Connection | CGA-580 (Argon/Nitrogen/Helium cylinder) |
| Outlet Connection | 5/8-18 RH (male) — standard MIG/TIG hose fitting |
| Inlet Pressure Range | Up to 3,000 PSI (207 bar) |
| Flow Range | 0 – 60 CFH (0 – 28 LPM) |
| Flow Accuracy (compensated) | ±5% across operating pressure range |
| Regulator Body Material | Brass, nickel-plated |
| Seat Material | Nylon / PCTFE |
| Gauge Face | Dual-scale (CFH / LPM) |
| Harris Part Number | 3100575 |
- TIG welding (GTAW) of stainless steel and aluminum: TIG welding is highly sensitive to shielding gas flow variation. Even a 5 CFH deviation from optimal argon flow causes oxidation at the tungsten or porosity in the weld root. The compensated flowmeter's ±5% accuracy maintains consistent results from a full cylinder to an empty one.
- GMAW of aluminum with argon shielding: Aluminum MIG welding requires pure argon at precise flow rates (typically 25–40 CFH depending on nozzle size and travel speed). Compensated flow measurement prevents the premature porosity that appears on aluminum welds when an aging cylinder's non-compensated flow drops below the critical coverage threshold.
- FCAW with Argon/CO₂ blends: Higher-quality structural FCAW welds use 75/25 Ar/CO₂ blend gas. The 601-Ar-580 is compatible with standard Ar/CO₂ shielding gas blends (the CGA-580 cylinder fitting is standard for these blends), providing accurate flow metering for consistent shielding.
- Orbital tube welding and pipe purging: Precision orbital TIG welding of stainless or duplex pipe requires exact argon flow control for both the welding torch and the pipe purge. The compensated accuracy of the 601-Ar-580 provides the flow consistency that purge qualification procedures require.
- Training labs and vocational programs: Welding instructors specify compensated flowmeters specifically because student welders tend to deplete cylinders faster than production shops, and the compensated meter ensures that the gas coverage students experience is consistent regardless of cylinder fill level.
- Cylinder preparation: Remove the cylinder valve cap. Crack the cylinder valve for one second to purge any dust or moisture from the valve port before attaching the regulator. Point the valve away from yourself and others during this step.
- Regulator attachment: Thread the CGA-580 nut onto the cylinder valve outlet. Hand-tighten, then use a 1-1/4 in open-end wrench to tighten 1/4 turn beyond hand-tight. Do not overtighten — the nylon seat provides the seal and can be damaged by excessive torque.
- Hose connection: Attach the 5/8-18 RH outlet fitting to your MIG or TIG torch hose. Hand-tighten plus 1/4 turn wrench-tight.
- Pressurize slowly: Open the cylinder valve gradually (1/4 turn per second) until fully open. Never rapid-open — pressure surge can damage the regulator diaphragm.
- Set flow rate: Open the torch solenoid (or shielding gas valve on the machine) and adjust the flow control knob until the ball float centers on your target flow rate. Read the flow at the center of the ball float, not the top or bottom. For most GMAW: 25–35 CFH. For TIG: 15–25 CFH depending on cup size.
- Leak test: Apply leak-detection solution (Harris part 4403503) to the regulator inlet nut connection and the outlet hose fitting. Bubbles indicate a leak — re-torque or replace the seat. Never use a flame for leak testing.
- CGA-580 inlet — compatible with Argon, Argon/CO₂ blend, Argon/Helium blend cylinders from all major gas suppliers
- 5/8-18 RH outlet — standard for all Lincoln Electric MIG gun gas hoses and most TIG torch hoses
- Compatible with Lincoln Magnum Pro MIG gun series and all Lincoln TIG torches with standard gas inlet fittings
- See also: Harris 301-Ar-58010 Flowgauge Regulator Kit for an alternative configuration and Harris 3500-600-580 Single Stage Regulator for high-pressure argon applications
- Flow tube cleaning: The ball-float flow tube can develop spatter or debris accumulation if the outlet hose is not capped when disconnected. Clean by removing the flow tube per the Harris service manual (HSM-601) and rinsing with isopropyl alcohol. Do not use solvents on the nylon seat assembly.
- Diaphragm inspection: Single-stage regulators are subject to seat wear if operated repeatedly at extreme low-flow settings (below 5 CFH). Annual pressure-held test: set flow to 0, close the cylinder valve, and watch the inlet gauge for 2 minutes. Any pressure drop indicates a seat or diaphragm leak requiring service.
- CGA-580 nut inspection: Inspect the brass nut for corrosion, thread damage, or a worn nylon seat insert annually. Replace the seat (Harris part 3001205) rather than the entire regulator if only the seat shows wear.
- Storage: Store the regulator with the outlet cap in place and the cylinder valve closed. The internal pressure of a sealed regulator should be 0 PSI when not in use. Store in a clean, dry location above freezing.
Q: What is the difference between compensated and non-compensated flowmeters?
A: A non-compensated flowmeter reads gas flow accurately only at the one reference pressure it was calibrated to (typically 50 PSI delivery pressure). As a cylinder depletes and delivery pressure changes, the flow reading drifts — sometimes by 15–20%. A compensated flowmeter uses a pressure reference port that continuously corrects the flow reading for the actual delivery pressure, maintaining ±5% accuracy regardless of how full the cylinder is.
Q: Can the Harris 601-Ar-580 be used with helium or helium blend gases?
A: Yes. The CGA-580 inlet fitting is standard for argon, helium, and argon/helium/nitrogen blends. Because helium has a lower density than argon, the ball float reads differently for the same mass flow rate — use the LPM scale on the flowmeter and correct using the gas supplier's flow correction chart for helium, or use a dedicated helium flowmeter calibration if precise flow control is required.
Q: What is the recommended argon flow rate for TIG welding with a #7 cup?
A: A standard guideline for TIG with a #7 ceramic cup (7/16 in bore) is 15–20 CFH of argon for thin material (under 1/8 in) and 20–25 CFH for heavier material. Too-high flow rates cause turbulent shielding, which can introduce porosity — compensated accuracy ensures you're hitting the target without inadvertently over-flowing as the cylinder depletes.
Q: How do I know if my flowmeter is giving accurate readings?
A: Compare the displayed flow to a calibrated reference flowmeter, or use a soap-bubble flowmeter (inexpensive field calibration tool) at the torch outlet while the flowmeter is set to a known rate. If the displayed CFH diverges from the measured flow by more than ±10% at midscale, the unit requires service or recalibration.
Q: Can I use the 601-Ar-580 with CO₂ cylinders?
A: No. CO₂ cylinders use a CGA-320 inlet fitting. The 601-Ar-580's CGA-580 nut physically cannot connect to a CO₂ cylinder outlet — this is intentional per CGA standards to prevent mixing of incompatible gases and regulators. For CO₂-only applications (100% CO₂ shielding), use a Harris CGA-320 regulator.
Q: Should I fully open the cylinder valve when using this regulator?
A: Yes — best practice is to open the valve fully (usually 1.5 to 2 full turns on most CGA-580 valves). A partially open valve can restrict flow at high demand (high CFH settings) and creates a false "empty cylinder" impression on the inlet gauge. Full open also protects the packing in older cylinder valves by fully back-seating the valve stem.
Q: What outlet hose length is appropriate for a 60 CFH flow rate?
A: For shielding gas at 25–60 CFH delivery, 1/4 in ID hose is suitable for runs up to 25 ft without measurable pressure drop impact on flow reading. For runs over 25 ft, use 5/16 in ID hose to minimize friction loss. Longer hose runs also increase volume, making the gas purge time between the regulator and torch longer when starting a new arc.
