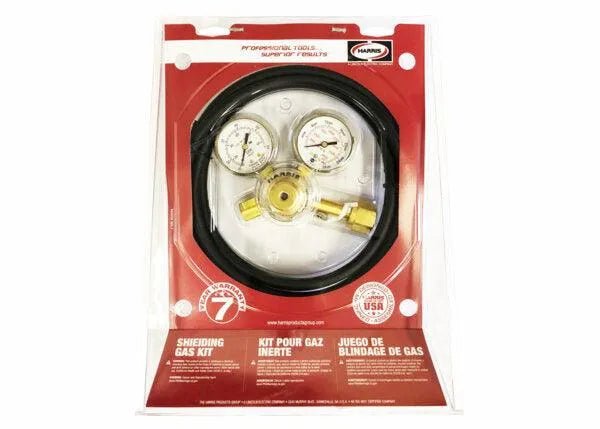

The Harris 4400229 Flowgauge Regulator Shielding Gas Kit (301-Ar-58010) is a ready-to-weld argon shielding gas regulator kit that combines a single-stage pressure-reducing regulator, dual-scale flowgauge (CFH/LPM), and a 10-foot braided shielding gas hose with standard MIG/TIG fittings — everything needed to connect a CGA-580 argon cylinder to a welding machine in a single package. Made by Harris Products Group, a Lincoln Electric company, this kit eliminates the guesswork of sourcing compatible hose and regulator components separately, providing a factory-matched, ready-to-use shielding gas delivery system out of the box.
The "flowgauge" designation refers to the integrated dual-pointer gauge that displays both the cylinder residual pressure (inlet, in PSI) and the delivery pressure/flow rate (outlet, in CFH and LPM) on a single instrument face. Unlike a separate flowmeter tube, the flowgauge integrates flow indication into the standard dual-gauge regulator form factor, making it familiar and readable for welders accustomed to traditional two-gauge regulators. The 301-Ar-58010 is designed specifically for argon and argon-blend shielding gas applications — MIG, TIG, plasma, and laser welding.
| Kit Contents | Flowgauge regulator + 10-ft shielding gas hose + fittings |
|---|---|
| Regulator Type | Single-stage, pressure-reducing with integrated flowgauge |
| Inlet Connection | CGA-580 (Argon / Nitrogen / Helium / Ar-mix cylinders) |
| Outlet Hose Length | 10 ft (3 m), braided nylon-reinforced PVC |
| Outlet Fitting | 5/8-18 RH male (MIG/TIG standard) |
| Inlet Gauge Range | 0 – 3,000 PSI |
| Flowgauge Range | 0 – 80 CFH / 0 – 37 LPM |
| Delivery Pressure Range | 0 – 50 PSI (adjustable) |
| Regulator Body | Brass, nickel-plated |
| Max Inlet Pressure | 3,000 PSI (207 bar) |
| Harris Part Number | 4400229 |
| Compatible Gases | Argon, Argon/CO₂ blends, Argon/Helium blends, Nitrogen |
- MIG welding setup with a new machine: When commissioning a new Lincoln Electric MIG welder (Power MIG 210 MP, 215 MPI, 256), the 4400229 kit provides all three components needed to complete the shielding gas circuit: regulator, hose, and fittings — in a single purchase.
- TIG welding stations: The kit's 5/8-18 RH outlet fitting is the standard connection for Lincoln and Harris TIG torch gas inlets. The 10-ft hose provides enough reach to position the argon cylinder safely away from the work area while maintaining flow path integrity.
- Replacement of worn regulator/hose systems: When an existing shielding gas regulator shows seat wear, gauge drift, or hose cracking, replacing the entire kit at once ensures all components are matched and eliminates troubleshooting separate wear items.
- Rental and contractor welding setups: Contractors assembling temporary welding stations for shutdowns or field fabrication appreciate the all-in-one kit's fast, reliable setup. One SKU covers the complete shielding gas assembly.
- Welding schools and vocational programs: The flowgauge format is ideal for training environments because the integrated dual-gauge display makes it easy to teach both cylinder pressure monitoring (when to order a refill) and flow rate setting (how much gas to use per process) in a single instrument demonstration.
- Prepare the cylinder: Remove valve cap. Crack the cylinder valve one second to purge the port. Reclose.
- Attach regulator: Thread the CGA-580 inlet nut onto the cylinder valve. Hand-tight plus 1/4 turn wrench (1-1/4 in wrench). Do not overtighten.
- Connect the hose: The 10-ft hose is pre-attached to the regulator outlet in the kit. Connect the free hose end (5/8-18 RH fitting) to your MIG gun gas inlet or TIG torch gas hose connector. Hand-tight plus 1/4 turn wrench.
- Open the cylinder valve slowly: Open 1/4 turn per second until the inlet gauge rises to full cylinder pressure (typically 2,000–2,200 PSI for a full argon cylinder).
- Set delivery flow: With the machine/solenoid open (or torch valve open), turn the delivery pressure adjustment knob clockwise until the flowgauge reads your target flow rate. For GMAW with 0.035 in wire: 25–30 CFH. For GTAW with #8 cup: 20–25 CFH.
- Leak test: Apply leak-detection solution (Harris part 4403503) at all connections. Any bubbles require re-torquing or replacement of the seat.
- Shutdown procedure: Close the cylinder valve, open the solenoid or torch valve to bleed pressure, then close the solenoid. The inlet gauge drops to 0 when the system is properly depressurized.
- CGA-580 inlet — fits all Argon, Ar/CO₂ blend, Ar/He blend, and Nitrogen cylinders from major suppliers
- 5/8-18 RH outlet — compatible with all Lincoln Electric MIG gun gas inlets and TIG torch hose connections
- 10-ft hose covers the standard cylinder-to-machine distance at a single welding station
- See also: Harris 601-Ar-580 Compensated Flowmeter Regulator for ball-float flow metering with higher accuracy, and Harris 3500-600-580 Single Stage Regulator for high-pressure applications
- Hose inspection: Inspect the 10-ft hose monthly for cuts, abrasion, kinking, or swelling near the end fittings. A cracked hose introduces air into the shielding gas stream, causing porosity in welds downstream. Replace the entire kit or source a matching hose replacement when hose damage is found.
- Gauge protection: The flowgauge face is covered by a polycarbonate lens. Avoid dropping the regulator or impacting the gauge face with tools or cylinder caps. A cracked gauge lens allows moisture to enter and corrode the gauge mechanism.
- Outlet check valve: The kit's outlet fitting includes an integral check valve to prevent backflow of gas from the machine into the regulator. If you notice contamination in the regulator outlet (oil residue from a contaminated machine solenoid), inspect and clean the check valve or replace the hose assembly.
- Annual pressure-holding test: Set delivery flow to 0 and close the cylinder valve. Watch the inlet gauge for 2 minutes. Any inlet pressure drop indicates a seat or diaphragm leak — remove the regulator from service and send for repair or replacement.
Q: Is the 10-foot hose replaceable if it gets cut or damaged?
A: Yes. The hose uses standard 5/8-18 RH fittings on both ends (the regulator end and the machine end). Any Harris replacement hose (Harris part 4400226 or equivalent) with matching 5/8-18 RH ends can be substituted. Alternatively, a welding supply shop can cut a custom length from bulk CGA-compliant shielding gas hose and install the appropriate fittings.
Q: What is the difference between a flowgauge and a flowmeter?
A: A flowmeter (like the Harris 601-Ar-580) uses a glass or acrylic tube with a floating ball to indicate flow rate — a direct visual reading. A flowgauge integrates flow indication into the standard dual-gauge regulator face via a graduated delivery pressure scale calibrated in CFH and LPM — more compact but slightly less direct to read. For most welding shop applications, flowgauges provide adequate accuracy; for precision work or laboratory environments, ball-float flowmeters are preferred.
Q: Can this regulator be used for both MIG and TIG at different times?
A: Yes. The CGA-580 / 5/8-18 RH fittings are identical for both processes. Simply disconnect the hose from the MIG gun inlet and reconnect to the TIG torch inlet (or torch hose adapter) when switching processes. Both processes use argon or argon blends with CGA-580 cylinder connections.
Q: What cylinder pressure indicates I should order a refill?
A: Most shops order argon cylinder refills when the inlet gauge drops below 200–300 PSI. Below ~200 PSI, cylinder delivery pressure may become insufficient to maintain the set flow rate, even with the delivery adjustment fully open. Ordering at 300 PSI gives you buffer time before the cylinder runs out mid-weld.
Q: My flowgauge reads differently when I change the torch solenoid state. Is something wrong?
A: No — the flowgauge reading reflects actual delivered gas flow. When the solenoid is closed (no flow), the reading drops to 0 (or shows delivery pressure only, not flow). When the solenoid opens, the reading jumps to the set flow rate. This is normal behavior. If the reading changes significantly between solenoid cycles at steady state, inspect the solenoid valve for internal leakage or partial closure.
Q: Can this regulator be recalibrated in the field?
A: Not by the end user. Harris regulators are factory-calibrated instruments. If flowgauge readings appear inaccurate (confirmed by comparison to a calibrated reference meter), return the unit to Harris Products Group's authorized service network for recalibration or replace it. Field attempts to adjust the calibration mechanism void the warranty and can damage the gauge internals.
Q: What is the warranty on the Harris 4400229 kit?
A: Harris Products Group provides a 1-year warranty on regulator bodies against defects in materials and workmanship. The hose is warranted for 90 days against manufacturing defects. Damage from misuse, overtightening, or connection to incompatible gases is not covered under warranty.
