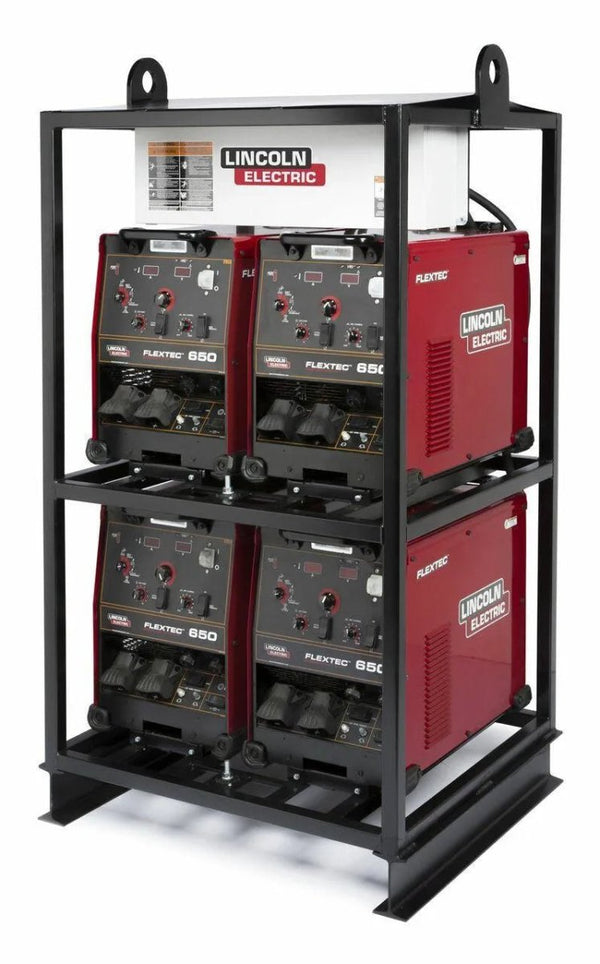

The Lincoln Electric 4-PACK RACK FLEXTEC 650 (K3144-1) is a high-amperage multi-operator welding power center housing four Lincoln FLEXTEC 650 CC/CV welding power sources in a single industrial rack enclosure. Each FLEXTEC 650 delivers up to 650 amperes of welding output — 44% more amperage than the FLEXTEC 450 — making the K3144-1 the preferred power platform for heavy fabrication, offshore pipeline construction, and large structural projects that demand maximum amperage for high-deposition SMAW, FCAW, and gouging applications. With four independent 650 A machines sharing a single input power and ground infrastructure, the rack maximizes per-station output while minimizing installation cost and floor footprint.
The FLEXTEC 650's advanced cross-process capability (SMAW, GMAW, FCAW, GTAW, and CAC-A) makes the K3144-1 appropriate for multi-process shops where different welding procedures run at the same station at different times. ArcLink® digital communication enables each FLEXTEC 650 to interface with Lincoln's full range of compatible wire feeders, providing process synergy and paperless procedure management directly from the feeder's interface panel.
| Configuration | 4 × Lincoln FLEXTEC 650 power sources |
|---|---|
| Output per Machine | 5–650 A CC / 10–44 V CV |
| Rated Output per Machine | 650 A / 44 V @ 60% duty cycle |
| 100% Duty Cycle per Machine | 600 A / 40 V |
| Input Voltage | 380–575 V, 3-phase, 50/60 Hz |
| Processes Supported | SMAW, GMAW, FCAW, GTAW, CAC-A |
| Digital Communication | ArcLink® per machine |
| Output Terminals | Heavy-duty Twist-Mate™ per machine |
| Rack Dimensions (approx.) | 84 in H × 36 in W × 24 in D |
| Assembled Weight | Approx. 1,700 lb (770 kg) |
| Enclosure | NEMA 3R rated steel enclosure |
| Lincoln Part Number | K3144-1 |
- Heavy-wall pipe welding and large-diameter pipe fabrication: 24 in and larger diameter pipe joints require high amperage for efficient fill and cap passes with 5/32 in and 3/16 in low-hydrogen electrodes (350–450 A). The FLEXTEC 650's 650 A capacity provides headroom for the highest-deposition procedures in API 1104 and ASME B31.3 pipeline construction.
- Carbon arc gouging on heavy plate: CAC-A gouging with 3/8 in or 1/2 in carbon electrodes requires 600–700+ amperes of stable DC output. The FLEXTEC 650's 650 A capacity supports the largest standard carbon arc gouging electrodes in a single machine, making it the go-to for weld removal, bevel prep, and back-gouging on thick structural weldments.
- FCAW of heavy structural steel (bridge, shipbuilding): High-deposition FCAW with 5/64 in and 3/32 in flux-cored wire at high wire-feed speeds demands 450–600 A output. The K3144-1 supports this process level across all four stations simultaneously, enabling four welders to run high-deposition procedures in a fabrication bay with a single input power point.
- Multi-operator installations in confined spaces: The K3144-1's compact rack footprint (same physical envelope as the 6-Pack RACK in the K2957-2) houses fewer but higher-amperage machines — ideal for construction sites where four high-output welding positions need to be deployed quickly in a confined area.
- Maintenance and repair on heavy mining equipment: Crawler tracks, dragline booms, and mining shovel components involve very heavy sections (3 in+ steel) requiring prolonged high-amperage welding or gouging. The FLEXTEC 650's 100% duty cycle at 600 A supports continuous gouging and repair welding operations without the cycle delays of lower-rated machines.
Installation and commissioning follow the same procedure as other Lincoln RACK systems:
- Input power connection: Connect 3-phase input (380–575 V) to the rack's main disconnect per the installation drawing (Lincoln document IM1046). Verify phase balance within ±3% at the rack input terminals before energizing.
- Ground bus connection: Connect the facility equipment ground to the rack's common ground bus bar. This is the most critical connection for weld quality — a high-resistance ground connection degrades all four stations simultaneously.
- Individual machine startup: Each FLEXTEC 650 starts independently. Green LED status on each machine's front panel indicates ready state. The front panel displays operating mode (CC/CV), current output, and ArcLink status.
- Wire feeder connection: Connect ArcLink-compatible Lincoln wire feeders (Power Feed 84, Power Feed 25M, LN-25 Pro ArcLink) to each machine's ArcLink output port. The feeder's interface becomes the primary operator control for GMAW/FCAW work — process parameters are stored in the feeder's memory and communicated digitally to the power source.
- SMAW/Gouging: Select CC mode, connect electrode holder and work lead to the machine's heavy-duty Twist-Mate output terminals. For gouging, set amperage to the electrode manufacturer's recommended current for the electrode diameter selected.
- ArcLink-compatible with Lincoln Power Feed 84, Power Feed 84 Dual, Power Feed 25M, LN-25 Pro
- Compatible with Lincoln K857 remote amperage control and K924 remote control kits
- Heavy-duty Twist-Mate output terminals rated for 2/0 through 4/0 AWG electrode cables for 650 A service
- See also: Lincoln 6-Pack RACK FLEXTEC 450 K2957-2 for a six-station 450 A configuration and Lincoln Power Wave S700 K3279-1 for advanced process welding up to 700 A
- Individual machine hot-swap: Each FLEXTEC 650 is independently removable with the main rack disconnect open. Replacement machines must be FLEXTEC 650 units (K2903-1 or equivalent) — do not substitute FLEXTEC 450 or other capacity machines into the K3144-1 rack's high-amperage bus bar system.
- Output cable sizing: At 650 A sustained welding, use minimum 3/0 AWG copper electrode cable for runs under 25 ft and 4/0 AWG for runs up to 50 ft. Undersized cables cause excessive voltage drop, heat generation, and reduced arc voltage at the workpiece.
- Thermal protection: Each FLEXTEC 650 has automatic thermal shutdown above internal temperature limits. If machines shut down during heavy gouging cycles, verify that the rack enclosure ventilation is unobstructed and that the fan-on-demand system is operating on each unit. Blocked cooling air pathways are the most common cause of thermal trips during sustained high-amperage operation.
- Bus bar torque verification: Re-torque all bus bar connections at the rack chassis to 50 ft-lb annually. At 650 A, loose bus bar connections create resistance heating that can damage the rack enclosure over time.
Q: What is the maximum electrode diameter the FLEXTEC 650 can run at 100% duty cycle?
A: At 100% duty cycle (600 A), the FLEXTEC 650 comfortably runs 5/16 in low-hydrogen electrodes (typically requiring 400–500 A) and 3/8 in carbon arc gouging electrodes (typically requiring 500–600 A). For extremely sustained output (multi-hour continuous operation), maintain output at or below 600 A and ensure unobstructed cooling airflow through the machine.
Q: Can I add a 5th or 6th machine to the K3144-1 rack?
A: No. The K3144-1's rack structure, bus bars, and input transformer are sized for exactly 4 FLEXTEC 650 machines. Adding machines would overload the electrical system. To expand to 6 × 650 A stations, the appropriate product is a 6-PACK RACK FLEXTEC 650 (K3144-3, if available) or a second K3144-1 rack fed from the same input power panel.
Q: Is the FLEXTEC 650 rated for 1/2 in carbon arc gouging?
A: The standard 1/2 in (12.7 mm) carbon arc gouging electrode requires 700–800 A for optimal results — slightly above the FLEXTEC 650's 650 A maximum. At 650 A, 1/2 in carbon electrodes can be used for short bursts (below 60% duty cycle), but the result will be a slower, less aggressive gouge than at full-rated 700 A. For sustained 1/2 in gouging, the Lincoln Power Wave S700 (700 A capacity) is the appropriate machine.
Q: Does the K3144-1 include a wire feeder, or is one purchased separately?
A: The K3144-1 includes only the 4-Pack RACK with four FLEXTEC 650 power sources. Wire feeders are not included and are sold separately. Lincoln recommends the Power Feed 84 or Power Feed 25M for GMAW/FCAW applications with the FLEXTEC 650.
Q: What cable size should I use for the input connection at 460 V?
A: At 460 V, 3-phase, four FLEXTEC 650 machines at full rated load draw approximately 200–250 A combined input current. NEC 630.12 requires calculation based on the highest-rated machine × 200% + (number of remaining machines × rated input amperage). Consult a licensed electrician for the specific conductor and conduit sizing for your installation — Lincoln's installation drawing for the K3144-1 (IM1046) provides the required nameplate input data.
Q: How does the FLEXTEC 650 compare to the Lincoln Power Wave S700 for heavy-section welding?
A: The FLEXTEC 650 and Power Wave S700 both serve heavy-section applications, but they differ in architecture. The FLEXTEC 650 is an inverter-based machine optimized for robust SMAW, FCAW, and GMAW with high duty cycle and ArcLink communication. The Power Wave S700 is an advanced process machine with Lincoln's Waveform Control Technology, providing greater arc characteristic customization for precision applications and higher maximum output (700 A). For most heavy structural and pipe welding, the FLEXTEC 650 is the more cost-effective choice; for advanced waveform control on critical applications, the Power Wave S700 adds capability.
Q: Can the 4-Pack RACK FLEXTEC 650 be used outdoors?
A: The NEMA 3R enclosure rating allows the rack to be used in outdoor environments with rain and snow protection (the NEMA 3R rating covers rain, sleet, and windblown debris). However, direct rain impingement into the open-front cooling vents must be avoided. Position the rack under a shelter or tarp during active rain, and ensure the bottom of the rack is elevated on a pallet or concrete pad to prevent water ingress at the base.
