Lincoln Electric  |  SKU: K3279-1

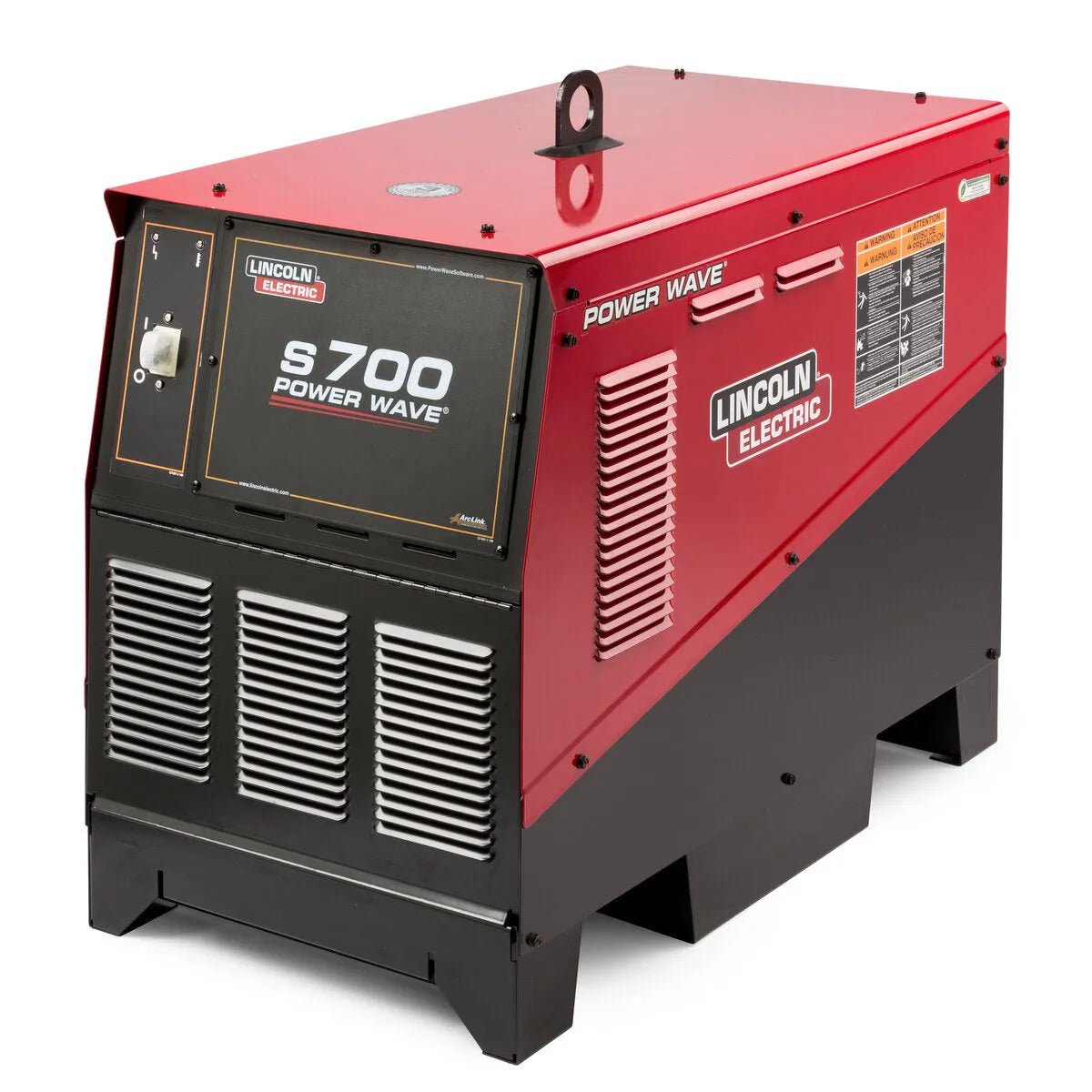

Lincoln Power Wave S700 Advanced Process Welder K3279-1

$20,829.00 $23,841.00
Power Wave® S700 advanced process welders are for high duty cycle applications including heavy equipment, transportation, or other fabrication industries.
Warranty: 5 Years

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln Power Wave S700 Advanced Process Welder K3279-1

Advanced Multi-Process Capabilities up 900A The Power Wave S700 features the advance process control and capabilites for high-output, high-duty cycle applications common in the heavy fabrication industries. With a rating of 700 Amps with 100% duty cycle and a maximum output of 900 Amps with 40% duty cycle, the Power wave S700 is the ideal high-output multi-process advanced power source for demanding applications.

Features
  • 900A Output High-output capability for all day performance in heavy fabrication industries
  • Versatile All-process capability and flexible configuration allows for use in semi-automatic, hard automation or robotic applications.
  • Advanced Connectivity All Power Wavesystems come standard with access to Lincoln Power WaveManager and Lincoln CheckpointProduction Monitoring allowing for advanced remote configuration, process control, and quality assurance.
  • Proven Severe Duty Reliability IP23 rated to withstand harsh environments.
  • 380 575 VAC, 50/60Hz Voltage Input Offers glabal compatibility. Input Voltage Compensation- Provides reliable and consistent operation over ± 10% input voltage variation. 95% Power Factor Correction Energy efficient design results in substantial energy cost savings compared to traditional transformer based equipment. True Energy Measures, calculates and displays instantaneous energy in the weld for critical heat input calculations. 115V (10A) AC Duplex Auxiliary Power Receptacle Features Surge Blocker Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).

Lincoln Power Wave S700 Advanced Process Welder K3279-1

Advanced Multi-Process Capabilities up 900A The Power Wave S700 features the advance process control and capabilites for high-output, high-duty cycle applications common in the heavy fabrication industries. With a rating of 700 Amps with 100% duty cycle and a maximum output of 900 Amps with 40% duty cycle, the Power wave S700 is the ideal high-output multi-process advanced power source for demanding applications.

Features
  • 900A Output High-output capability for all day performance in heavy fabrication industries
  • Versatile All-process capability and flexible configuration allows for use in semi-automatic, hard automation or robotic applications.
  • Advanced Connectivity All Power Wavesystems come standard with access to Lincoln Power WaveManager and Lincoln CheckpointProduction Monitoring allowing for advanced remote configuration, process control, and quality assurance.
  • Proven Severe Duty Reliability IP23 rated to withstand harsh environments.
  • 380 575 VAC, 50/60Hz Voltage Input Offers glabal compatibility. Input Voltage Compensation- Provides reliable and consistent operation over ± 10% input voltage variation. 95% Power Factor Correction Energy efficient design results in substantial energy cost savings compared to traditional transformer based equipment. True Energy Measures, calculates and displays instantaneous energy in the weld for critical heat input calculations. 115V (10A) AC Duplex Auxiliary Power Receptacle Features Surge Blocker Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).

Specifications
Product Weights & Dimensions
Product Height (in) 30.1
Product Height (mm) 765
Product Width (in) 485
Product Width (mm) 485
Product Length (in) 36.7
Product Length (mm) 932
Product Weight (lb) 167.832
Product Weight (kg) 167.832
Machines
Max Rating 900
Basic Specifications
Input Voltage 460,380/400/415,575
Input Current 55A/46A/42A/38A , (74A/60A/56A/49A)
Input Hertz 50,50/60,60
Input Phase 3
Input Power 380/415/460/575/3/50/60
Mode Icon CC/CV
Output Range 20 - 900A
Polarity DC
Rated Output 700A/44V/100% , (900A/44V/60%)
Processes Stick (SMAW)
Gouging (CAC-A)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Semi-Automatic Welding
Equipment Classification Advanced
Welding Technology Inverter/Chopper
