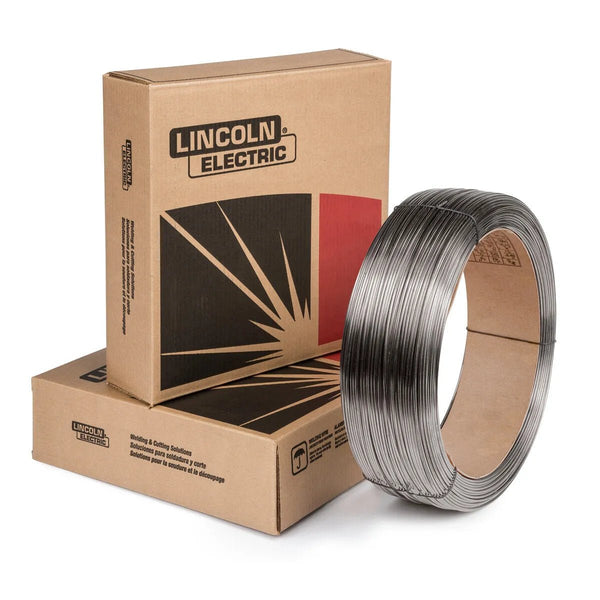

Lincoln ED012732 Innershield NS-3M Flux-Cored FCAW-S Welding Wire, 0.120 in, 50 lb Coil

SKU: ED012732
$350.91 $387.00
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.


Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)


Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.


Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.



Innershield® NS-3M from Lincoln Electric is designed for very high deposition rates and increased resistance to hydrogen cracking and porosity on steel containing sulfur or contaminates.
AWS / Classification: E70T-4, E70T4-AZ-CS3

Overview

Lincoln Innershield NS-3M 0.120 inch FCAW-S Welding Wire is designed for very high deposition rates and increased resistance to hydrogen cracking and porosity on steel containing sulfur or contaminates. Recommended for single or multiple pass welding on carbon steel and some low alloy steels in applications without impact strength requirements.

Features
  • Very high deposition rates
  • Increased resistance to hydrogen cracking and porosity
  • Soft, low penetrating arc for minimal base material admixture

Typical Applications

  • Open groove welds
  • Machinery bases and heavy equipment repair
  • Installing wear plates
  • 6.4 - 12.7 mm (1/4 - 1/2 in) single pass fillet and lap welds

Welding Positions

  • Flat/Horizontal
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E70T-4
AWS AWS A5.36E70T4-AZ-CS3
CWB CSA W48E490T4-AZ-CS3-H16 (E492T-4-H16)
DB ISO 17632-AT 38 Z V N 3
Classification PolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %
E70T-4 Requirement DC+400 (58) min.480-660 (70-95)22 min.
Typical Result, As-welded DC+410 (59)570-640 (82-93)23
Classification Polarity%Al%C%Mn%P%S%Si
E70T-4 Requirement DC+0.30 max.1.75 max.0.03 max.0.03 max.0.60 max.
Typical Result DC+1.3-1.50.20-0.270.35-0.450.0110.0040.26-0.30
Diameter PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
5/64 in (2.0 mm) DC+54 (2 1/4)5.1 (200)29-312805.5 (12.2)4.6 (10.1)83
5/64 in (2.0 mm) DC+54 (2 1/4)6.1 (240)30-323156.7 (14.8)5.5 (12.1)82
5/64 in (2.0 mm) DC+54 (2 1/4)6.6 (260)30-323307.3 (16.0)6.0 (13.2)83
5/64 in (2.0 mm) DC+54 (2 1/4)7.6 (300)31-333508.4 (18.6)6.9 (15.2)82
3/32 in (2.4 mm) DC+76 (3)2.8 (110)28-302504.6 (10.1)3.7 (8.2)81
3/32 in (2.4 mm) DC+76 (3)3.8 (150)29-313006.4 (14.0)5.3 (11.7)84
3/32 in (2.4 mm) DC+76 (3)4.7 (185)30-323507.9 (17.4)6.6 (14.6)84
3/32 in (2.4 mm) DC+76 (3)5.8 (230)31-334009.8 (21.6)8.3 (18.3)85
3/32 in (2.4 mm) DC+76 (3)7.0 (275)32-3445011.8 (26.0)10.0 (22.0)85
0.120 in (3.0 mm) DC+ Electrical Stickout: 2 - 3/4 in (70 mm)76 (3)3.5 (140)28-303809.0 (19.8)7.0 (15.5)78
0.120 in (3.0 mm) DC+ Electrical Stickout: 2 - 3/4 in (70 mm)76 (3)4.4 (175)29-3145011.2 (24.6)9.1 (20.0)81
0.120 in (3.0 mm) DC+ Electrical Stickout: 2 - 3/4 in (70 mm)76 (3)5.1 (200)30-3250012.7 (28.0)10.5 (23.2)83
0.120 in (3.0 mm) DC+ Electrical Stickout: 2 - 3/4 in (70 mm)76 (3)7.6 (225)31-3355014.2 (31.4)11.9 (26.2)83
0.120 in (3.0 mm) DC+ Electrical Stickout: 3 - 3/4 in (95 mm)102 (4)5.3 (210)35-3745013.2 (29.0)11.3 (25.0)86
0.120 in (3.0 mm) DC+ Electrical Stickout: 3 - 3/4 in (95 mm)102 (4)6.4 (250)36-3850015.6 (34.5)13.2 (29.0)84
0.120 in (3.0 mm) DC+ Electrical Stickout: 3 - 3/4 in (95 mm)102 (4)7.6 (300)37-3955018.8 (41.5)15.4 (34.0)82
0.120 in (3.0 mm) DC+ Electrical Stickout: 3 - 3/4 in (95 mm)102 (4)9.0 (355)38-4060022.2 (49.0)18.0 (39.5)81
LECO Diameter 0.120 in (3.0 mm)
LECO Package 50 lb Coil
Diameter (in) 0.120
Downloads
Includes
  • (1) 50 lb Coil
