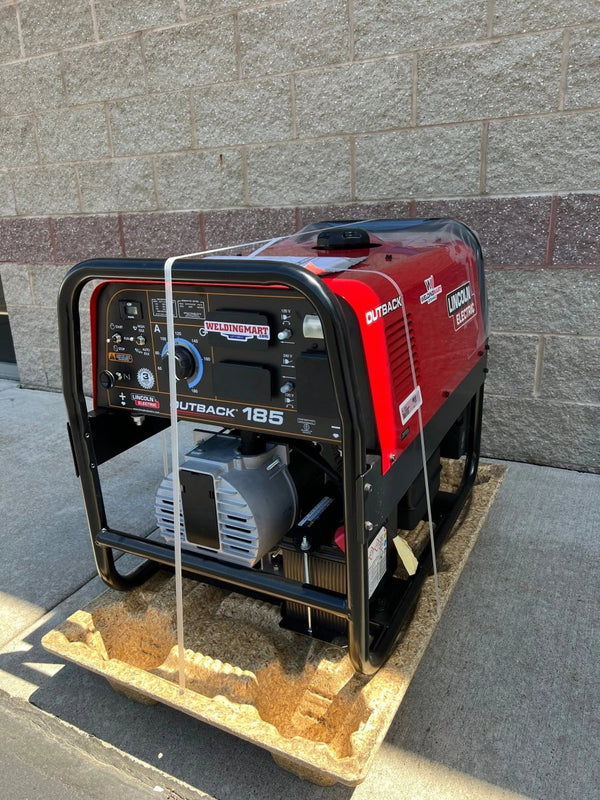

The Lincoln Outback 185 engine-driven welder delivers exceptional portability and performance for contractors, maintenance crews, and DIY enthusiasts who need reliable DC stick welding and AC generator power in a compact, easy-to-transport package. Engineered specifically for mobile applications, this versatile machine features innovative Low-Lift grab bars on both ends that provide superior leverage when loading and unloading from truck beds, making it the most user-friendly portable welder in its class. The rugged 1-1/4 inch diameter tubular frame surrounds the entire unit, providing comprehensive protection against jobsite damage while maintaining the compact footprint needed for easy transportation between work locations.
Designed with operator convenience as a top priority, the Outback 185 places all engine controls on the front panel for quick access and easy starting, especially when mounted on truck beds or in tight spaces. This thoughtful design includes an intuitive electric start switch and engine choke control positioned for maximum visibility and accessibility. The generous 6.8 gallon (25.7 liter) fuel tank significantly extends operating time between refueling stops, allowing for longer productive work periods without interruption. The large fuel fill opening simplifies the refueling process, reducing spills and minimizing downtime during extended operations.
The Outback 185 delivers impressive welding performance with up to 185 amps of DC output, providing the capability to run electrodes up to 5/32 inch (4 mm) diameter for a wide range of repair and fabrication applications. This powerful yet portable machine excels in maintenance welding, repair operations, ranch and farm applications, and general fabrication tasks where mobility and reliability are essential. The smooth DC welding arc ensures consistent electrode performance with minimal spatter, allowing for high-quality welds even in challenging field conditions where precision and dependability are critical requirements.
Beyond its primary welding functions, the Outback 185 serves as a versatile AC power generator with 5,700 watts peak and 5,200 watts continuous output, transforming any worksite into a complete power station. This substantial auxiliary power can operate grinders, work lights, pumps, and various power tools, or serve as emergency power when needed. The system's versatility extends to wire welding capabilities, as users can plug in a Lincoln Electric POWER MIG 140C or POWER MIG 180C to expand their welding process options. Additionally, the Outback 185 can power a Lincoln Electric Tomahawk 375 Air plasma cutter, creating a comprehensive metal fabrication solution in a single portable package.
Powered by a reliable Kohler CH440 gasoline engine, the Outback 185 combines industrial-grade performance with exceptional fuel efficiency in a compact 295-pound package. The single-cylinder air-cooled engine delivers 14 horsepower of consistent power while maintaining the lightweight profile needed for true portability. With its comprehensive three-year warranty coverage on parts and labor (engine warranted separately), the Outback 185 represents Lincoln Electric's commitment to quality, durability, and customer satisfaction in a portable welding and power generation solution designed specifically for professionals who demand mobility without compromising performance.
Features
- The Outback 185 engine driven welder has portable DC stick welding with AC generator power.
- Low-Lift Grab Bars (Patent Pending)
- All Engine Controls on Front Control Panel
- 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
- 6.8 Gallon (25.7 Liter) Fuel Tank
Specifications
| Dimensions (H x W x D) | 25.6 in x 21.8 in x 31.5 in (651 mm x 553 mm x 800 mm) |
| Net Weight | 295 lbs (134 kg) |
| Machines Processes | Stick (SMAW) |
| Output Range by Mode | CC-Stick: 50 – 185 Amps |
| Single Phase Auxiliary Output | 5,200 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 6-50R |
| Engine Brand & Model | Kohler CH440 |
| Engine Description | 1 Cylinder Air Cooled Gasoline Engine |
| Engine Horsepower | 14 HP |
| High Idle Operating Speed @ Rated Output | 3600 |
| Fuel Tank Size (US gal.) | 6.8 |
| Fuel Tank Size (L) | 25.7 |
| Oil Capacity (qts.) | 1.2 |
| Oil Capacity (L) | 1.1 |
| Typical Application | General Fabrication Maintenance & Repair Repair Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
The Outback 185 Engine Driven Welder (Kohler) U2706-2 supports Stick (SMAW) and TIG (GTAW) welding as standard processes. Many engine-driven models in this family also support MIG (GMAW) and flux-core (FCAW) welding when paired with an optional wire feeder. Check the spec sheet for the exact output range and recommended wire feeder compatibility.
Yes. Lincoln Electric engine-driven welders in this class include AC generator power — typically 120V and 240V auxiliary power outlets — making them ideal for jobsite use where power tools, lights, or other equipment need to run alongside welding operations. Refer to the spec sheet for exact generator wattage.
Lincoln engine drives in this class are available with Kohler, Kubota, or Perkins diesel/gasoline engines depending on the specific model variant. The engine brand and displacement is listed on the product label and in the owner's manual. Contact WeldingMart if you need to confirm the exact engine for a specific unit.
Duty cycle varies by amperage setting. At maximum rated output the duty cycle is typically 100% — engine drives are designed for continuous, all-day operation in demanding field environments. Refer to the spec sheet for the duty cycle curve at specific amperage levels.
Yes — this is a factory demo or low-hour unit directly from Lincoln Electric. Units may show light cosmetic marks from display use but are mechanically sound. Each unit includes any applicable remaining Lincoln Electric warranty. Contact WeldingMart for warranty status on the specific unit number.
Factory demo engine drives typically include the base machine and standard accessories as specified by Lincoln Electric. Consumables (electrodes, gas cylinders) are not included. See the product listing details or contact WeldingMart to confirm what is included with your specific unit.
