Lincoln Electric  |  SKU: ED021274

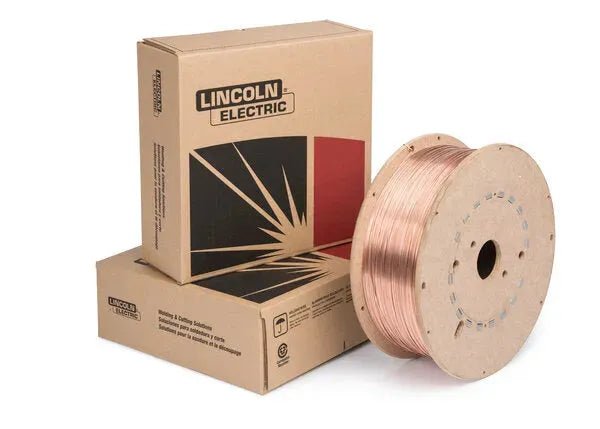

Lincoln Electric SuperArc® L-56 MIG Welding Wire 0.035” Diameter 44lb Fiber Spool - ED021274

$212.52
Lincoln Electric SuperArc® L-56 MIG Welding Wire 0.035” Diameter 44lb Fiber Spool - ED021274 features a copper-coated design for superior arc performance and long tip life. Ideal for welding metals with medium to heavy mill scale and supports multiple transfer modes for versatility.
AWS / Classification: ER70S-6

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.



More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

The Lincoln Electric SuperArc® L-56 - ED021274 is a premium copper-coated MIG welding wire engineered for outstanding performance on metals with medium to heavy mill scale. Designed with high levels of manganese and silicon deoxidizers, this wire offers superior tolerance for challenging surface conditions while ensuring excellent toe-wetting for smooth, clean bead appearance. The durable copper coating extends contact tip life, making it ideal for continuous high-production use. This 0.035” diameter wire supports short-circuiting, globular, axial spray, and pulsed spray transfer, providing versatility across a range of fabrication and structural welding applications. The 44lb fiber spool ensures easy handling and efficient use in demanding work environments.

  • High manganese and silicon content for superior deoxidization on medium to heavy mill scale surfaces
  • Excellent toe-wetting for smooth, uniform bead appearance
  • Copper-coated wire for extended contact tip life and consistent feeding
  • Supports multiple transfer modes: short-circuiting, globular, axial spray, and pulsed spray
  • 0.035” diameter wire in a 44lb fiber spool for convenience and efficiency
  • Meets Buy America requirements for government and infrastructure projects

    The Lincoln Electric SuperArc® L-56 - ED021274 is a premium copper-coated MIG welding wire engineered for outstanding performance on metals with medium to heavy mill scale. Designed with high levels of manganese and silicon deoxidizers, this wire offers superior tolerance for challenging surface conditions while ensuring excellent toe-wetting for smooth, clean bead appearance. The durable copper coating extends contact tip life, making it ideal for continuous high-production use. This 0.035” diameter wire supports short-circuiting, globular, axial spray, and pulsed spray transfer, providing versatility across a range of fabrication and structural welding applications. The 44lb fiber spool ensures easy handling and efficient use in demanding work environments.

    • High manganese and silicon content for superior deoxidization on medium to heavy mill scale surfaces
    • Excellent toe-wetting for smooth, uniform bead appearance
    • Copper-coated wire for extended contact tip life and consistent feeding
    • Supports multiple transfer modes: short-circuiting, globular, axial spray, and pulsed spray
    • 0.035” diameter wire in a 44lb fiber spool for convenience and efficiency
    • Meets Buy America requirements for government and infrastructure projects

      Includes
      What's Included
      • (1) 44 lb Fiber Spool

      Specifications
      CONFORMANCE
      CONFORMANCES SPECIFICATION CLASSIFICATION
      AWS AWS A5.18 ER70S-6
      ABS ABS - Part 2 3YSA, 3YSA H5
      CWB CSA W48 B-G 49A 3 C1 S6, B-G 49A 3 C1 S6 (B-G 49A 3 C G6), B-G 49A 3 Z S6
      DNV-GL DNV - 2.9 III YMS H5
      DB ISO 14341-A G 42 3 C1 3Si1, G 46 4 M21 3Si1
      LR LR - Chapter 11 3YS H5
      MIL MIL-E-23765/1D MIL-70S-6
      MECHANICAL PROPERTIES
      Classification Shielding Gas Polarity Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, % Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F) Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
      ER70S-6 Requirement 100% CO2 DC+ 400 (58) min. 480 (70) min. 22 min. 27 (20) min.
      Typical Result, As-welded 100% CO2 DC+ 420 (61) 530-570 (77-82) 25 43-121 (32-89)
      Typical Result, As-welded 75% Ar, 25% CO2 DC+ 430 (62) 530-600 (77-86) 23 62-182 (46-135) 42-156 (31-115)
      Typical Result, As-welded 90% Ar, 10% CO2 DC+ 490 (71) 600 (87) 24 87-109 (64-80)
      WIRE COMPOSITION
      Classification %C %Cr %Mn %Mo %Ni %P %S %Si %V %Total Cu
      ER70S-6 Requirement 0.06 - 0.15 0.15 max. 1.40 - 1.85 0.15 max. 0.15 max. 0.025 max. 0.035 max. 0.80 - 1.15 0.03 max. 0.50 max.
      Typical Result 0.07-0.10 0.01-0.05 1.41-1.58 0.01 max. 0.03 max. 0.003-0.013 0.013 max. 0.80-0.98 0.005 max. 0.13-0.29
      TYPICAL OPERATING PROCEDURES
      Diameter Transfer Mode Shielding Gas Polarity CTWD, mm (in.)⁽¹⁾ Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Melt-off Rate, kg/hr (lb/hr)
      0.025 in (0.6 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 2.5 (100) 17 35 0.4 (0.9)
      0.025 in (0.6 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 6.4 (250) 19 80 0.9 (2.0)
      0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 1.9 (75) 17 35 0.4 (0.9)
      0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 3.8 (150) 18 70 0.8 (1.8)
      0.030 in (0.8 mm) Short Circuit Transfer 100% CO2 DC+ 9-12 (3/8-1/2) 7.6 (300) 22 130 1.6 (3.6)
      0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 2.5 (100) 18 80 0.7 (1.6)
      0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 3.8 (150) 19 120 1.1 (2.4)
      0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 9-12 (3/8-1/2) 6.4 (250) 22 175 1.8 (4.0)
      0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 9.5 (375) 23 195 2.7 (6.0)
      0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.7 (500) 29 230 3.6 (8.0)
      0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 15.2 (600) 30 275 4.4 (9.6)
      0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 3.2 (125) 19 145 1.5 (3.4)
      0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 3.8 (150) 20 165 1.8 (4.0)
      0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 100% CO2 DC+ 12-19 (1/2-3/4) 5.1 (200) 21 200 2.5 (5.4)
      0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 8.9 (350) 27 285 4.2 (9.2)
      0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.1 (475) 30 335 5.7 (12.5)
      0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.7 (500) 30 340 6.0 (13.2)
      0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 7.6 (300) 30 300 4.8 (10.7)
      0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 8.1 (320) 30 320 5.2 (11.5)
      0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-19 (1/2-3/4) 12.3 (485) 32 430 7.8 (17.1)
      1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 5.3 (210) 27 325 4.8 (10.7)
      1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 6.0 (235) 28 350 5.4 (12.0)
      1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 12-25 (1/2-1) 7.4 (290) 29 430 6.7 (14.8)
      LECO Diameter 0.035 in (0.9 mm)
      LECO Package 44 lb Fiber Spool
      Diameter (in) 0.035

      The Lincoln Electric SuperArc® L-56 - ED021274 is a premium copper-coated MIG welding wire engineered for outstanding performance on metals with medium to heavy mill scale. Designed with high levels of manganese and silicon deoxidizers, this wire offers superior tolerance for challenging surface conditions while ensuring excellent toe-wetting for smooth, clean bead appearance. The durable copper coating extends contact tip life, making it ideal for continuous high-production use. This 0.035” diameter wire supports short-circuiting, globular, axial spray, and pulsed spray transfer, providing versatility across a range of fabrication and structural welding applications. The 44lb fiber spool ensures easy handling and efficient use in demanding work environments.

      • High manganese and silicon content for superior deoxidization on medium to heavy mill scale surfaces
      • Excellent toe-wetting for smooth, uniform bead appearance
      • Copper-coated wire for extended contact tip life and consistent feeding
      • Supports multiple transfer modes: short-circuiting, globular, axial spray, and pulsed spray
      • 0.035” diameter wire in a 44lb fiber spool for convenience and efficiency
      • Meets Buy America requirements for government and infrastructure projects

        The Lincoln Electric SuperArc® L-56 - ED021274 is a premium copper-coated MIG welding wire engineered for outstanding performance on metals with medium to heavy mill scale. Designed with high levels of manganese and silicon deoxidizers, this wire offers superior tolerance for challenging surface conditions while ensuring excellent toe-wetting for smooth, clean bead appearance. The durable copper coating extends contact tip life, making it ideal for continuous high-production use. This 0.035” diameter wire supports short-circuiting, globular, axial spray, and pulsed spray transfer, providing versatility across a range of fabrication and structural welding applications. The 44lb fiber spool ensures easy handling and efficient use in demanding work environments.

        • High manganese and silicon content for superior deoxidization on medium to heavy mill scale surfaces
        • Excellent toe-wetting for smooth, uniform bead appearance
        • Copper-coated wire for extended contact tip life and consistent feeding
        • Supports multiple transfer modes: short-circuiting, globular, axial spray, and pulsed spray
        • 0.035” diameter wire in a 44lb fiber spool for convenience and efficiency
        • Meets Buy America requirements for government and infrastructure projects
