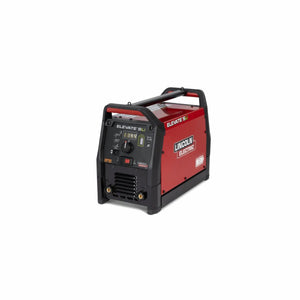

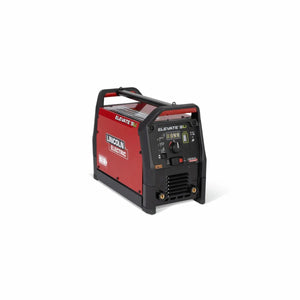

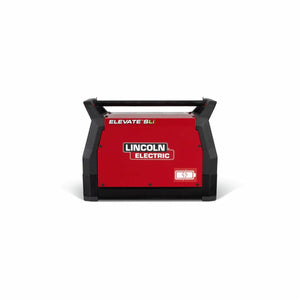

Lincoln Elevate SLi - Battery-Powered TIG and Rolling Case Package - K5624-1

SKU: K5624-1
$3,863.60

Financing Options

As low as /mo with.
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
The Lincoln Elevate SLi Battery-Powered Welder TIG and Rolling Case Package delivers lightweight, off-grid power with dual-process welding capabilities for remote and versatile applications.

Overview

The Lincoln Elevate SLi Battery-Powered Welder TIG and Rolling Case Package - K5624-1 is designed to revolutionize portable welding solutions. Built for tough jobsite conditions, this lightweight yet rugged welder delivers exceptional cordless Stick and TIG performance wherever the job takes you. Featuring Lincoln Electric’s trusted arc stability and industry-leading reliability, the Elevate SLi provides operators with unmatched freedom, eliminating the need for heavy generators or long extension cables. Perfect for remote work environments, it combines robust welding capabilities with advanced battery technology in a compact and highly maneuverable package.

The Elevate SLi offers a powerful 145A output that supports a wide range of electrodes, including 6010 and 7018 rods up to 5/32 inch. Proven Chopper Technology ensures smooth arc starts, minimal spatter, and clean bead profiles. For TIG operations, the Touch Start TIG feature delivers precise arc initiation without contamination. Welders can fine-tune performance with adjustable Hot Start and Arc Force settings to optimize arc starting and penetration. Powered by a Lithium Iron Phosphate internal battery, the Elevate SLi achieves rapid 60-minute charging via a standard 120V connection and is capable of welding up to 21 sticks on a single charge. With a total weight of just 33 lbs and an included rolling case for transport, this machine elevates productivity and sustainability on any jobsite.

Key Features
  • Outstanding 145A output power ensures highly efficient Stick and TIG welding performance.
  • Proven Chopper Technology guarantees easy starts, smooth arcs, low spatter, and optimal bead appearance.
  • Compatible with a wide range of rods, including 6010 and 7018 up to 5/32 inch, and equipped with Touch Start TIG functionality.
  • Adjustable Hot Start and Arc Force features allow greater control over arc initiation and penetration.
  • Lightweight and portable, weighing only 33 lbs with an ergonomic adjustable shoulder strap for easy carrying.
  • Internal Lithium Iron Phosphate battery enables up to 21 stick welds per charge with a rapid 60-minute recharge time using standard 120V power.
  • Built for durability with an IP23S environmental rating and robust internal fan-as-needed system for extended performance.
  • Backed by a 3-year warranty from Lincoln Electric for added peace of mind.

Specifications

Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz): 120/1/60

Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle):
Stick: 145A/25.8V

Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle):
TIG: 145A/15.8V

Product Weights & Dimensions

Dimensions (H x W x D): 14 in x 9.1 in x 18.3 in (356 mm x 231 mm x 465 mm)
Net Weight: 33 lbs (15 kg)

General Specifications

Machine Processes:
• Stick (SMAW)
• TIG (GTAW)

Open Circuit Voltage: Average: 55V Peak: 72V
Number of Operators per Machine: 1

Input Voltage: 120
Input Hertz: 60 Hz
Input Phase: Single Phase

Mode Icon: CC

Output Range:
Stick: 10-145A
TIG: 4-145A

Polarity: DC

Machine Technologies & Connections

IEC Rating: IP23S
Machine Communication Technology: Analog
Work Lead Connector Type: Dinse

Battery

Battery Type: Lithium Iron Phosphate (LiFePO4) Battery
Watt Hours (Wh): 576

Charge Time: 60 Minutes

Applications

Typical Applications:
• Construction
• Mining
• Railroad Maintenance
• Automotive
• Brewery
• Construction & Field Erection
• General Fabrication
• Maintenance & Repair
• Marine Applications
• Marine Fabrication & Repair
• Offshore
• Repair Welding
• Shipbuilding
• Structural Fabrication

Warranty

Warranty: 3 Years

Details
Downloads

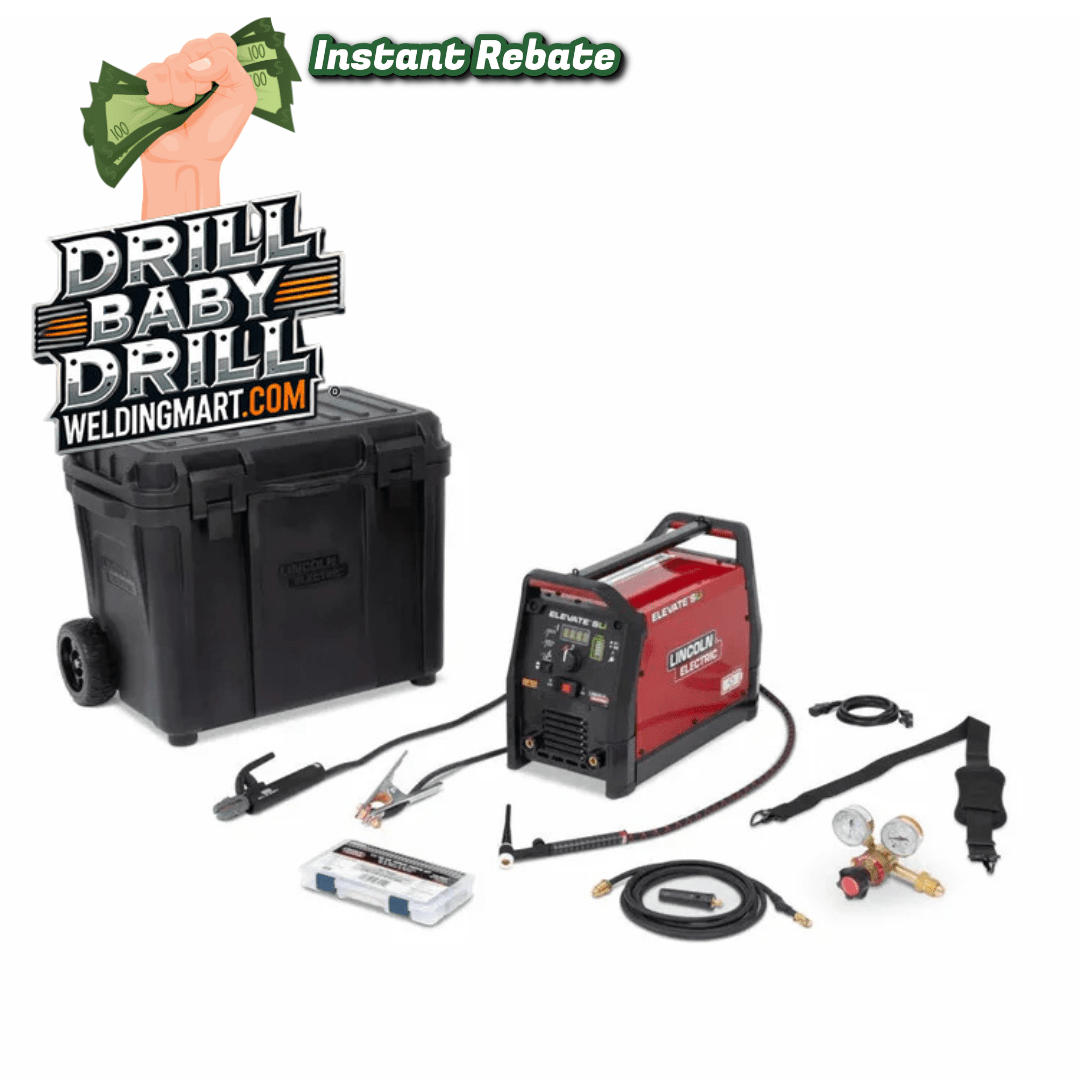

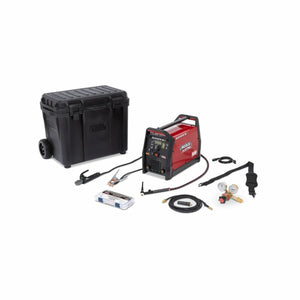

Includes
  • ELEVATE™ SLi Battery Powered Welder
  • 200A Industrial Electrode Holder, Cable and Twist Mate™ Plug (K5612-1)
  • Work Cable and Clamp with Twist Mate™ Plug (K5482-1)
  • Fully Adjustable Shoulder Strap (KP5656-1)
  • 120V Input Cord, 8 ft. (2.4m) (KP5655-1)
  • Rolling Carrying Case (K5548-1)
  • Caliber® 17 Series TIG Torch - Flex/Valve 12.5 ft. (K4841-17FV-1)
  • Small Twist Mate™ Torch Adapter (K960-2)
  • Caliber® 17/18/26 Series TIG Torch Expendables Kit - 1/16 in. -1/8 in. (KP4760-HD)
  • Single-Stage Flowgauge Regulator Ar5-30-580 (3000369)
