Full Three Year Factory Warranty

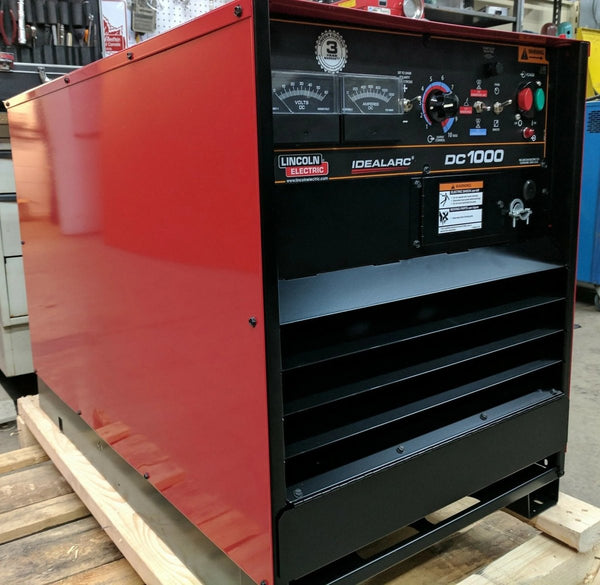

The Lincoln Idealarc DC-1000 represents the industry standard for high-capacity submerged arc welding applications, delivering an impressive 1300 amps of smooth DC output for demanding industrial fabrication processes. This powerhouse welding system combines raw welding power with exceptional multi-process versatility, making it the preferred choice for manufacturing operations requiring high deposition rates and superior weld quality in heavy plate applications. The DC-1000's legendary reliability and consistent performance have established it as the benchmark power source for shipbuilding, structural steel fabrication, pressure vessel manufacturing, and other heavy industrial applications where weld integrity and production efficiency are critical requirements.
Engineered with versatility as a core design principle, the DC-1000 features specialized 500-amp output connections that provide enhanced arc characteristics for precision low-amperage submerged arc and MIG welding procedures. This dual-output capability allows a single power source to handle both high-volume production welding and precision fabrication tasks, maximizing equipment utilization and reducing capital investment requirements. The system's single-range control delivers precise output adjustment across the entire operating range, simplifying setup procedures and ensuring consistent weld parameters for both semiautomatic and fully automated welding operations.
The DC-1000's comprehensive connectivity options include convenient terminal strips and heavy-duty output studs that facilitate integration with automated welding systems, remote control interfaces, and specialized welding fixtures. These thoughtfully designed connection points simplify installation in production environments where the power source may be located at a considerable distance from the actual welding operation, allowing for clean cable routing and secure electrical connections. The system's analog communication technology ensures reliable interface with both legacy control systems and modern automation platforms, providing exceptional flexibility for diverse manufacturing applications.
The practical, space-efficient design of the DC-1000 features a low-profile case that allows for installation under workbenches or in areas with limited overhead clearance, maximizing usable floor space in manufacturing facilities. The stackable configuration supports up to two machines in a vertical arrangement, effectively doubling the available welding capacity without increasing the system's footprint. This thoughtful approach to industrial design makes the DC-1000 particularly valuable in fabrication shops where space utilization directly impacts operational efficiency and production capacity.
Lincoln Electric's commitment to durability and reliability is evident in the DC-1000's robust construction and comprehensive environmental protection features. Internal components, including transformer windings, rectifiers, and circuit boards, receive specialized protective coatings that guard against moisture and corrosion in harsh industrial environments. The easily removable side panels provide convenient access to internal components for routine maintenance and service, minimizing downtime and simplifying troubleshooting procedures. This exceptional reliability is backed by Lincoln Electric's industry-leading seven-year warranty on the power rectifier, providing manufacturers with confidence in their critical welding infrastructure and ensuring long-term production continuity for high-volume welding operations.
Features
- The Idealarc DC-1000 welder for submerged arc applications offers multi-process flexibility for semiautomatic and automatic welding.
- 500 amp output connections for excellent performance at lower amperages.
- Single range control - for precise output control and easy operation.
- Terminal strip and output studs - for remote connections and cable.
- Low profile case - allows installation under a workbench and for stacking up to 2 machines to conserve floor space.
Specifications
| Dimensions (H x W x D) | 30.7 in x 22.25 in x 39 in (781 mm x 565 mm x 991 mm) |
| Net Weight | 821 lbs (372 kg) |
| Machines Processes | Stick (SMAW) Flux-Cored (FCAW) Submerged Arc (SAW) |
| Input Voltage | 230/460 |
| Input Current | 193/96.5A |
| Input Hertz | 60 |
| Input Phase | 3 |
| Input Power | 230/460/3/60 |
| Mode Icon | CC/CV |
| Output Range | 150-1300A DC,16-46V |
| Polarity | DC |
| Machines Communication Technology | analog |
| Wire Feeder Supply Voltage | 115VAC |
| Amphenol Pins (type of connector) | Terminal Strip |
| Work Lead Connector Type | Lug |
| Typical Application | Heavy Fabrication |
| Warranty | 3 Years |
