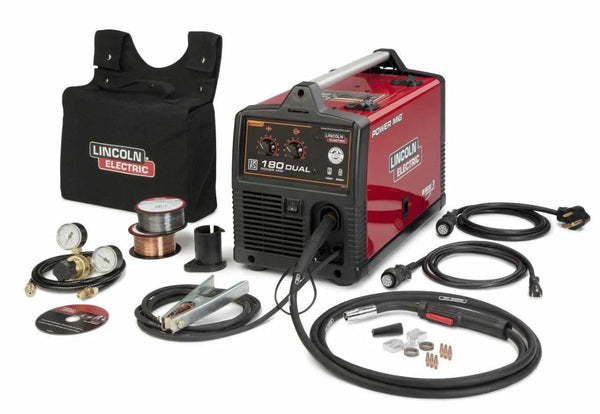

Lincoln Power MIG 180 Dual MIG Welder - K3018-2
The Lincoln Power MIG 180 Dual is a professional-grade wire welder engineered to deliver exceptional performance across diverse applications, from agricultural maintenance to automotive repair and fabrication work. This versatile portable system features dual 120 or 208/230 volt input power capability, allowing you to use the same machine to weld at home, in the shop or out on the job site. It's a great choice for sheet metal and light frame autobody work, farm or small shop applications. Incorporating Lincoln's revolutionary Diamond Core Technology, the Power MIG 180 Dual produces a remarkably forgiving arc with excellent out-of-position capabilities, minimal spatter generation, and an expansive voltage sweet spot at any given wire feed speed, ensuring superior results whether working with steel, stainless steel, or aluminum materials.
The Power MIG 180 Dual features an industrial-grade cast aluminum wire drive system that establishes new standards for feeding reliability and performance. The precision dual gear-driven drive rolls deliver positive wire traction under all conditions, while patented split wire guides ensure optimal wire alignment throughout the feed path. The critical brass-to-brass gun connection enhances electrical conductivity for improved arc characteristics, and the large industrial closed-design drive motor provides substantial torque for consistent performance even in demanding applications. This comprehensive approach to wire feeding creates a robust system that minimizes the feeding issues commonly encountered in portable wire welders, delivering professional-level reliability in a compact package.
Designed with practical usability considerations at its core, the Power MIG 180 Dual incorporates a no-hassle tool-less design philosophy that simplifies routine adjustments including input power changes, wire spool mounting, wire drive service, and polarity configuration. The system comes factory-configured for spool gun compatibility, allowing users to simply remove the standard MIG gun and connect the economical Magnum PRO 100SG spool gun (available separately) for enhanced aluminum wire feeding performance. Lincoln's industry-leading approach to electronics protection includes "potted" circuit boards that seal sensitive components from environmental contaminants and a tough plastic tray system that adds structural rigidity while enhancing shock resistance, ensuring reliable operation even in demanding industrial environments where equipment durability is paramount.
Features
- Dual Input Power Capability - Select 120 or 208/230 volt input power
- Industrial Cast Aluminum Drive - Dual gear-driven drive rolls deliver positive traction.
- Diamond Core Technology - Delivers a forgiving arc, excellent out-of-position arc action, low spatter and a wide voltage sweet spot
- Spool Gun Ready - Just remove the standard MIG gun and plug in the economical Magnum PRO 100SG spool gun
- No Hassle Tool-less Design For input power changes, wire spool mounting, wire drive service and polarity changes.
Specifications
| Dimensions (H x W x D) | 14 in x 10.2 in x 18.6 in (357 mm x 258 mm x 472 mm) |
| Net Weight | 64 lbs (29.03 kg) |
| Input Voltage | 115/208/230 |
| Input Current | 20A |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 115/208/230/1/60 |
| Mode Icon | CV |
| Output Range | 120V: 30-140 A 230V: 30-180 A |
| Polarity | DC |
| Typical Application | Automotive Brewery Distillery General Fabrication Maintenance & Repair |
| Warranty | 3 Years |
