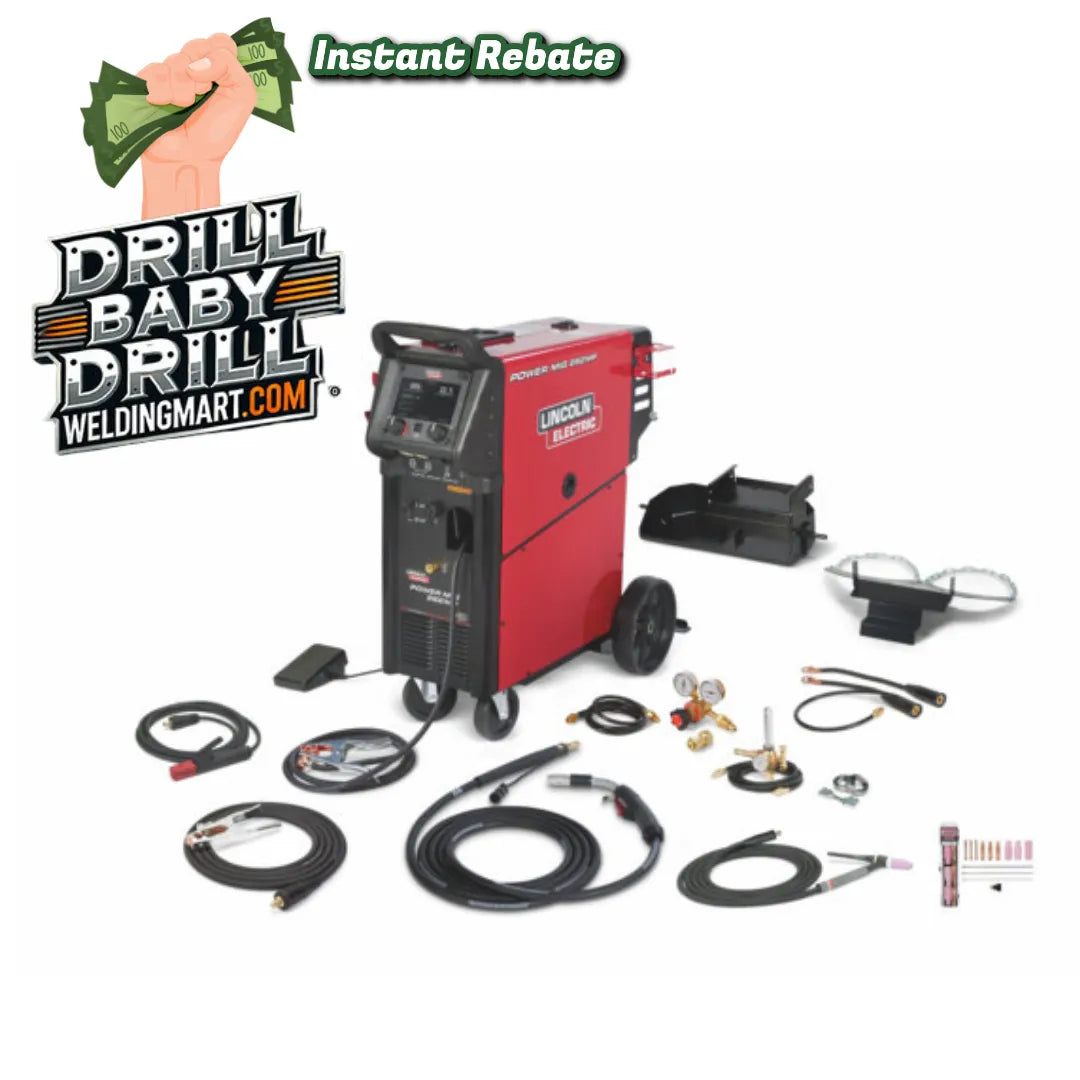

Lincoln POWER MIG 262MP Multi-Process Welder Educational One-Pak - K5636-1

SKU: K5636-1old
$6,077.02 $6,089.99
4% REBATE

Current Offers

4% Instant Rebate — Applied at Checkout ·

Financing Options

As low as /mo with.
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
***4% Instant Rebate*** The POWER MIG 262MP Multi-Process Welder is capable of Pulsed MIG and constant voltage MIG, DC TIG, DC Stick and Flux Core applications up to 300 amps. Perfect for autobody repair, fabrication, education-use, general maintenance and so much more!

Overview

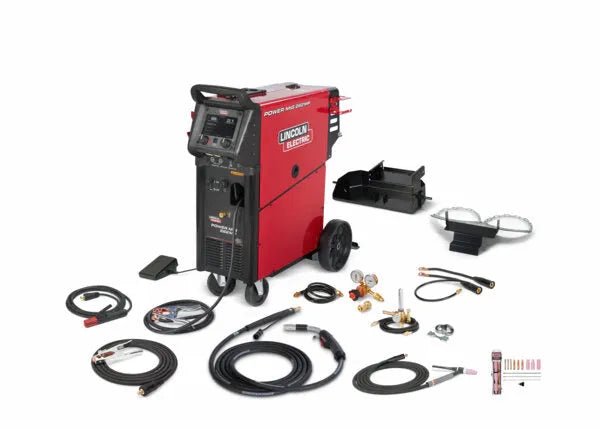

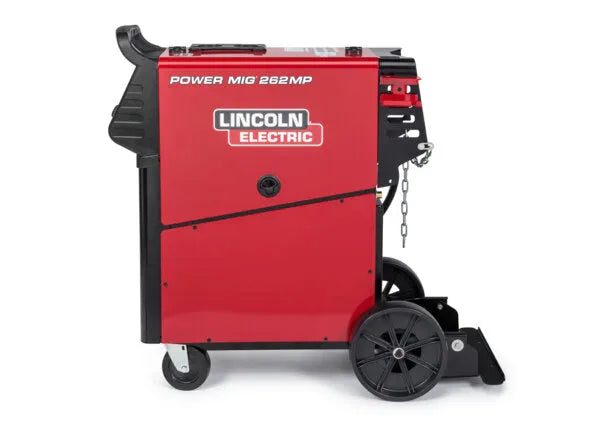

Lincoln K5636-1 POWER MIG 262MP EDUCATIONAL ONE-PAK

Experience the ultimate in professional-grade performance with the POWER MIG 262MP. With a max output of 300 Amps and multi-process functionality including MIG, Pulsed MIG, Stick, Flux-Cored, and TIG, the 262MP delivers all the performance and versatility you expect from the POWER MIG family. Equipped with cutting-edge technology like Ready.Set.Weld, ArcFX, and Weld Set Memory, the POWER MIG 262MP puts precise machine control at your fingertips. Navigate effortlessly through its features with the intuitive 7-inch LCD display, ensuring seamless operation and unparalleled operator control. From autobody projects to all-day fabrication, trust the POWER MIG262MP to deliver the unmatched performance and reliability you need.

Key Features

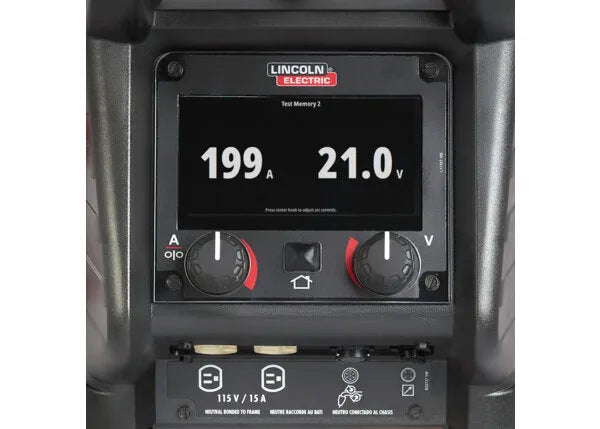

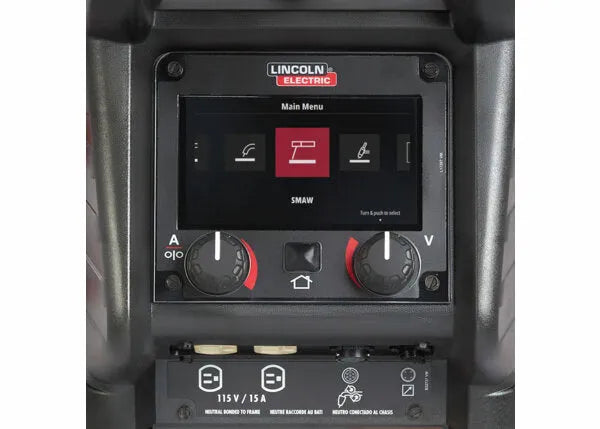

  • 7-Inch Color Display - Enhances communication between operator and machine.
  • Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
  • Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, and pulsed MIG.
  • Stick Settings for 6010 + 6011- Superior performance with cellulosic electrodes.
  • 300 Amp Max Output- Perfect for autobody, light fabrication, education, and more.
  • Memory Recall- Easily save and access memories with the enhanced UI.
  • Synergic Control - Set weld procedures with one control.

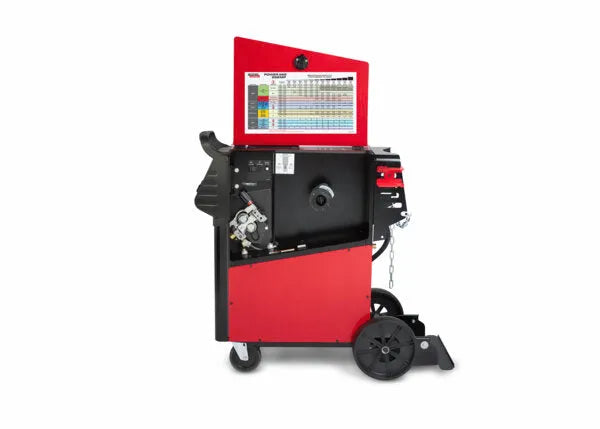

  • Rugged MAXTRAC Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
  • 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.

Specifications

Product Weights & Dimensions
Dimensions (H x W x D) 37.5 in x 18 in x 37.5 in (947.42 mm x 457.2 mm x 952.5 mm)
Net Weight 250 lbs (113.4 kg)
General Specification
Machines Processes Stick (SMAW)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-Cored Self-Shielded (FCAW-S)
Flux-Cored Gas-Shielded (FCAW-G)
Open Circuit Voltage 90V
Input Voltage 208/230/460/575
Input Current 49.1/44/22.1/17.6
Input Hertz 60
Input Phase 1
Input Power 208/230/460/575/1/60
Mode Icon CC/CV
Output Range 5-300A
Polarity DC
Machine Technologies & Connections
Amphenol Pins (type of connector) 12
Work Lead Connector Type Lug
Application
Typical Application Automotive
General Fabrication
Heavy Equipment
Maintenance & Repair
Warranty
Warranty 3 Years
